jlm::llvm::AggregationNode Class Reference

#include <aggregation.hpp>

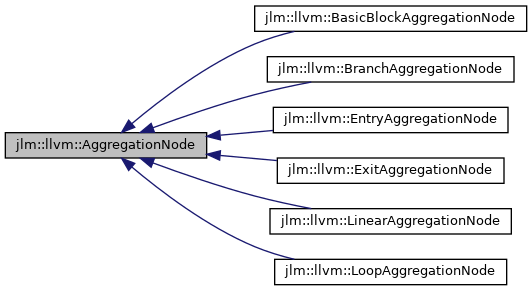

Inheritance diagram for jlm::llvm::AggregationNode:

Collaboration diagram for jlm::llvm::AggregationNode:

Public Member Functions
virtual	~AggregationNode () noexcept
	AggregationNode ()
	AggregationNode (const AggregationNode &other)=delete
	AggregationNode (AggregationNode &&other)=delete
AggregationNode &	operator= (const AggregationNode &other)=delete
AggregationNode &	operator= (AggregationNode &&other)=delete
iterator	begin () noexcept
const_iterator	begin () const noexcept
iterator	end () noexcept
const_iterator	end () const noexcept
size_t	nchildren () const noexcept
void	add_child (std::unique_ptr< AggregationNode > child)
AggregationNode *	child (size_t n) const noexcept
AggregationNode *	parent () noexcept
const AggregationNode *	parent () const noexcept
size_t	index () const noexcept
size_t	nnodes () const noexcept
virtual std::string	debug_string () const =0

Static Public Member Functions
static void	normalize (AggregationNode &node)

Private Types
using	iterator = util::PtrIterator< AggregationNode, std::vector< std::unique_ptr< AggregationNode > >::iterator >
using	const_iterator = util::PtrIterator< const AggregationNode, std::vector< std::unique_ptr< AggregationNode > >::const_iterator >

Private Member Functions
void	remove_children ()

Private Attributes
size_t	index_
AggregationNode *	parent_
std::vector< std::unique_ptr< AggregationNode > >	children_

Detailed Description

Definition at line 18 of file aggregation.hpp.

Member Typedef Documentation

const_iterator

using jlm::llvm::AggregationNode::const_iterator = util::PtrIterator< const AggregationNode, std::vector<std::unique_ptr<AggregationNode> >::const_iterator>

private

Definition at line 22 of file aggregation.hpp.

iterator

using jlm::llvm::AggregationNode::iterator = util::PtrIterator<AggregationNode, std::vector<std::unique_ptr<AggregationNode> >::iterator>

private

Definition at line 20 of file aggregation.hpp.

Constructor & Destructor Documentation

~AggregationNode()

jlm::llvm::AggregationNode::~AggregationNode ( )

virtualdefaultnoexcept

AggregationNode() [1/3]

jlm::llvm::AggregationNode::AggregationNode ( )

inline

Definition at line 29 of file aggregation.hpp.

AggregationNode() [2/3]

jlm::llvm::AggregationNode::AggregationNode ( const AggregationNode &  other )

delete

AggregationNode() [3/3]

jlm::llvm::AggregationNode::AggregationNode ( AggregationNode &&  other )

delete

Member Function Documentation

add_child()

void jlm::llvm::AggregationNode::add_child ( std::unique_ptr< AggregationNode >  child )

inline

Definition at line 75 of file aggregation.hpp.

begin() [1/2]

const_iterator jlm::llvm::AggregationNode::begin ( ) const

inlinenoexcept

Definition at line 51 of file aggregation.hpp.

begin() [2/2]

iterator jlm::llvm::AggregationNode::begin ( )

inlinenoexcept

Definition at line 45 of file aggregation.hpp.

child()

AggregationNode* jlm::llvm::AggregationNode::child ( size_t  n ) const

inlinenoexcept

Definition at line 84 of file aggregation.hpp.

debug_string()

virtual std::string jlm::llvm::AggregationNode::debug_string ( ) const

pure virtual

Implemented in jlm::llvm::LoopAggregationNode, jlm::llvm::BranchAggregationNode, jlm::llvm::LinearAggregationNode, jlm::llvm::BasicBlockAggregationNode, jlm::llvm::ExitAggregationNode, and jlm::llvm::EntryAggregationNode.

end() [1/2]

const_iterator jlm::llvm::AggregationNode::end ( ) const

inlinenoexcept

Definition at line 63 of file aggregation.hpp.

end() [2/2]

iterator jlm::llvm::AggregationNode::end ( )

inlinenoexcept

Definition at line 57 of file aggregation.hpp.

index()

size_t jlm::llvm::AggregationNode::index ( ) const

inlinenoexcept

Definition at line 105 of file aggregation.hpp.

nchildren()

size_t jlm::llvm::AggregationNode::nchildren ( ) const

inlinenoexcept

Definition at line 69 of file aggregation.hpp.

nnodes()

size_t jlm::llvm::AggregationNode::nnodes ( ) const

inlinenoexcept

Return the number of nodes of the entire subtree.

Definition at line 115 of file aggregation.hpp.

normalize()

void jlm::llvm::AggregationNode::normalize ( AggregationNode &  node )

static

Normalizes an aggregation tree

This function normalizes an aggregation tree by reducing nested linear nodes to a single linear node. For example, the tree:

linear

• linear – block – block
• block

is reduced to:

linear

• block
• block
• block

Definition at line 19 of file aggregation.cpp.

operator=() [1/2]

AggregationNode& jlm::llvm::AggregationNode::operator= ( AggregationNode &&  other )

delete

operator=() [2/2]

AggregationNode& jlm::llvm::AggregationNode::operator= ( const AggregationNode &  other )

delete

parent() [1/2]

const AggregationNode* jlm::llvm::AggregationNode::parent ( ) const

inlinenoexcept

Definition at line 98 of file aggregation.hpp.

parent() [2/2]

AggregationNode* jlm::llvm::AggregationNode::parent ( )

inlinenoexcept

Definition at line 91 of file aggregation.hpp.

remove_children()

void jlm::llvm::AggregationNode::remove_children ( )

inlineprivate

Definition at line 151 of file aggregation.hpp.

Member Data Documentation

children_

std::vector<std::unique_ptr<AggregationNode> > jlm::llvm::AggregationNode::children_

private

Definition at line 158 of file aggregation.hpp.

index_

size_t jlm::llvm::AggregationNode::index_

private

Definition at line 156 of file aggregation.hpp.

parent_

AggregationNode* jlm::llvm::AggregationNode::parent_

private

Definition at line 157 of file aggregation.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/ir/aggregation.hpp
• jlm/llvm/ir/aggregation.cpp
