jlm::llvm::ControlFlowGraphNode Class Reference

#include <cfg-node.hpp>

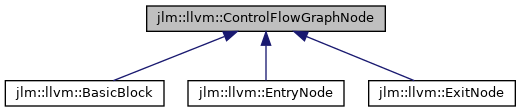

Inheritance diagram for jlm::llvm::ControlFlowGraphNode:

Collaboration diagram for jlm::llvm::ControlFlowGraphNode:

Public Member Functions
virtual	~ControlFlowGraphNode () noexcept
ControlFlowGraph &	cfg () const noexcept
size_t	NumOutEdges () const noexcept
ControlFlowGraphEdge *	OutEdge (size_t n) const
outedge_iterator_range	OutEdges () const
ControlFlowGraphEdge *	add_outedge (ControlFlowGraphNode *sink)
void	remove_outedge (size_t n)
void	remove_outedges ()
size_t	NumInEdges () const noexcept
inedge_iterator_range	InEdges () const
void	divert_inedges (llvm::ControlFlowGraphNode *new_successor)
void	remove_inedges ()
bool	no_predecessor () const noexcept
bool	single_predecessor () const noexcept
bool	no_successor () const noexcept
bool	single_successor () const noexcept
bool	is_branch () const noexcept
bool	has_selfloop_edge () const noexcept

Protected Member Functions
	ControlFlowGraphNode (ControlFlowGraph &cfg)

Private Types
using	inedge_iterator = util::PtrIterator< ControlFlowGraphEdge, std::unordered_set< ControlFlowGraphEdge * >::const_iterator >
using	inedge_iterator_range = util::IteratorRange< inedge_iterator >
using	outedge_iterator = util::PtrIterator< ControlFlowGraphEdge, std::vector< std::unique_ptr< ControlFlowGraphEdge > >::const_iterator >
using	outedge_iterator_range = util::IteratorRange< outedge_iterator >

Private Attributes
ControlFlowGraph &	cfg_
std::vector< std::unique_ptr< ControlFlowGraphEdge > >	outedges_
std::unordered_set< ControlFlowGraphEdge * >	inedges_
friend	ControlFlowGraphEdge

Detailed Description

Definition at line 85 of file cfg-node.hpp.

Member Typedef Documentation

inedge_iterator

using jlm::llvm::ControlFlowGraphNode::inedge_iterator = util:: PtrIterator<ControlFlowGraphEdge, std::unordered_set<ControlFlowGraphEdge *>::const_iterator>

private

Definition at line 87 of file cfg-node.hpp.

inedge_iterator_range

using jlm::llvm::ControlFlowGraphNode::inedge_iterator_range = util::IteratorRange<inedge_iterator>

private

Definition at line 89 of file cfg-node.hpp.

outedge_iterator

using jlm::llvm::ControlFlowGraphNode::outedge_iterator = util::PtrIterator< ControlFlowGraphEdge, std::vector<std::unique_ptr<ControlFlowGraphEdge> >::const_iterator>

private

Definition at line 91 of file cfg-node.hpp.

outedge_iterator_range

using jlm::llvm::ControlFlowGraphNode::outedge_iterator_range = util::IteratorRange<outedge_iterator>

private

Definition at line 94 of file cfg-node.hpp.

Constructor & Destructor Documentation

~ControlFlowGraphNode()

jlm::llvm::ControlFlowGraphNode::~ControlFlowGraphNode ( )

virtualdefaultnoexcept

ControlFlowGraphNode()

jlm::llvm::ControlFlowGraphNode::ControlFlowGraphNode ( ControlFlowGraph &  cfg )

inlineexplicitprotected

Definition at line 100 of file cfg-node.hpp.

Member Function Documentation

add_outedge()

ControlFlowGraphEdge* jlm::llvm::ControlFlowGraphNode::add_outedge ( ControlFlowGraphNode *  sink )

inline

Definition at line 130 of file cfg-node.hpp.

cfg()

ControlFlowGraph& jlm::llvm::ControlFlowGraphNode::cfg ( ) const

inlinenoexcept

Definition at line 106 of file cfg-node.hpp.

divert_inedges()

void jlm::llvm::ControlFlowGraphNode::divert_inedges ( llvm::ControlFlowGraphNode *  new_successor )

inline

Definition at line 171 of file cfg-node.hpp.

has_selfloop_edge()

bool jlm::llvm::ControlFlowGraphNode::has_selfloop_edge ( ) const

noexcept

Definition at line 113 of file cfg-node.cpp.

InEdges()

inedge_iterator_range jlm::llvm::ControlFlowGraphNode::InEdges ( ) const

inline

Definition at line 163 of file cfg-node.hpp.

is_branch()

bool jlm::llvm::ControlFlowGraphNode::is_branch ( ) const

inlinenoexcept

Definition at line 196 of file cfg-node.hpp.

no_predecessor()

bool jlm::llvm::ControlFlowGraphNode::no_predecessor ( ) const

noexcept

Definition at line 69 of file cfg-node.cpp.

no_successor()

bool jlm::llvm::ControlFlowGraphNode::no_successor ( ) const

noexcept

Definition at line 91 of file cfg-node.cpp.

NumInEdges()

size_t jlm::llvm::ControlFlowGraphNode::NumInEdges ( ) const

noexcept

Definition at line 63 of file cfg-node.cpp.

NumOutEdges()

size_t jlm::llvm::ControlFlowGraphNode::NumOutEdges ( ) const

noexcept

Definition at line 46 of file cfg-node.cpp.

OutEdge()

ControlFlowGraphEdge* jlm::llvm::ControlFlowGraphNode::OutEdge ( size_t  n ) const

inline

Definition at line 115 of file cfg-node.hpp.

OutEdges()

outedge_iterator_range jlm::llvm::ControlFlowGraphNode::OutEdges ( ) const

inline

Definition at line 122 of file cfg-node.hpp.

remove_inedges()

void jlm::llvm::ControlFlowGraphNode::remove_inedges

(

)

Definition at line 52 of file cfg-node.cpp.

remove_outedge()

void jlm::llvm::ControlFlowGraphNode::remove_outedge ( size_t  n )

inline

Definition at line 138 of file cfg-node.hpp.

remove_outedges()

void jlm::llvm::ControlFlowGraphNode::remove_outedges ( )

inline

Definition at line 153 of file cfg-node.hpp.

single_predecessor()

bool jlm::llvm::ControlFlowGraphNode::single_predecessor ( ) const

noexcept

Definition at line 75 of file cfg-node.cpp.

single_successor()

bool jlm::llvm::ControlFlowGraphNode::single_successor ( ) const

noexcept

Definition at line 97 of file cfg-node.cpp.

Member Data Documentation

cfg_

ControlFlowGraph& jlm::llvm::ControlFlowGraphNode::cfg_

private

Definition at line 205 of file cfg-node.hpp.

ControlFlowGraphEdge

friend jlm::llvm::ControlFlowGraphNode::ControlFlowGraphEdge

private

Definition at line 209 of file cfg-node.hpp.

inedges_

std::unordered_set<ControlFlowGraphEdge *> jlm::llvm::ControlFlowGraphNode::inedges_

private

Definition at line 207 of file cfg-node.hpp.

outedges_

std::vector<std::unique_ptr<ControlFlowGraphEdge> > jlm::llvm::ControlFlowGraphNode::outedges_

private

Definition at line 206 of file cfg-node.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/ir/cfg-node.hpp
• jlm/llvm/ir/cfg-node.cpp
