jlm::llvm::FunctionNode Class Reference

#include <ipgraph.hpp>

Inheritance diagram for jlm::llvm::FunctionNode:

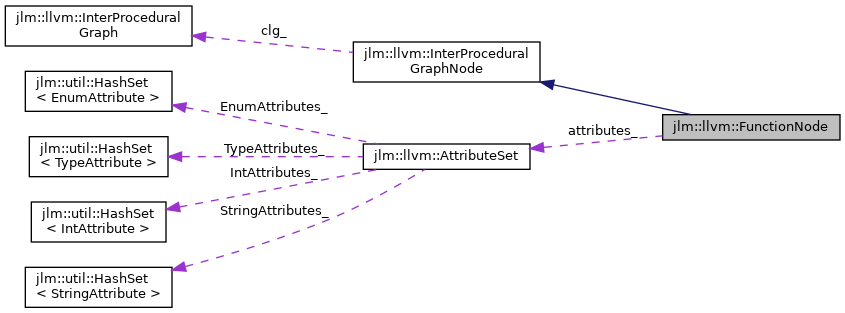

Collaboration diagram for jlm::llvm::FunctionNode:

Public Member Functions
	~FunctionNode () noexcept override
llvm::ControlFlowGraph *	cfg () const noexcept
const jlm::rvsdg::Type &	type () const noexcept override
std::shared_ptr< const jlm::rvsdg::Type >	Type () const override
const rvsdg::FunctionType &	fcttype () const noexcept
const std::shared_ptr< const rvsdg::FunctionType > &	GetFunctionType () const noexcept
const llvm::Linkage &	linkage () const noexcept override
const std::string &	name () const noexcept override
bool	hasBody () const noexcept override
const AttributeSet &	attributes () const noexcept
void	add_cfg (std::unique_ptr< ControlFlowGraph > cfg)
	Adds cfg to the function node. If the function node already has a CFG, then it is replaced with cfg. More...
Public Member Functions inherited from jlm::llvm::InterProceduralGraphNode
virtual	~InterProceduralGraphNode () noexcept
InterProceduralGraph &	clg () const noexcept
void	add_dependency (const InterProceduralGraphNode *dep)
const_iterator	begin () const
const_iterator	end () const
bool	is_selfrecursive () const noexcept

Static Public Member Functions
static FunctionNode *	create (InterProceduralGraph &ipg, const std::string &name, std::shared_ptr< const rvsdg::FunctionType > type, const llvm::Linkage &linkage, const AttributeSet &attributes)
static FunctionNode *	create (InterProceduralGraph &ipg, const std::string &name, std::shared_ptr< const rvsdg::FunctionType > type, const llvm::Linkage &linkage)

Private Member Functions
	FunctionNode (InterProceduralGraph &clg, const std::string &name, std::shared_ptr< const rvsdg::FunctionType > type, const llvm::Linkage &linkage, const AttributeSet &attributes)

Private Attributes
std::shared_ptr< const rvsdg::FunctionType >	FunctionType_
std::string	name_
llvm::Linkage	linkage_
AttributeSet	attributes_
std::unique_ptr< ControlFlowGraph >	cfg_

Additional Inherited Members
Protected Member Functions inherited from jlm::llvm::InterProceduralGraphNode
	InterProceduralGraphNode (InterProceduralGraph &clg)

Detailed Description

Definition at line 142 of file ipgraph.hpp.

Constructor & Destructor Documentation

~FunctionNode()

jlm::llvm::FunctionNode::~FunctionNode ( )

overridedefaultnoexcept

FunctionNode()

jlm::llvm::FunctionNode::FunctionNode ( InterProceduralGraph &  clg, const std::string &  name, std::shared_ptr< const rvsdg::FunctionType >  type, const llvm::Linkage &  linkage, const AttributeSet &  attributes  )

inlineprivate

Definition at line 148 of file ipgraph.hpp.

Member Function Documentation

add_cfg()

void jlm::llvm::FunctionNode::add_cfg

(

std::unique_ptr< ControlFlowGraph >

cfg

)

Adds cfg to the function node. If the function node already has a CFG, then it is replaced with cfg.

Definition at line 129 of file ipgraph.cpp.

attributes()

const AttributeSet& jlm::llvm::FunctionNode::attributes ( ) const

inlinenoexcept

Definition at line 196 of file ipgraph.hpp.

cfg()

llvm::ControlFlowGraph* jlm::llvm::FunctionNode::cfg ( ) const

inlinenoexcept

Definition at line 163 of file ipgraph.hpp.

create() [1/2]

static FunctionNode* jlm::llvm::FunctionNode::create ( InterProceduralGraph &  ipg, const std::string &  name, std::shared_ptr< const rvsdg::FunctionType >  type, const llvm::Linkage &  linkage  )

inlinestatic

Definition at line 224 of file ipgraph.hpp.

create() [2/2]

static FunctionNode* jlm::llvm::FunctionNode::create ( InterProceduralGraph &  ipg, const std::string &  name, std::shared_ptr< const rvsdg::FunctionType >  type, const llvm::Linkage &  linkage, const AttributeSet &  attributes  )

inlinestatic

Definition at line 209 of file ipgraph.hpp.

fcttype()

const rvsdg::FunctionType& jlm::llvm::FunctionNode::fcttype ( ) const

inlinenoexcept

Definition at line 175 of file ipgraph.hpp.

GetFunctionType()

const std::shared_ptr<const rvsdg::FunctionType>& jlm::llvm::FunctionNode::GetFunctionType ( ) const

inlinenoexcept

Definition at line 181 of file ipgraph.hpp.

hasBody()

bool jlm::llvm::FunctionNode::hasBody ( ) const

overridevirtualnoexcept

Implements jlm::llvm::InterProceduralGraphNode.

Definition at line 123 of file ipgraph.cpp.

linkage()

const llvm::Linkage & jlm::llvm::FunctionNode::linkage ( ) const

overridevirtualnoexcept

Implements jlm::llvm::InterProceduralGraphNode.

Definition at line 117 of file ipgraph.cpp.

name()

const std::string & jlm::llvm::FunctionNode::name ( ) const

overridevirtualnoexcept

Implements jlm::llvm::InterProceduralGraphNode.

Definition at line 99 of file ipgraph.cpp.

type()

const jlm::rvsdg::Type & jlm::llvm::FunctionNode::type ( ) const

overridevirtualnoexcept

Implements jlm::llvm::InterProceduralGraphNode.

Definition at line 105 of file ipgraph.cpp.

Type()

std::shared_ptr< const jlm::rvsdg::Type > jlm::llvm::FunctionNode::Type ( ) const

overridevirtual

Implements jlm::llvm::InterProceduralGraphNode.

Definition at line 111 of file ipgraph.cpp.

Member Data Documentation

attributes_

AttributeSet jlm::llvm::FunctionNode::attributes_

private

Definition at line 237 of file ipgraph.hpp.

cfg_

std::unique_ptr<ControlFlowGraph> jlm::llvm::FunctionNode::cfg_

private

Definition at line 238 of file ipgraph.hpp.

FunctionType_

std::shared_ptr<const rvsdg::FunctionType> jlm::llvm::FunctionNode::FunctionType_

private

Definition at line 234 of file ipgraph.hpp.

linkage_

llvm::Linkage jlm::llvm::FunctionNode::linkage_

private

Definition at line 236 of file ipgraph.hpp.

name_

std::string jlm::llvm::FunctionNode::name_

private

Definition at line 235 of file ipgraph.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/ir/ipgraph.hpp
• jlm/llvm/ir/ipgraph.cpp
