#include <AliasAnalysis.hpp>

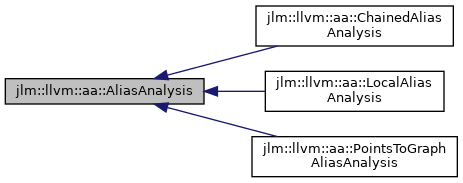

Inheritance diagram for jlm::llvm::aa::AliasAnalysis:

[legend]

Public Types
enum	AliasQueryResponse { NoAlias , MayAlias , MustAlias }

Public Member Functions
	AliasAnalysis ()

virtual	~AliasAnalysis () noexcept

virtual std::string	ToString () const =0

virtual AliasQueryResponse	Query (const rvsdg::Output &p1, size_t s1, const rvsdg::Output &p2, size_t s2)=0

Detailed Description

Interface for making alias analysis queries about pairs of pointers p1 and p2. Each pointer must also have an associated compile time byte size, s1 and s2. The analysis response gives guarantees about the possibility of [p1, p1+s1) and [p2, p2+s2) overlapping.

If p1 and p2 are both defined within a lambda region, it must be the same lambda region. When both pointers are defined within a region, the alias query is made relative to an execution of that region. Thus, a NoAlias response does not make any guarantees about aliasing between different executions of the region.

Definition at line 25 of file AliasAnalysis.hpp.

Member Enumeration Documentation

◆ AliasQueryResponse

enum jlm::llvm::aa::AliasAnalysis::AliasQueryResponse

The possible responses of an alias query about two memory regions (p1, s1) and (p2, s2)

Enumerator
NoAlias
MayAlias
MustAlias

Definition at line 31 of file AliasAnalysis.hpp.

Constructor & Destructor Documentation

◆ AliasAnalysis()

jlm::llvm::aa::AliasAnalysis::AliasAnalysis ( )

default

◆ ~AliasAnalysis()

jlm::llvm::aa::AliasAnalysis::~AliasAnalysis ( )

virtualdefaultnoexcept

Member Function Documentation

◆ Query()

virtual AliasQueryResponse jlm::llvm::aa::AliasAnalysis::Query	(	const rvsdg::Output &	p1,
		size_t	s1,
		const rvsdg::Output &	p2,
		size_t	s2
	)

pure virtual

Queries the alias analysis about two memory regions represented as pointer + size pairs.

Parameters

p1	the first pointer value
s1	the byte size of the first pointer access
p2	the second pointer value
s2	the byte size of the second pointer access

Returns: the result of the alias query

Implemented in jlm::llvm::aa::PointsToGraphAliasAnalysis, jlm::llvm::aa::LocalAliasAnalysis, and jlm::llvm::aa::ChainedAliasAnalysis.

◆ ToString()

virtual std::string jlm::llvm::aa::AliasAnalysis::ToString ( ) const
