jlm::rvsdg::TransformationSequence Class Reference

#include <Transformation.hpp>

Inheritance diagram for jlm::rvsdg::TransformationSequence:

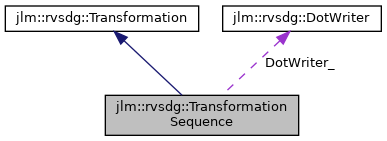

Collaboration diagram for jlm::rvsdg::TransformationSequence:

Classes
class	Statistics

Public Member Functions
	~TransformationSequence () noexcept override
	TransformationSequence (std::vector< std::shared_ptr< Transformation >> transformations, DotWriter &dotWriter, const bool dumpRvsdgDotGraphs)
void	Run (RvsdgModule &rvsdgModule, util::StatisticsCollector &statisticsCollector) override
	Perform RVSDG transformations. More...
Public Member Functions inherited from jlm::rvsdg::Transformation
virtual	~Transformation () noexcept
	Transformation (std::string_view Name)
const std::string_view &	GetName () const noexcept
void	Run (RvsdgModule &module)
	Perform RVSDG transformation. More...

Static Public Member Functions
static void	CreateAndRun (RvsdgModule &rvsdgModule, util::StatisticsCollector &statisticsCollector, std::vector< std::shared_ptr< Transformation >> transformations, DotWriter &dotWriter, const bool dumpRvsdgDotGraphs)
	Creates a transformation sequence and invokes its Run() method. More...

Private Member Functions
void	DumpDotGraphs (RvsdgModule &rvsdgModule, const util::FilePath &filePath, const std::string &passName, size_t numPass) const

Private Attributes
DotWriter &	DotWriter_
bool	DumpRvsdgDotGraphs_
std::vector< std::shared_ptr< Transformation > >	Transformations_

Detailed Description

Sequentially applies a list of RVSDG transformations.

Definition at line 71 of file Transformation.hpp.

Constructor & Destructor Documentation

~TransformationSequence()

jlm::rvsdg::TransformationSequence::~TransformationSequence ( )

overridedefaultnoexcept

TransformationSequence()

jlm::rvsdg::TransformationSequence::TransformationSequence ( std::vector< std::shared_ptr< Transformation >>  transformations, DotWriter &  dotWriter, const bool  dumpRvsdgDotGraphs  )

inlineexplicit

Definition at line 78 of file Transformation.hpp.

Member Function Documentation

CreateAndRun()

static void jlm::rvsdg::TransformationSequence::CreateAndRun ( RvsdgModule &  rvsdgModule, util::StatisticsCollector &  statisticsCollector, std::vector< std::shared_ptr< Transformation >>  transformations, DotWriter &  dotWriter, const bool  dumpRvsdgDotGraphs  )

inlinestatic

Creates a transformation sequence and invokes its Run() method.

Parameters

rvsdgModule	RVSDG module the transformation is performed on.
statisticsCollector	Statistics collector for collecting transformation statistics.
transformations	The transformations that are sequentially applied to rvsdgModule.
dotWriter	The DOT writer for dumping the RVSDG graphs.
dumpRvsdgDotGraphs	Determines whether to dump the RVSDG graphs.

Definition at line 107 of file Transformation.hpp.

DumpDotGraphs()

void jlm::rvsdg::TransformationSequence::DumpDotGraphs ( RvsdgModule &  rvsdgModule, const util::FilePath &  filePath, const std::string &  passName, size_t  numPass  ) const

private

Definition at line 134 of file Transformation.cpp.

Run()

void jlm::rvsdg::TransformationSequence::Run ( RvsdgModule &  rvsdgModule, util::StatisticsCollector &  statisticsCollector  )

overridevirtual

Perform RVSDG transformations.

Parameters

rvsdgModule	RVSDG module the transformation is performed on.
statisticsCollector	Statistics collector for collecting transformation statistics.

Implements jlm::rvsdg::Transformation.

Definition at line 79 of file Transformation.cpp.

Member Data Documentation

DotWriter_

DotWriter& jlm::rvsdg::TransformationSequence::DotWriter_

private

Definition at line 129 of file Transformation.hpp.

DumpRvsdgDotGraphs_

bool jlm::rvsdg::TransformationSequence::DumpRvsdgDotGraphs_

private

Definition at line 130 of file Transformation.hpp.

Transformations_

std::vector<std::shared_ptr<Transformation> > jlm::rvsdg::TransformationSequence::Transformations_

private

Definition at line 131 of file Transformation.hpp.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/Transformation.hpp
• jlm/rvsdg/Transformation.cpp
