jlm::util::Statistics Class Reference

Statistics Interface. More...

#include <Statistics.hpp>

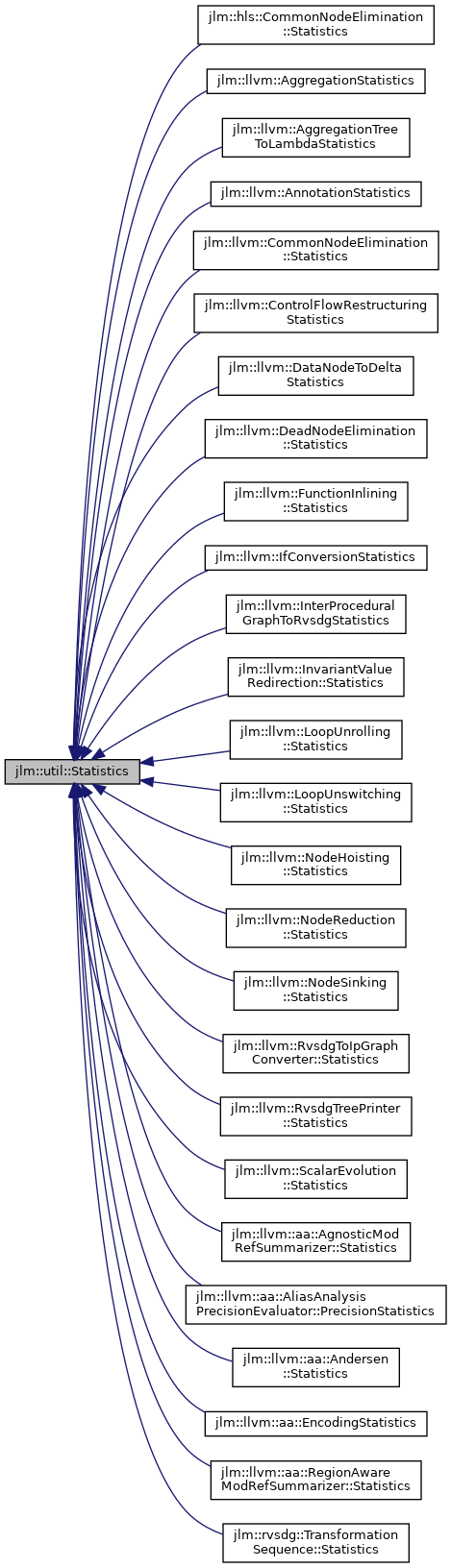

Inheritance diagram for jlm::util::Statistics:
Inheritance graph
[legend]
Collaboration diagram for jlm::util::Statistics:
Collaboration graph
[legend]

Classes

struct  Label


Public Types

enum class  Id {
  FirstEnumValue , AggregateAllocaSplitting , Aggregation , AgnosticModRefSummarizer ,
  AliasAnalysisPrecisionEvaluation , AndersenAnalysis , Annotation , CommonNodeElimination ,
  ControlFlowRecovery , DataNodeToDelta , DeadNodeElimination , FunctionInlining ,
  IfConversion , InvariantValueRedirection , JlmToRvsdgConversion , LoopStrengthReduction ,
  LoopUnrolling , LoopUnswitching , MemoryStateEncoder , PullNodes ,
  PushNodes , ReduceNodes , RegionAwareModRefSummarizer , RvsdgConstruction ,
  RvsdgDestruction , RvsdgOptimization , RvsdgTreePrinter , ScalarEvolution ,
  StoreValueForwarding , LastEnumValue
}

using Measurement = std::variant< std::string, int64_t, uint64_t, double >

using MeasurementList = std::list< std::pair< std::string, Measurement > >

using TimerList = std::list< std::pair< std::string, util::Timer > >


Public Member Functions

virtual ~Statistics ()

 Statistics (const Statistics::Id &statisticsId, util::FilePath sourceFile)

Statistics::Id GetId () const noexcept

std::string_view GetName () const

const util::FilePath & GetSourceFile () const

std::string Serialize (char fieldSeparator, char nameValueSeparator) const

bool HasMeasurement (const std::string &name) const noexcept

const Measurement & GetMeasurement (const std::string &name) const

template<typename T >
const T & GetMeasurementValue (const std::string &name) const

IteratorRange< MeasurementList::const_iterator > GetMeasurements () const

bool HasTimer (const std::string &name) const noexcept

size_t GetTimerElapsedNanoseconds (const std::string &name) const

IteratorRange< TimerList::const_iterator > GetTimers () const


Protected Member Functions

template<typename T >
void AddMeasurement (std::string name, T value)

util::Timer & AddTimer (std::string name)

util::Timer & GetTimer (const std::string &name)

const util::Timer & GetTimer (const std::string &name) const


Private Attributes

Statistics::Id StatisticsId_

util::FilePath SourceFile_

MeasurementList Measurements_

TimerList Timers_


Detailed Description

Statistics Interface.

Definition at line 30 of file Statistics.hpp.

Member Typedef Documentation

◆ Measurement

using jlm::util::Statistics::Measurement = std::variant<std::string, int64_t, uint64_t, double>

Definition at line 69 of file Statistics.hpp.

◆ MeasurementList

using jlm::util::Statistics::MeasurementList = std::list<std::pair<std::string, Measurement> >

Definition at line 71 of file Statistics.hpp.

◆ TimerList

using jlm::util::Statistics::TimerList = std::list<std::pair<std::string, util::Timer> >

Definition at line 72 of file Statistics.hpp.

Member Enumeration Documentation

◆ Id

enum jlm::util::Statistics::Id
strong
Enumerator
FirstEnumValue
AggregateAllocaSplitting
Aggregation
AgnosticModRefSummarizer
AliasAnalysisPrecisionEvaluation
AndersenAnalysis
Annotation
CommonNodeElimination
ControlFlowRecovery
DataNodeToDelta
DeadNodeElimination
FunctionInlining
IfConversion
InvariantValueRedirection
JlmToRvsdgConversion
LoopStrengthReduction
LoopUnrolling
LoopUnswitching
MemoryStateEncoder
PullNodes
PushNodes
ReduceNodes
RegionAwareModRefSummarizer
RvsdgConstruction
RvsdgDestruction
RvsdgOptimization
RvsdgTreePrinter
ScalarEvolution
StoreValueForwarding
LastEnumValue

Definition at line 33 of file Statistics.hpp.

Constructor & Destructor Documentation

◆ ~Statistics()

jlm::util::Statistics::~Statistics ( )
virtualdefault

Reimplemented in jlm::llvm::LoopUnrolling::Statistics, jlm::llvm::StoreValueForwarding::Statistics, jlm::llvm::RvsdgTreePrinter::Statistics, jlm::llvm::NodeHoisting::Statistics, jlm::llvm::NodeSinking::Statistics, jlm::llvm::LoopUnswitching::Statistics, jlm::llvm::InvariantValueRedirection::Statistics, jlm::llvm::FunctionInlining::Statistics, jlm::llvm::DeadNodeElimination::Statistics, jlm::llvm::CommonNodeElimination::Statistics, jlm::llvm::aa::RegionAwareModRefSummarizer::Statistics, jlm::llvm::aa::Andersen::Statistics, jlm::llvm::RvsdgToIpGraphConverter::Statistics, jlm::hls::CommonNodeElimination::Statistics, jlm::rvsdg::TransformationSequence::Statistics, jlm::llvm::ScalarEvolution::Statistics, jlm::llvm::NodeReduction::Statistics, jlm::llvm::LoopStrengthReduction::Statistics, and jlm::llvm::AggregateAllocaSplitting::Statistics.

◆ Statistics()

jlm::util::Statistics::Statistics ( const Statistics::Id &  statisticsId,
util::FilePath  sourceFile
)
inline

Definition at line 76 of file Statistics.hpp.

Member Function Documentation

◆ AddMeasurement()

template<typename T >
void jlm::util::Statistics::AddMeasurement ( std::string  name,
T  value
)
inlineprotected

Adds a measurement, identified by name, with the given value. Requires that the measurement doesn't already exist.

Template Parameters
Tthe type of the measurement, must be one of: std::string, int64_t, uint64_t, double

Definition at line 177 of file Statistics.hpp.

◆ AddTimer()

util::Timer & jlm::util::Statistics::AddTimer ( std::string  name)
protected

Creates a new timer with the given name. Requires that the timer does not already exist.

Returns
a reference to the timer

Definition at line 158 of file Statistics.cpp.

◆ GetId()

Statistics::Id jlm::util::Statistics::GetId ( ) const
inlinenoexcept

Definition at line 82 of file Statistics.hpp.

◆ GetMeasurement()

const Statistics::Measurement & jlm::util::Statistics::GetMeasurement ( const std::string &  name) const

Gets the measurement with the given name, it must exist.

Returns
a reference to the measurement.

Definition at line 113 of file Statistics.cpp.

◆ GetMeasurements()

IteratorRange< Statistics::MeasurementList::const_iterator > jlm::util::Statistics::GetMeasurements ( ) const

Retrieves the full list of measurements

Definition at line 122 of file Statistics.cpp.

◆ GetMeasurementValue()

template<typename T >
const T& jlm::util::Statistics::GetMeasurementValue ( const std::string &  name) const
inline

Gets the value of the measurement with the given name. Requires the measurement to exist and have the given type

Template Parameters
T.
Returns
the measurement's value.

Definition at line 133 of file Statistics.hpp.

◆ GetName()

std::string_view jlm::util::Statistics::GetName ( ) const
Returns
a string identifying the type of this Statistics instance

Definition at line 60 of file Statistics.cpp.

◆ GetSourceFile()

const util::FilePath & jlm::util::Statistics::GetSourceFile ( ) const
Returns
the source file that was worked on while capturing these statistics

Definition at line 66 of file Statistics.cpp.

◆ GetTimer() [1/2]

util::Timer & jlm::util::Statistics::GetTimer ( const std::string &  name)
protected

Retrieves the timer with the given name. Requires that the timer already exists.

Returns
a reference to the timer

Definition at line 137 of file Statistics.cpp.

◆ GetTimer() [2/2]

const util::Timer & jlm::util::Statistics::GetTimer ( const std::string &  name) const
protected

Definition at line 146 of file Statistics.cpp.

◆ GetTimerElapsedNanoseconds()

size_t jlm::util::Statistics::GetTimerElapsedNanoseconds ( const std::string &  name) const
inline

Retrieves the measured time passed on the timer with the given name. Requires the timer to exist, and not currently be running.

Returns
the timer's elapsed time in nanoseconds

Definition at line 158 of file Statistics.hpp.

◆ GetTimers()

IteratorRange< Statistics::TimerList::const_iterator > jlm::util::Statistics::GetTimers ( ) const

Retrieves the full list of timers

Definition at line 152 of file Statistics.cpp.

◆ HasMeasurement()

bool jlm::util::Statistics::HasMeasurement ( const std::string &  name) const
noexcept

Checks if a measurement with the given name exists.

Returns
true if the measurement exists, false otherwise.

Definition at line 104 of file Statistics.cpp.

◆ HasTimer()

bool jlm::util::Statistics::HasTimer ( const std::string &  name) const
noexcept

Checks if a timer with the given name exists.

Returns
true if the timer exists, false otherwise.

Definition at line 128 of file Statistics.cpp.

◆ Serialize()

std::string jlm::util::Statistics::Serialize ( char  fieldSeparator,
char  nameValueSeparator
) const

Converts the Statistics instance to a string containing all information it has. Requires all timers to be stopped.

Parameters
fieldSeparatorSeparation character used between different measurements and/or timers.
nameValueSeparatorSeparation character used between the name and value of a measurement or timer.
Returns
a full serialized description of the Statistic instance

Definition at line 72 of file Statistics.cpp.

Member Data Documentation

◆ Measurements_

MeasurementList jlm::util::Statistics::Measurements_
private

Definition at line 258 of file Statistics.hpp.

◆ SourceFile_

util::FilePath jlm::util::Statistics::SourceFile_
private

Definition at line 256 of file Statistics.hpp.

◆ StatisticsId_

Statistics::Id jlm::util::Statistics::StatisticsId_
private

Definition at line 255 of file Statistics.hpp.

◆ Timers_

TimerList jlm::util::Statistics::Timers_
private

Definition at line 259 of file Statistics.hpp.

The documentation for this class was generated from the following files:
