#include <cfg.hpp>

Inheritance diagram for jlm::llvm::ExitNode:

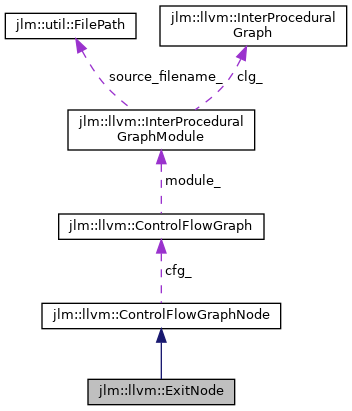

Collaboration diagram for jlm::llvm::ExitNode:

[legend]

Public Member Functions
	~ExitNode () noexcept override

	ExitNode (ControlFlowGraph &cfg)

size_t	nresults () const noexcept

const Variable *	result (size_t index) const

void	append_result (const Variable *v)

const std::vector< const Variable * >	results () const noexcept

Public Member Functions inherited from jlm::llvm::ControlFlowGraphNode
virtual	~ControlFlowGraphNode () noexcept

ControlFlowGraph &	cfg () const noexcept

size_t	NumOutEdges () const noexcept

ControlFlowGraphEdge *	OutEdge (size_t n) const

outedge_iterator_range	OutEdges () const

ControlFlowGraphEdge *	add_outedge (ControlFlowGraphNode *sink)

void	remove_outedge (size_t n)

void	remove_outedges ()

size_t	NumInEdges () const noexcept

inedge_iterator_range	InEdges () const

void	divert_inedges (llvm::ControlFlowGraphNode *new_successor)

void	remove_inedges ()

bool	no_predecessor () const noexcept

bool	single_predecessor () const noexcept

bool	no_successor () const noexcept

bool	single_successor () const noexcept

bool	is_branch () const noexcept

bool	has_selfloop_edge () const noexcept

Private Attributes
std::vector< const Variable * >	results_

Additional Inherited Members
Protected Member Functions inherited from jlm::llvm::ControlFlowGraphNode
	ControlFlowGraphNode (ControlFlowGraph &cfg)

Detailed Description

Definition at line 119 of file cfg.hpp.

Constructor & Destructor Documentation

◆ ~ExitNode()

jlm::llvm::ExitNode::~ExitNode ( )

overridedefaultnoexcept

◆ ExitNode()

jlm::llvm::ExitNode::ExitNode ( ControlFlowGraph & cfg )

inlineexplicit

Definition at line 124 of file cfg.hpp.

Member Function Documentation

◆ append_result()

void jlm::llvm::ExitNode::append_result ( const Variable * v )

inline

Definition at line 142 of file cfg.hpp.

◆ nresults()

size_t jlm::llvm::ExitNode::nresults ( ) const

inlinenoexcept

Definition at line 129 of file cfg.hpp.

◆ result()

const Variable* jlm::llvm::ExitNode::result ( size_t index ) const

inline

Definition at line 135 of file cfg.hpp.

◆ results()

const std::vector<const Variable *> jlm::llvm::ExitNode::results ( ) const

inlinenoexcept

Definition at line 148 of file cfg.hpp.

Member Data Documentation

◆ results_

std::vector<const Variable *> jlm::llvm::ExitNode::results_

private

Definition at line 154 of file cfg.hpp.

The documentation for this class was generated from the following files:

jlm/llvm/ir/cfg.hpp
jlm/llvm/ir/cfg.cpp
