jlm::rvsdg::BinaryOperation Class Reference

#include <binary.hpp>

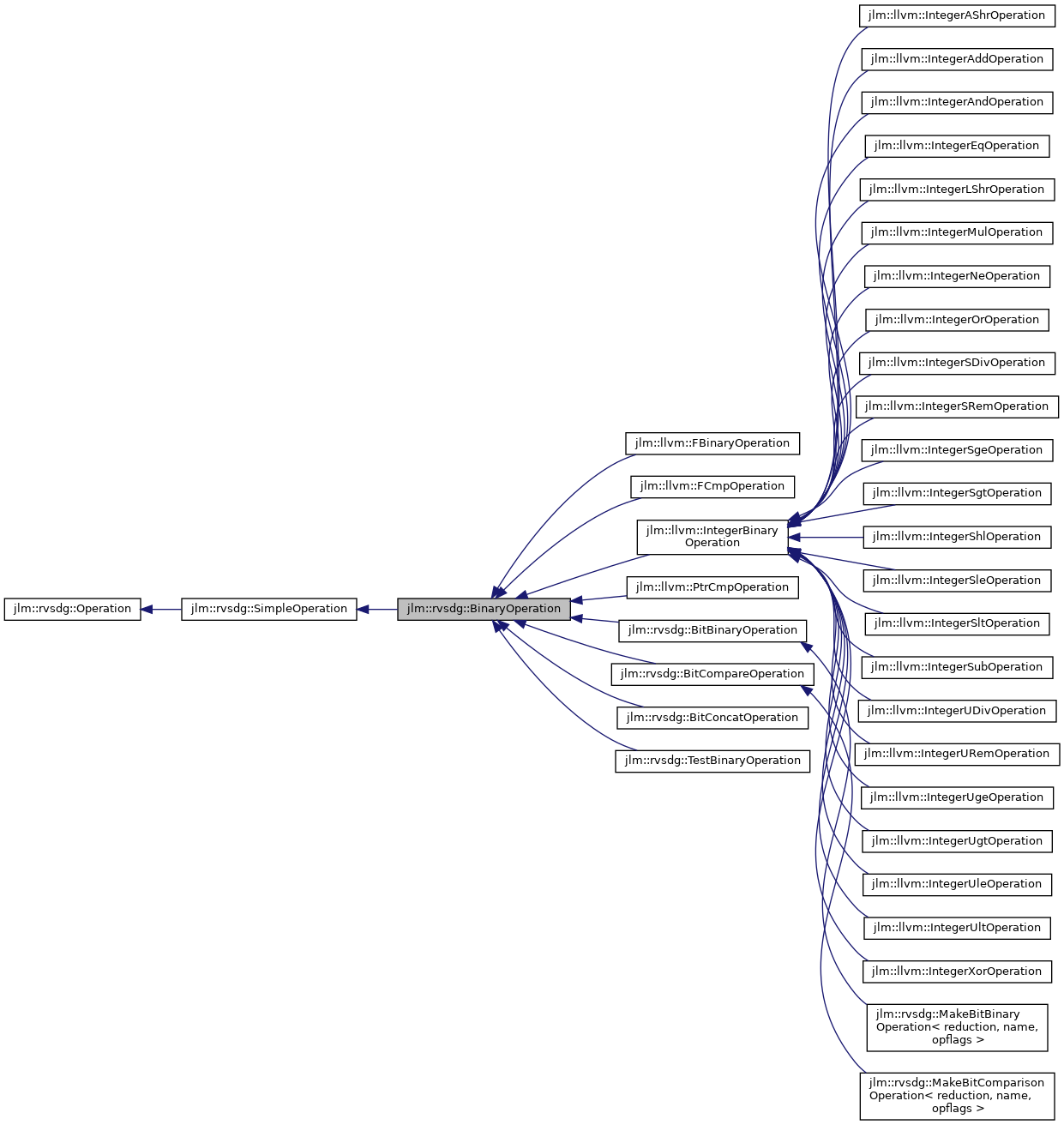

Inheritance diagram for jlm::rvsdg::BinaryOperation:

Collaboration diagram for jlm::rvsdg::BinaryOperation:

Public Types
enum class	flags { none = 0 , associative = 1 , commutative = 2 }

Public Member Functions
	~BinaryOperation () noexcept override
	BinaryOperation (const std::vector< std::shared_ptr< const jlm::rvsdg::Type > > operands, std::shared_ptr< const jlm::rvsdg::Type > result)
virtual binop_reduction_path_t	can_reduce_operand_pair (const jlm::rvsdg::Output *op1, const jlm::rvsdg::Output *op2) const noexcept=0
virtual jlm::rvsdg::Output *	reduce_operand_pair (binop_reduction_path_t path, jlm::rvsdg::Output *op1, jlm::rvsdg::Output *op2) const =0
virtual BinaryOperation::flags	flags () const noexcept
bool	is_associative () const noexcept
bool	is_commutative () const noexcept
Public Member Functions inherited from jlm::rvsdg::SimpleOperation
	~SimpleOperation () noexcept override
	SimpleOperation (std::vector< std::shared_ptr< const jlm::rvsdg::Type > > operands, std::vector< std::shared_ptr< const jlm::rvsdg::Type > > results)
size_t	narguments () const noexcept
const std::shared_ptr< const rvsdg::Type > &	argument (size_t index) const noexcept
size_t	nresults () const noexcept
const std::shared_ptr< const rvsdg::Type > &	result (size_t index) const noexcept
Public Member Functions inherited from jlm::rvsdg::Operation
virtual	~Operation () noexcept
virtual bool	operator== (const Operation &other) const noexcept=0
virtual std::string	debug_string () const =0
virtual std::unique_ptr< Operation >	copy () const =0
bool	operator!= (const Operation &other) const noexcept

Detailed Description

Binary operation taking two arguments (with well-defined reduction for more operands if operator is associative).

Definition at line 25 of file binary.hpp.

Member Enumeration Documentation

flags

enum class jlm::rvsdg::BinaryOperation::flags

strong

Enumerator
none
associative
commutative

Definition at line 28 of file binary.hpp.

Constructor & Destructor Documentation

~BinaryOperation()

BinaryOperation::~BinaryOperation ( )

overridedefaultnoexcept

BinaryOperation()

jlm::rvsdg::BinaryOperation::BinaryOperation ( const std::vector< std::shared_ptr< const jlm::rvsdg::Type > >  operands, std::shared_ptr< const jlm::rvsdg::Type >  result  )

inline

Definition at line 37 of file binary.hpp.

Member Function Documentation

can_reduce_operand_pair()

virtual binop_reduction_path_t jlm::rvsdg::BinaryOperation::can_reduce_operand_pair ( const jlm::rvsdg::Output *  op1, const jlm::rvsdg::Output *  op2  ) const

pure virtualnoexcept

Implemented in jlm::rvsdg::BitBinaryOperation, jlm::rvsdg::BitCompareOperation, jlm::rvsdg::BitConcatOperation, jlm::llvm::PtrCmpOperation, jlm::llvm::FCmpOperation, jlm::llvm::FBinaryOperation, BinaryOperation, jlm::rvsdg::TestBinaryOperation, jlm::llvm::IntegerAddOperation, jlm::llvm::IntegerSubOperation, jlm::llvm::IntegerMulOperation, jlm::llvm::IntegerSDivOperation, jlm::llvm::IntegerUDivOperation, jlm::llvm::IntegerSRemOperation, jlm::llvm::IntegerURemOperation, jlm::llvm::IntegerAShrOperation, jlm::llvm::IntegerShlOperation, jlm::llvm::IntegerLShrOperation, jlm::llvm::IntegerAndOperation, jlm::llvm::IntegerOrOperation, jlm::llvm::IntegerXorOperation, jlm::llvm::IntegerEqOperation, jlm::llvm::IntegerNeOperation, jlm::llvm::IntegerSgeOperation, jlm::llvm::IntegerSgtOperation, jlm::llvm::IntegerSleOperation, jlm::llvm::IntegerSltOperation, jlm::llvm::IntegerUgeOperation, jlm::llvm::IntegerUgtOperation, jlm::llvm::IntegerUleOperation, and jlm::llvm::IntegerUltOperation.

flags()

enum BinaryOperation::flags BinaryOperation::flags ( ) const

virtualnoexcept

Reimplemented in jlm::llvm::IntegerAddOperation, jlm::llvm::IntegerSubOperation, jlm::llvm::IntegerMulOperation, jlm::llvm::IntegerSDivOperation, jlm::llvm::IntegerUDivOperation, jlm::llvm::IntegerSRemOperation, jlm::llvm::IntegerURemOperation, jlm::llvm::IntegerAShrOperation, jlm::llvm::IntegerShlOperation, jlm::llvm::IntegerLShrOperation, jlm::llvm::IntegerAndOperation, jlm::llvm::IntegerOrOperation, jlm::llvm::IntegerXorOperation, jlm::llvm::IntegerEqOperation, jlm::llvm::IntegerNeOperation, jlm::llvm::IntegerSgeOperation, jlm::llvm::IntegerSgtOperation, jlm::llvm::IntegerSleOperation, jlm::llvm::IntegerSltOperation, jlm::llvm::IntegerUgeOperation, jlm::llvm::IntegerUgtOperation, jlm::llvm::IntegerUleOperation, jlm::llvm::IntegerUltOperation, BinaryOperation, jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >, jlm::rvsdg::MakeBitComparisonOperation< reduction, name, opflags >, jlm::rvsdg::BitConcatOperation, and jlm::rvsdg::TestBinaryOperation.

Definition at line 58 of file binary.cpp.

is_associative()

bool BinaryOperation::is_associative ( ) const

inlinenoexcept

Definition at line 192 of file binary.hpp.

is_commutative()

bool BinaryOperation::is_commutative ( ) const

inlinenoexcept

Definition at line 198 of file binary.hpp.

reduce_operand_pair()

virtual jlm::rvsdg::Output * jlm::rvsdg::BinaryOperation::reduce_operand_pair ( binop_reduction_path_t  path, jlm::rvsdg::Output *  op1, jlm::rvsdg::Output *  op2  ) const

pure virtual

Implemented in jlm::rvsdg::BitBinaryOperation, jlm::rvsdg::BitCompareOperation, jlm::rvsdg::BitConcatOperation, jlm::rvsdg::TestBinaryOperation, BinaryOperation, jlm::llvm::PtrCmpOperation, jlm::llvm::FCmpOperation, jlm::llvm::FBinaryOperation, jlm::llvm::IntegerAddOperation, jlm::llvm::IntegerSubOperation, jlm::llvm::IntegerMulOperation, jlm::llvm::IntegerSDivOperation, jlm::llvm::IntegerUDivOperation, jlm::llvm::IntegerSRemOperation, jlm::llvm::IntegerURemOperation, jlm::llvm::IntegerAShrOperation, jlm::llvm::IntegerShlOperation, jlm::llvm::IntegerLShrOperation, jlm::llvm::IntegerAndOperation, jlm::llvm::IntegerOrOperation, jlm::llvm::IntegerXorOperation, jlm::llvm::IntegerEqOperation, jlm::llvm::IntegerNeOperation, jlm::llvm::IntegerSgeOperation, jlm::llvm::IntegerSgtOperation, jlm::llvm::IntegerSleOperation, jlm::llvm::IntegerSltOperation, jlm::llvm::IntegerUgeOperation, jlm::llvm::IntegerUgtOperation, jlm::llvm::IntegerUleOperation, and jlm::llvm::IntegerUltOperation.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/binary.hpp
• jlm/rvsdg/binary.cpp
