jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags > Class Template Reference

#include <arithmetic.hpp>

Inheritance diagram for jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >:

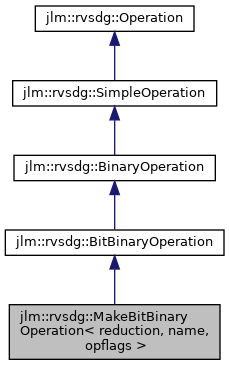

Collaboration diagram for jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >:

Public Member Functions
	~MakeBitBinaryOperation () noexcept override
	MakeBitBinaryOperation (std::size_t nbits) noexcept
bool	operator== (const Operation &other) const noexcept override
enum BinaryOperation::flags	flags () const noexcept override
BitValueRepresentation	reduce_constants (const BitValueRepresentation &arg1, const BitValueRepresentation &arg2) const override
std::string	debug_string () const override
std::unique_ptr< Operation >	copy () const override
std::unique_ptr< BitBinaryOperation >	create (size_t nbits) const override
Public Member Functions inherited from jlm::rvsdg::BitBinaryOperation
	~BitBinaryOperation () noexcept override
	BitBinaryOperation (const std::shared_ptr< const BitType > type, size_t arity=2) noexcept
binop_reduction_path_t	can_reduce_operand_pair (const jlm::rvsdg::Output *arg1, const jlm::rvsdg::Output *arg2) const noexcept override
jlm::rvsdg::Output *	reduce_operand_pair (binop_reduction_path_t path, jlm::rvsdg::Output *arg1, jlm::rvsdg::Output *arg2) const override
const BitType &	type () const noexcept
Public Member Functions inherited from jlm::rvsdg::BinaryOperation
	~BinaryOperation () noexcept override
	BinaryOperation (const std::vector< std::shared_ptr< const jlm::rvsdg::Type > > operands, std::shared_ptr< const jlm::rvsdg::Type > result)
bool	is_associative () const noexcept
bool	is_commutative () const noexcept
Public Member Functions inherited from jlm::rvsdg::SimpleOperation
	~SimpleOperation () noexcept override
	SimpleOperation (std::vector< std::shared_ptr< const jlm::rvsdg::Type > > operands, std::vector< std::shared_ptr< const jlm::rvsdg::Type > > results)
size_t	narguments () const noexcept
const std::shared_ptr< const rvsdg::Type > &	argument (size_t index) const noexcept
size_t	nresults () const noexcept
const std::shared_ptr< const rvsdg::Type > &	result (size_t index) const noexcept
Public Member Functions inherited from jlm::rvsdg::Operation
virtual	~Operation () noexcept
bool	operator!= (const Operation &other) const noexcept

Static Public Member Functions
static Output *	create (size_t nbits, Output *op1, Output *op2)
Static Public Member Functions inherited from jlm::rvsdg::BitBinaryOperation
static std::optional< std::vector< Output * > >	foldConstants (const BitBinaryOperation &operation, const std::vector< Output * > &operands)

Additional Inherited Members
Public Types inherited from jlm::rvsdg::BinaryOperation
enum class	flags { none = 0 , associative = 1 , commutative = 2 }

Detailed Description

template<typename reduction, const char * name, enum BinaryOperation::flags opflags>
class jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >

Definition at line 48 of file arithmetic.hpp.

Constructor & Destructor Documentation

~MakeBitBinaryOperation()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::~MakeBitBinaryOperation ( )

overridenoexcept

Definition at line 56 of file arithmetic-impl.hpp.

MakeBitBinaryOperation()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::MakeBitBinaryOperation ( std::size_t  nbits )

inlineexplicitnoexcept

Definition at line 53 of file arithmetic.hpp.

Member Function Documentation

copy()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

std::unique_ptr< Operation > jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::copy ( ) const

overridevirtual

Implements jlm::rvsdg::Operation.

Definition at line 92 of file arithmetic-impl.hpp.

create() [1/2]

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

std::unique_ptr< BitBinaryOperation > jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::create ( size_t  nbits ) const

overridevirtual

Implements jlm::rvsdg::BitBinaryOperation.

Definition at line 99 of file arithmetic-impl.hpp.

create() [2/2]

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

static Output * jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::create ( size_t  nbits, Output *  op1, Output *  op2  )

inlinestatic

Definition at line 77 of file arithmetic.hpp.

debug_string()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

std::string jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::debug_string ( ) const

overridevirtual

Implements jlm::rvsdg::Operation.

Definition at line 85 of file arithmetic-impl.hpp.

flags()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

enum BinaryOperation::flags jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::flags ( ) const

overridevirtualnoexcept

Reimplemented from jlm::rvsdg::BinaryOperation.

Definition at line 78 of file arithmetic-impl.hpp.

operator==()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

bool jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::operator== ( const Operation &  other ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Operation.

Definition at line 61 of file arithmetic-impl.hpp.

reduce_constants()

template<typename reduction , const char * name, enum BinaryOperation::flags opflags>

BitValueRepresentation jlm::rvsdg::MakeBitBinaryOperation< reduction, name, opflags >::reduce_constants ( const BitValueRepresentation &  arg1, const BitValueRepresentation &  arg2  ) const

overridevirtual

Implements jlm::rvsdg::BitBinaryOperation.

Definition at line 69 of file arithmetic-impl.hpp.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/bitstring/arithmetic.hpp
• jlm/rvsdg/bitstring/arithmetic-impl.hpp
