#include <CommandLine.hpp>

Inheritance diagram for jlm::tooling::JlmOptCommandLineOptions:

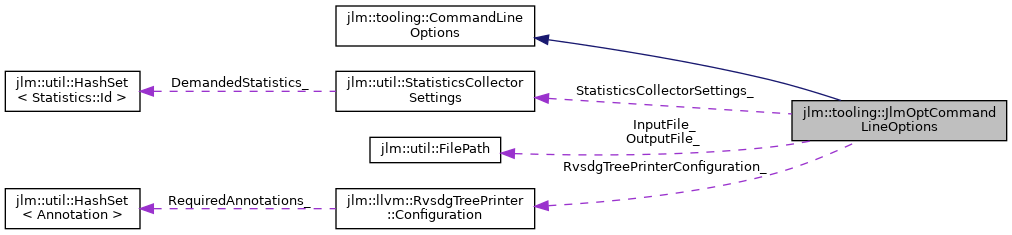

Collaboration diagram for jlm::tooling::JlmOptCommandLineOptions:

[legend]

Public Types
enum class	InputFormat { Llvm , Mlir }

enum class	OutputFormat { FirstEnumValue , Ascii , Dot , Json , JsonTree , Llvm , Mlir , Tree , LastEnumValue }

enum class	OptimizationId { FirstEnumValue , AAAndersenAgnostic , AAAndersenRegionAware , AggregateAllocaSplitting , CommonNodeElimination , DeadNodeElimination , FunctionInlining , IfConversion , IOBarrierElimination , InvariantValueRedirection , LoadChainSeparation , LoopStrengthReduction , LoopUnrolling , LoopUnswitching , NodeHoisting , NodePullIn , NodePushOut , NodeReduction , PredicateCorrelation , RvsdgTreePrinter , ScalarEvolution , StoreValueForwarding , LastEnumValue }

Public Member Functions
	JlmOptCommandLineOptions (util::FilePath inputFile, InputFormat inputFormat, util::FilePath outputFile, OutputFormat outputFormat, util::StatisticsCollectorSettings statisticsCollectorSettings, llvm::RvsdgTreePrinter::Configuration rvsdgTreePrinterConfiguration, std::vector< OptimizationId > optimizations, const bool dumpRvsdgGraphs)

void	Reset () noexcept override

const util::FilePath &	GetInputFile () const noexcept

InputFormat	GetInputFormat () const noexcept

const util::FilePath &	GetOutputFile () const noexcept

OutputFormat	GetOutputFormat () const noexcept

const util::StatisticsCollectorSettings &	GetStatisticsCollectorSettings () const noexcept

const std::vector< OptimizationId > &	GetOptimizationIds () const noexcept

const llvm::RvsdgTreePrinter::Configuration &	GetRvsdgTreePrinterConfiguration () const noexcept

bool	dumpRvsdgGraphs () const noexcept

Public Member Functions inherited from jlm::tooling::CommandLineOptions
virtual	~CommandLineOptions ()

	CommandLineOptions ()=default

Static Public Member Functions
static OptimizationId	FromCommandLineArgumentToOptimizationId (std::string_view commandLineArgument)

static util::Statistics::Id	FromCommandLineArgumentToStatisticsId (std::string_view commandLineArgument)

static std::string_view	ToCommandLineArgument (OptimizationId optimizationId)

static std::string_view	ToCommandLineArgument (util::Statistics::Id statisticsId)

static std::string_view	ToCommandLineArgument (InputFormat inputFormat)

static std::string_view	ToCommandLineArgument (OutputFormat outputFormat)

static std::unique_ptr< JlmOptCommandLineOptions >	Create (util::FilePath inputFile, InputFormat inputFormat, util::FilePath outputFile, OutputFormat outputFormat, util::StatisticsCollectorSettings statisticsCollectorSettings, llvm::RvsdgTreePrinter::Configuration rvsdgTreePrinterConfiguration, std::vector< OptimizationId > optimizations, bool dumpRvsdgGraphs)

Static Private Member Functions
static const util::BijectiveMap< util::Statistics::Id, std::string_view > &	GetStatisticsIdCommandLineArguments ()

static const std::unordered_map< OutputFormat, std::string_view > &	GetOutputFormatCommandLineArguments ()

static const util::BijectiveMap< OptimizationId, std::string_view > &	GetOptimizationIdCommandLineMap ()

Private Attributes
util::FilePath	InputFile_

InputFormat	InputFormat_

util::FilePath	OutputFile_

OutputFormat	OutputFormat_

util::StatisticsCollectorSettings	StatisticsCollectorSettings_

std::vector< OptimizationId >	OptimizationIds_

llvm::RvsdgTreePrinter::Configuration	RvsdgTreePrinterConfiguration_

bool	dumpRvsdgGraphs_

Detailed Description

Command line options for the jlm-opt command line tool.

Definition at line 41 of file CommandLine.hpp.

Member Enumeration Documentation

◆ InputFormat

enum class jlm::tooling::JlmOptCommandLineOptions::InputFormat

strong

Enumerator
Llvm
Mlir

Definition at line 44 of file CommandLine.hpp.

◆ OptimizationId

enum class jlm::tooling::JlmOptCommandLineOptions::OptimizationId

strong

Enumerator
FirstEnumValue
AAAndersenAgnostic
AAAndersenRegionAware
AggregateAllocaSplitting
CommonNodeElimination
DeadNodeElimination
FunctionInlining
IfConversion
IOBarrierElimination
InvariantValueRedirection
LoadChainSeparation
LoopStrengthReduction
LoopUnrolling
LoopUnswitching
NodeHoisting
NodePullIn
NodePushOut	Deprecated: Use NodeHoisting instead.
NodeReduction
PredicateCorrelation
RvsdgTreePrinter
ScalarEvolution
StoreValueForwarding
LastEnumValue

Definition at line 65 of file CommandLine.hpp.

◆ OutputFormat

enum class jlm::tooling::JlmOptCommandLineOptions::OutputFormat

strong

Enumerator
FirstEnumValue
Ascii
Dot
Json
JsonTree
Llvm
Mlir
Tree
LastEnumValue

Definition at line 50 of file CommandLine.hpp.

Constructor & Destructor Documentation

◆ JlmOptCommandLineOptions()

jlm::tooling::JlmOptCommandLineOptions::JlmOptCommandLineOptions	(	util::FilePath	inputFile,
		InputFormat	inputFormat,
		util::FilePath	outputFile,
		OutputFormat	outputFormat,
		util::StatisticsCollectorSettings	statisticsCollectorSettings,
		llvm::RvsdgTreePrinter::Configuration	rvsdgTreePrinterConfiguration,
		std::vector< OptimizationId >	optimizations,
		const bool	dumpRvsdgGraphs
	)

inline

Definition at line 100 of file CommandLine.hpp.

Member Function Documentation

◆ Create()

static std::unique_ptr< JlmOptCommandLineOptions > jlm::tooling::JlmOptCommandLineOptions::Create	(	util::FilePath	inputFile,
		InputFormat	inputFormat,
		util::FilePath	outputFile,
		OutputFormat	outputFormat,
		util::StatisticsCollectorSettings	statisticsCollectorSettings,
		llvm::RvsdgTreePrinter::Configuration	rvsdgTreePrinterConfiguration,
		std::vector< OptimizationId >	optimizations,
		bool	dumpRvsdgGraphs
	)

inlinestatic

Definition at line 189 of file CommandLine.hpp.

◆ dumpRvsdgGraphs()

bool jlm::tooling::JlmOptCommandLineOptions::dumpRvsdgGraphs ( ) const

inlinenoexcept

Definition at line 165 of file CommandLine.hpp.

◆ FromCommandLineArgumentToOptimizationId()

JlmOptCommandLineOptions::OptimizationId jlm::tooling::JlmOptCommandLineOptions::FromCommandLineArgumentToOptimizationId ( std::string_view commandLineArgument )

static

Definition at line 125 of file CommandLine.cpp.

◆ FromCommandLineArgumentToStatisticsId()

util::Statistics::Id jlm::tooling::JlmOptCommandLineOptions::FromCommandLineArgumentToStatisticsId ( std::string_view commandLineArgument )

static

Definition at line 152 of file CommandLine.cpp.

◆ GetInputFile()

const util::FilePath & jlm::tooling::JlmOptCommandLineOptions::GetInputFile ( ) const

inlinenoexcept

Definition at line 123 of file CommandLine.hpp.

◆ GetInputFormat()

InputFormat jlm::tooling::JlmOptCommandLineOptions::GetInputFormat ( ) const

inlinenoexcept

Definition at line 129 of file CommandLine.hpp.

◆ GetOptimizationIdCommandLineMap()

const util::BijectiveMap< JlmOptCommandLineOptions::OptimizationId, std::string_view > & jlm::tooling::JlmOptCommandLineOptions::GetOptimizationIdCommandLineMap ( )

staticprivate

Definition at line 92 of file CommandLine.cpp.

◆ GetOptimizationIds()

const std::vector< OptimizationId > & jlm::tooling::JlmOptCommandLineOptions::GetOptimizationIds ( ) const

inlinenoexcept

Definition at line 153 of file CommandLine.hpp.

◆ GetOutputFile()

const util::FilePath & jlm::tooling::JlmOptCommandLineOptions::GetOutputFile ( ) const

inlinenoexcept

Definition at line 135 of file CommandLine.hpp.

◆ GetOutputFormat()

OutputFormat jlm::tooling::JlmOptCommandLineOptions::GetOutputFormat ( ) const

inlinenoexcept

Definition at line 141 of file CommandLine.hpp.

◆ GetOutputFormatCommandLineArguments()

const std::unordered_map< JlmOptCommandLineOptions::OutputFormat, std::string_view > & jlm::tooling::JlmOptCommandLineOptions::GetOutputFormatCommandLineArguments ( )

staticprivate

Definition at line 239 of file CommandLine.cpp.

◆ GetRvsdgTreePrinterConfiguration()

const llvm::RvsdgTreePrinter::Configuration & jlm::tooling::JlmOptCommandLineOptions::GetRvsdgTreePrinterConfiguration ( ) const

inlinenoexcept

Definition at line 159 of file CommandLine.hpp.

◆ GetStatisticsCollectorSettings()

const util::StatisticsCollectorSettings & jlm::tooling::JlmOptCommandLineOptions::GetStatisticsCollectorSettings ( ) const

inlinenoexcept

Definition at line 147 of file CommandLine.hpp.

◆ GetStatisticsIdCommandLineArguments()

const util::BijectiveMap< util::Statistics::Id, std::string_view > & jlm::tooling::JlmOptCommandLineOptions::GetStatisticsIdCommandLineArguments ( )

staticprivate

Definition at line 198 of file CommandLine.cpp.

◆ Reset()

void jlm::tooling::JlmOptCommandLineOptions::Reset ( )

overridevirtualnoexcept

Resets the state of the instance.

Implements jlm::tooling::CommandLineOptions.

Definition at line 82 of file CommandLine.cpp.

◆ ToCommandLineArgument() [1/4]

std::string_view jlm::tooling::JlmOptCommandLineOptions::ToCommandLineArgument ( InputFormat inputFormat )

static

Definition at line 179 of file CommandLine.cpp.

◆ ToCommandLineArgument() [2/4]

std::string_view jlm::tooling::JlmOptCommandLineOptions::ToCommandLineArgument ( OptimizationId optimizationId )

static

Definition at line 141 of file CommandLine.cpp.

◆ ToCommandLineArgument() [3/4]

std::string_view jlm::tooling::JlmOptCommandLineOptions::ToCommandLineArgument ( OutputFormat outputFormat )

static

Definition at line 191 of file CommandLine.cpp.

◆ ToCommandLineArgument() [4/4]

std::string_view jlm::tooling::JlmOptCommandLineOptions::ToCommandLineArgument ( util::Statistics::Id statisticsId )

static

Definition at line 166 of file CommandLine.cpp.

Member Data Documentation

◆ dumpRvsdgGraphs_

bool jlm::tooling::JlmOptCommandLineOptions::dumpRvsdgGraphs_

private

Definition at line 218 of file CommandLine.hpp.

◆ InputFile_

util::FilePath jlm::tooling::JlmOptCommandLineOptions::InputFile_

private

Definition at line 211 of file CommandLine.hpp.

◆ InputFormat_

InputFormat jlm::tooling::JlmOptCommandLineOptions::InputFormat_

private

Definition at line 212 of file CommandLine.hpp.

◆ OptimizationIds_

std::vector<OptimizationId> jlm::tooling::JlmOptCommandLineOptions::OptimizationIds_

private

Definition at line 216 of file CommandLine.hpp.

◆ OutputFile_

util::FilePath jlm::tooling::JlmOptCommandLineOptions::OutputFile_

private

Definition at line 213 of file CommandLine.hpp.

◆ OutputFormat_

OutputFormat jlm::tooling::JlmOptCommandLineOptions::OutputFormat_

private

Definition at line 214 of file CommandLine.hpp.

◆ RvsdgTreePrinterConfiguration_

llvm::RvsdgTreePrinter::Configuration jlm::tooling::JlmOptCommandLineOptions::RvsdgTreePrinterConfiguration_

private

Definition at line 217 of file CommandLine.hpp.

◆ StatisticsCollectorSettings_

util::StatisticsCollectorSettings jlm::tooling::JlmOptCommandLineOptions::StatisticsCollectorSettings_

private

Definition at line 215 of file CommandLine.hpp.

The documentation for this class was generated from the following files:

jlm/tooling/CommandLine.hpp
jlm/tooling/CommandLine.cpp
