jlm::llvm::LambdaCallArgumentMismatch Class Reference

RVSDG module containing a static function that is called with the wrong number of arguments. More...

#include <TestRvsdgs.hpp>

Inheritance diagram for jlm::llvm::LambdaCallArgumentMismatch:

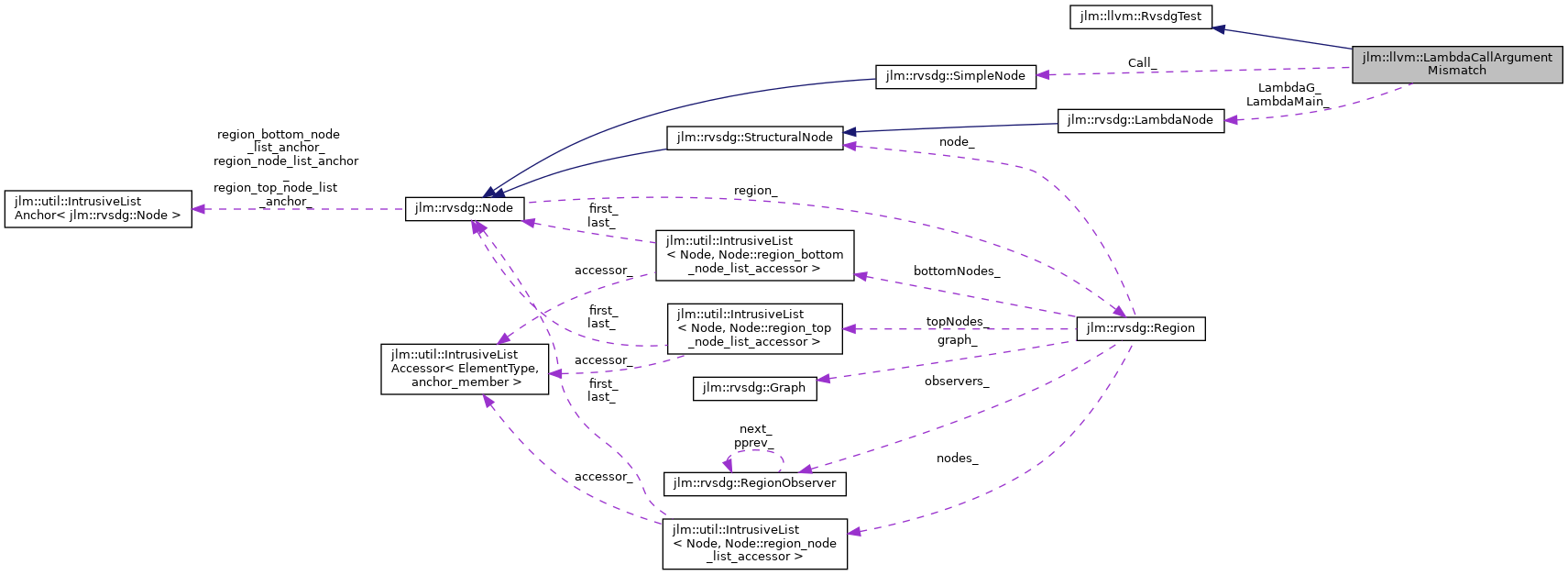

Collaboration diagram for jlm::llvm::LambdaCallArgumentMismatch:

Public Member Functions
const rvsdg::LambdaNode &	GetLambdaMain () const noexcept
const rvsdg::LambdaNode &	GetLambdaG () const noexcept
const rvsdg::SimpleNode &	GetCall () const noexcept
Public Member Functions inherited from jlm::llvm::RvsdgTest
virtual	~RvsdgTest ()=default
jlm::llvm::LlvmRvsdgModule &	module ()
const rvsdg::Graph &	graph ()
void	InitializeTest ()

Private Member Functions
std::unique_ptr< llvm::LlvmRvsdgModule >	SetupRvsdg () override
	Create RVSDG for this test. More...

Private Attributes
rvsdg::LambdaNode *	LambdaG_ = {}
rvsdg::LambdaNode *	LambdaMain_ = {}
rvsdg::SimpleNode *	Call_ = {}

Detailed Description

RVSDG module containing a static function that is called with the wrong number of arguments.

LLVM permits such code, albeit with issuing the warning: too many arguments in call to 'g'

The class sets up an RVSDG module corresponding to the following code:

static unsigned int
g()
{
  return 5;
}

int
main()
{
  unsigned int x = 6;
  return g(x);
}

Definition at line 2353 of file TestRvsdgs.hpp.

Member Function Documentation

GetCall()

const rvsdg::SimpleNode& jlm::llvm::LambdaCallArgumentMismatch::GetCall ( ) const

inlinenoexcept

Definition at line 2369 of file TestRvsdgs.hpp.

GetLambdaG()

const rvsdg::LambdaNode& jlm::llvm::LambdaCallArgumentMismatch::GetLambdaG ( ) const

inlinenoexcept

Definition at line 2363 of file TestRvsdgs.hpp.

GetLambdaMain()

const rvsdg::LambdaNode& jlm::llvm::LambdaCallArgumentMismatch::GetLambdaMain ( ) const

inlinenoexcept

Definition at line 2357 of file TestRvsdgs.hpp.

SetupRvsdg()

std::unique_ptr< llvm::LlvmRvsdgModule > jlm::llvm::LambdaCallArgumentMismatch::SetupRvsdg ( )

overrideprivatevirtual

Create RVSDG for this test.

Implements jlm::llvm::RvsdgTest.

Definition at line 3834 of file TestRvsdgs.cpp.

Member Data Documentation

Call_

rvsdg::SimpleNode* jlm::llvm::LambdaCallArgumentMismatch::Call_ = {}

private

Definition at line 2380 of file TestRvsdgs.hpp.

LambdaG_

rvsdg::LambdaNode* jlm::llvm::LambdaCallArgumentMismatch::LambdaG_ = {}

private

Definition at line 2378 of file TestRvsdgs.hpp.

LambdaMain_

rvsdg::LambdaNode* jlm::llvm::LambdaCallArgumentMismatch::LambdaMain_ = {}

private

Definition at line 2379 of file TestRvsdgs.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/TestRvsdgs.hpp
• jlm/llvm/TestRvsdgs.cpp
