#include <simple-node.hpp>

Inheritance diagram for jlm::rvsdg::SimpleNode:

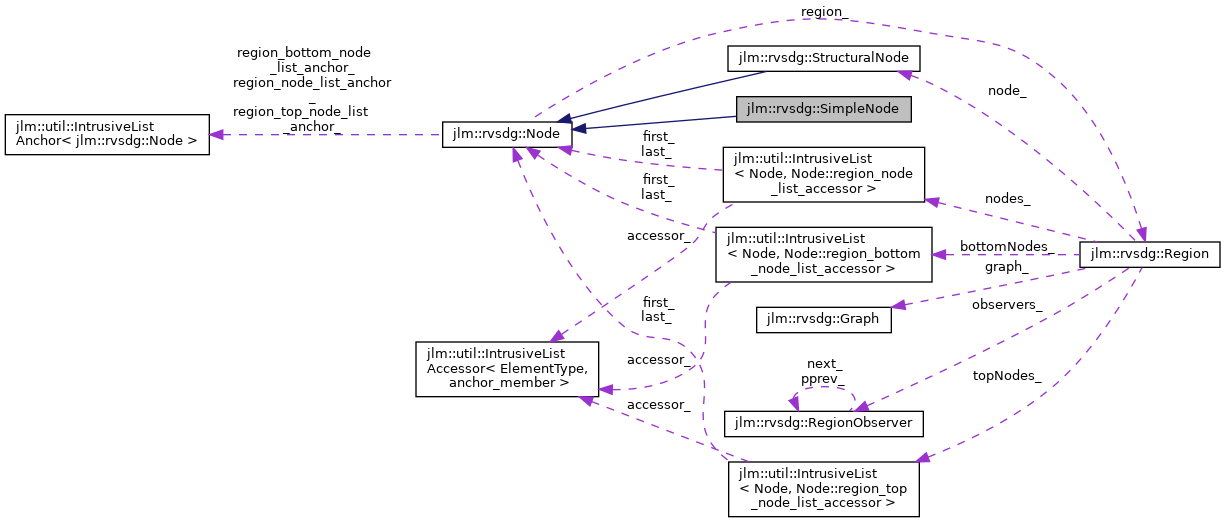

Collaboration diagram for jlm::rvsdg::SimpleNode:

[legend]

Public Member Functions
	~SimpleNode () override

NodeInput *	input (size_t index) const noexcept

NodeOutput *	output (size_t index) const noexcept

const SimpleOperation &	GetOperation () const noexcept override

Node *	copy (Region region, const std::vector< Output > &operands) const override

Node *	copy (Region *region, SubstitutionMap &smap) const override
	Copy a node with substitutions. More...

std::string	DebugString () const override

Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

virtual Node *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const

Static Public Member Functions
static SimpleNode &	Create (Region &region, std::unique_ptr< Operation > operation, const std::vector< rvsdg::Output * > &operands)

Private Member Functions
	SimpleNode (rvsdg::Region &region, std::unique_ptr< SimpleOperation > operation, const std::vector< jlm::rvsdg::Output * > &operands)

Private Attributes
std::unique_ptr< SimpleOperation >	Operation_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Detailed Description

Definition at line 18 of file simple-node.hpp.

Constructor & Destructor Documentation

◆ ~SimpleNode()

jlm::rvsdg::SimpleNode::~SimpleNode ( )

override

Definition at line 14 of file simple-node.cpp.

◆ SimpleNode()

jlm::rvsdg::SimpleNode::SimpleNode	(	rvsdg::Region &	region,
		std::unique_ptr< SimpleOperation >	operation,
		const std::vector< jlm::rvsdg::Output * > &	operands
	)

private

Definition at line 19 of file simple-node.cpp.

Member Function Documentation

◆ copy() [1/2]

Node * jlm::rvsdg::SimpleNode::copy	(	Region *	region,
		const std::vector< Output * > &	operands
	)		const

override

Definition at line 54 of file simple-node.cpp.

◆ copy() [2/2]

Node * jlm::rvsdg::SimpleNode::copy	(	Region *	region,
		SubstitutionMap &	smap
	)		const

overridevirtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implements jlm::rvsdg::Node.

Definition at line 60 of file simple-node.cpp.

◆ Create()

static SimpleNode& jlm::rvsdg::SimpleNode::Create	(	Region &	region,
		std::unique_ptr< Operation >	operation,
		const std::vector< rvsdg::Output * > &	operands
	)

inlinestatic

Definition at line 49 of file simple-node.hpp.

◆ DebugString()

std::string jlm::rvsdg::SimpleNode::DebugString ( ) const

overridevirtual

Implements jlm::rvsdg::Node.

Definition at line 79 of file simple-node.cpp.

◆ GetOperation()

const SimpleOperation & jlm::rvsdg::SimpleNode::GetOperation ( ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Node.

Definition at line 48 of file simple-node.cpp.

◆ input()

NodeInput * jlm::rvsdg::SimpleNode::input ( size_t index ) const

inlinenoexcept

Definition at line 82 of file simple-node.hpp.

◆ output()

NodeOutput * jlm::rvsdg::SimpleNode::output ( size_t index ) const

inlinenoexcept

Definition at line 88 of file simple-node.hpp.

Member Data Documentation

◆ Operation_

std::unique_ptr<SimpleOperation> jlm::rvsdg::SimpleNode::Operation_

private

Definition at line 63 of file simple-node.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/simple-node.hpp
jlm/rvsdg/simple-node.cpp
