Represent acyclic RVSDG subgraphs. More...

#include <region.hpp>

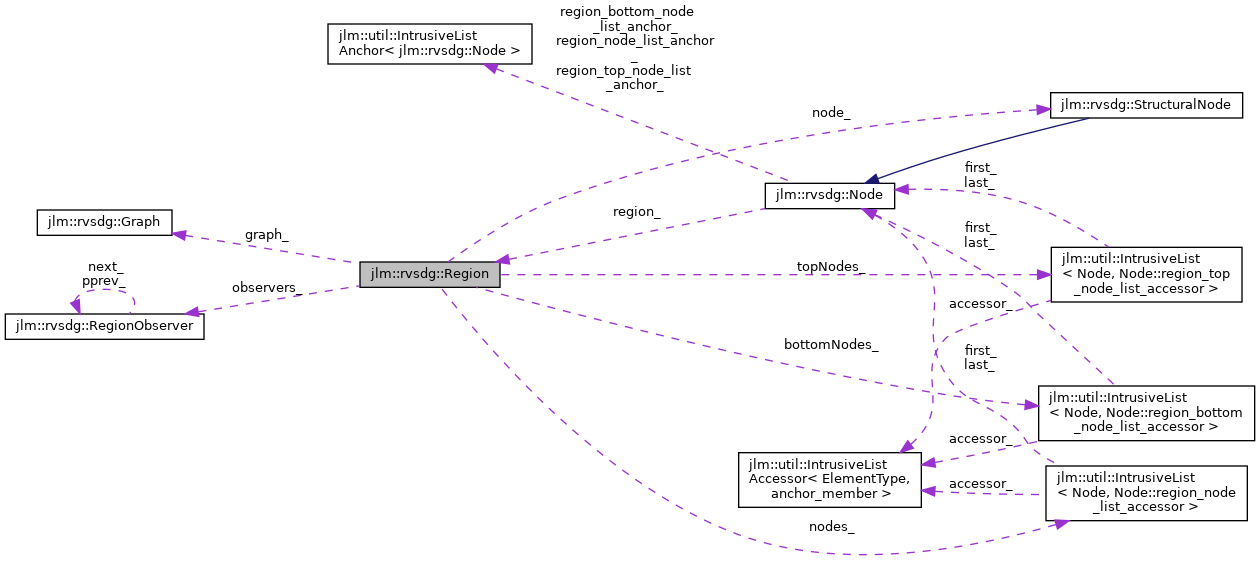

Collaboration diagram for jlm::rvsdg::Region:

[legend]

Public Types
using	Id = uint64_t

Public Member Functions
	~Region () noexcept

	Region (Graph *graph)

	Region (rvsdg::StructuralNode *node, size_t index)

	Region (const Region &)=delete

Region &	operator= (const Region &)=delete

Graph *	graph () const noexcept

Id	getRegionId () const noexcept

size_t	getDepth () const noexcept

rvsdg::StructuralNode *	node () const noexcept

size_t	index () const noexcept

RegionArgumentRange	Arguments () noexcept

RegionArgumentConstRange	Arguments () const noexcept

RegionResultRange	Results () noexcept

RegionResultConstRange	Results () const noexcept

TopNodeRange	TopNodes () noexcept

TopNodeConstRange	TopNodes () const noexcept

NodeRange	Nodes () noexcept

NodeConstRange	Nodes () const noexcept

BottomNodeRange	BottomNodes () noexcept

BottomNodeConstRange	BottomNodes () const noexcept

bool	IsRootRegion () const noexcept

RegionArgument &	addArgument (std::unique_ptr< RegionArgument > argument)

RegionArgument &	insertArgument (size_t index, std::unique_ptr< RegionArgument > argument)

size_t	RemoveArguments (const util::HashSet< size_t > &indices)

size_t	PruneArguments ()

size_t	narguments () const noexcept

RegionArgument *	argument (size_t index) const noexcept

RegionResult &	addResult (std::unique_ptr< RegionResult > result)

size_t	RemoveResults (const util::HashSet< size_t > &indices)

size_t	nresults () const noexcept

RegionResult *	result (size_t index) const noexcept

size_t	numNodes () const noexcept

size_t	numTopNodes () const noexcept

size_t	numBottomNodes () const noexcept

void	removeNode (Node *node)

void	copy (Region *target, SubstitutionMap &smap) const
	Copy a region with substitutions.

void	prune (bool recursive)

void	view () const

Node::Id	getNextNodeId () const noexcept

Static Public Member Functions
template<class TOperation >
static bool	containsOperation (const Region &region, bool checkSubregions)

template<class TNodeType >
static bool	containsNodeType (const Region &region, bool checkSubregions)

static size_t	NumRegions (const rvsdg::Region &region) noexcept

static bool	isAncestor (const rvsdg::Region &region, const rvsdg::Region &ancestor) noexcept

static std::string	ToTree (const rvsdg::Region &region, const util::AnnotationMap &annotationMap) noexcept

static std::string	ToTree (const rvsdg::Region &region) noexcept

static std::string	toJson (const Region &region, const util::AnnotationMap &annotationMap) noexcept

static std::string	toJson (const Region &region) noexcept

Private Types
using	RegionArgumentIterator = std::vector< RegionArgument * >::iterator

using	RegionArgumentConstIterator = std::vector< RegionArgument * >::const_iterator

using	RegionArgumentRange = util::IteratorRange< RegionArgumentIterator >

using	RegionArgumentConstRange = util::IteratorRange< RegionArgumentConstIterator >

using	RegionResultIterator = std::vector< RegionResult * >::iterator

using	RegionResultConstIterator = std::vector< RegionResult * >::const_iterator

using	RegionResultRange = util::IteratorRange< RegionResultIterator >

using	RegionResultConstRange = util::IteratorRange< RegionResultConstIterator >

using	region_nodes_list = util::IntrusiveList< Node, Node::region_node_list_accessor >

using	region_top_node_list = util::IntrusiveList< Node, Node::region_top_node_list_accessor >

using	region_bottom_node_list = util::IntrusiveList< Node, Node::region_bottom_node_list_accessor >

using	TopNodeIterator = region_top_node_list::Iterator

using	TopNodeConstIterator = region_top_node_list::ConstIterator

using	TopNodeRange = util::IteratorRange< TopNodeIterator >

using	TopNodeConstRange = util::IteratorRange< TopNodeConstIterator >

using	NodeIterator = region_nodes_list::Iterator

using	NodeConstIterator = region_nodes_list::ConstIterator

using	NodeRange = util::IteratorRange< NodeIterator >

using	NodeConstRange = util::IteratorRange< NodeConstIterator >

using	BottomNodeIterator = region_bottom_node_list::Iterator

using	BottomNodeConstIterator = region_bottom_node_list::ConstIterator

using	BottomNodeRange = util::IteratorRange< BottomNodeIterator >

using	BottomNodeConstRange = util::IteratorRange< BottomNodeConstIterator >

Private Member Functions
void	onTopNodeAdded (Node &node)
	Adds `node` to the top nodes of the region.

void	onTopNodeRemoved (Node &node)

void	onBottomNodeAdded (Node &node)
	Adds `node` to the set of bottom nodes in the region.

void	onBottomNodeRemoved (Node &node)

void	onNodeAdded (Node &node)
	Adds `node` to the list of nodes in the region.

void	onNodeRemoved (Node &node)

Node::Id	generateNodeId () noexcept

void	notifyNodeCreate (Node *node)

void	notifyNodeDestroy (Node *node)

void	notifyInputCreate (Input *input)

void	notifyInputChange (Input input, Output old_origin, Output *new_origin)

void	notifyInputDestroy (Input *input)

Static Private Member Functions
static void	ToTree (const rvsdg::Region &region, const util::AnnotationMap &annotationMap, size_t indentationDepth, std::stringstream &stream) noexcept

static void	toJson (const Region &region, const util::AnnotationMap &annotationMap, std::stringstream &stream) noexcept

static void	toJson (const StructuralNode &structuralNode, const util::AnnotationMap &annotationMap, std::stringstream &stream) noexcept

static std::string	toJsonKeyValue (const util::Annotation &annotation) noexcept

static std::string	GetAnnotationString (const void *key, const util::AnnotationMap &annotationMap, char annotationSeparator, char labelValueSeparator)

static std::string	ToString (const std::vector< util::Annotation > &annotations, char annotationSeparator, char labelValueSeparator)

static std::string	ToString (const util::Annotation &annotation, char labelValueSeparator)

Private Attributes
Graph *const	graph_

const Id	id_

const size_t	depth_

rvsdg::StructuralNode *const	node_

const size_t	index_

Node::Id	nextNodeId_

std::vector< RegionResult * >	results_

std::vector< RegionArgument * >	arguments_

region_top_node_list	topNodes_

size_t	numTopNodes_

region_bottom_node_list	bottomNodes_

size_t	numBottomNodes_

region_nodes_list	nodes_

size_t	numNodes_

RegionObserver *	observers_ = nullptr

Friends
class	Node

class	RegionObserver

class	SimpleNode

class	StructuralNode

class	Input

class	Output

class	RegionResult

Detailed Description

Represent acyclic RVSDG subgraphs.

Regions represent acyclic RVSDG subgraphs and are instantiated with an index in StructuralNodes. Each region has RegionArguments and RegionResults that represent the values at the beginning and end of the acyclic graph, respectively. In addition, each region keeps track of the following properties:

The nodes of the acyclic subgraph. They represent the computations performed in the region.
The top nodes of the acyclic subgraph. These are all nodes of the region that have no inputs, i.e., constants.
The bottom nodes of the acyclic subgraph. These are all nodes of the region that have no users, i.e. that are dead. See Output::IsDead() for more information.

Definition at line 212 of file region.hpp.

Member Typedef Documentation

◆ BottomNodeConstIterator

using jlm::rvsdg::Region::BottomNodeConstIterator = region_bottom_node_list::ConstIterator

private

Definition at line 239 of file region.hpp.

◆ BottomNodeConstRange

using jlm::rvsdg::Region::BottomNodeConstRange = util::IteratorRange<BottomNodeConstIterator>

private

Definition at line 241 of file region.hpp.

◆ BottomNodeIterator

using jlm::rvsdg::Region::BottomNodeIterator = region_bottom_node_list::Iterator

private

Definition at line 238 of file region.hpp.

◆ BottomNodeRange

using jlm::rvsdg::Region::BottomNodeRange = util::IteratorRange<BottomNodeIterator>

private

Definition at line 240 of file region.hpp.

◆ Id

using jlm::rvsdg::Region::Id = uint64_t

Definition at line 244 of file region.hpp.

◆ NodeConstIterator

using jlm::rvsdg::Region::NodeConstIterator = region_nodes_list::ConstIterator

private

Definition at line 234 of file region.hpp.

◆ NodeConstRange

using jlm::rvsdg::Region::NodeConstRange = util::IteratorRange<NodeConstIterator>

private

Definition at line 236 of file region.hpp.

◆ NodeIterator

using jlm::rvsdg::Region::NodeIterator = region_nodes_list::Iterator

private

Definition at line 233 of file region.hpp.

◆ NodeRange

using jlm::rvsdg::Region::NodeRange = util::IteratorRange<NodeIterator>

private

Definition at line 235 of file region.hpp.

◆ region_bottom_node_list

using jlm::rvsdg::Region::region_bottom_node_list = util::IntrusiveList<Node, Node::region_bottom_node_list_accessor>

private

Definition at line 226 of file region.hpp.

◆ region_nodes_list

using jlm::rvsdg::Region::region_nodes_list = util::IntrusiveList<Node, Node::region_node_list_accessor>

private

Definition at line 224 of file region.hpp.

◆ region_top_node_list

using jlm::rvsdg::Region::region_top_node_list = util::IntrusiveList<Node, Node::region_top_node_list_accessor>

private

Definition at line 225 of file region.hpp.

◆ RegionArgumentConstIterator

using jlm::rvsdg::Region::RegionArgumentConstIterator = std::vector<RegionArgument *>::const_iterator

private

Definition at line 215 of file region.hpp.

◆ RegionArgumentConstRange

using jlm::rvsdg::Region::RegionArgumentConstRange = util::IteratorRange<RegionArgumentConstIterator>

private

Definition at line 217 of file region.hpp.

◆ RegionArgumentIterator

using jlm::rvsdg::Region::RegionArgumentIterator = std::vector<RegionArgument *>::iterator

private

Definition at line 214 of file region.hpp.

◆ RegionArgumentRange

using jlm::rvsdg::Region::RegionArgumentRange = util::IteratorRange<RegionArgumentIterator>

private

Definition at line 216 of file region.hpp.

◆ RegionResultConstIterator

using jlm::rvsdg::Region::RegionResultConstIterator = std::vector<RegionResult *>::const_iterator

private

Definition at line 220 of file region.hpp.

◆ RegionResultConstRange

using jlm::rvsdg::Region::RegionResultConstRange = util::IteratorRange<RegionResultConstIterator>

private

Definition at line 222 of file region.hpp.

◆ RegionResultIterator

using jlm::rvsdg::Region::RegionResultIterator = std::vector<RegionResult *>::iterator

private

Definition at line 219 of file region.hpp.

◆ RegionResultRange

using jlm::rvsdg::Region::RegionResultRange = util::IteratorRange<RegionResultIterator>

private

Definition at line 221 of file region.hpp.

◆ TopNodeConstIterator

using jlm::rvsdg::Region::TopNodeConstIterator = region_top_node_list::ConstIterator

private

Definition at line 229 of file region.hpp.

◆ TopNodeConstRange

using jlm::rvsdg::Region::TopNodeConstRange = util::IteratorRange<TopNodeConstIterator>

private

Definition at line 231 of file region.hpp.

◆ TopNodeIterator

using jlm::rvsdg::Region::TopNodeIterator = region_top_node_list::Iterator

private

Definition at line 228 of file region.hpp.

◆ TopNodeRange

using jlm::rvsdg::Region::TopNodeRange = util::IteratorRange<TopNodeIterator>

private

Definition at line 230 of file region.hpp.

Constructor & Destructor Documentation

◆ ~Region()

jlm::rvsdg::Region::~Region ( )

noexcept

Definition at line 122 of file region.cpp.

◆ Region() [1/3]

jlm::rvsdg::Region::Region ( Graph * graph )

Constructor for the root region of a graph

Definition at line 148 of file region.cpp.

◆ Region() [2/3]

jlm::rvsdg::Region::Region	(	rvsdg::StructuralNode *	node,
		size_t	index
	)

Constructor for a subregion in a structural node

Definition at line 160 of file region.cpp.

◆ Region() [3/3]

jlm::rvsdg::Region::Region ( const Region & )

delete

Member Function Documentation

◆ addArgument()

RegionArgument & jlm::rvsdg::Region::addArgument ( std::unique_ptr< RegionArgument > argument )

Appends the given region argument to the list of region arguments. Invalidates any existing iterators to the argument list.

Parameters

argument the argument to add

Returns: a reference to the added argument

Definition at line 179 of file region.cpp.

◆ addResult()

RegionResult & jlm::rvsdg::Region::addResult ( std::unique_ptr< RegionResult > result )

Appends the given region result to the list of region results. Invalidates any existing iterators to the result list.

Parameters

result the result to add

Returns: a reference to the added result

Definition at line 265 of file region.cpp.

◆ argument()

RegionArgument * jlm::rvsdg::Region::argument ( size_t index ) const

inlinenoexcept

Definition at line 466 of file region.hpp.

◆ Arguments() [1/2]

RegionArgumentConstRange jlm::rvsdg::Region::Arguments ( ) const

inlinenoexcept

Returns: Returns an iterator range for iterating through the arguments of the region.

Definition at line 328 of file region.hpp.

◆ Arguments() [2/2]

RegionArgumentRange jlm::rvsdg::Region::Arguments ( )

inlinenoexcept

Returns: Returns an iterator range for iterating through the arguments of the region.

Definition at line 319 of file region.hpp.

◆ BottomNodes() [1/2]

BottomNodeConstRange jlm::rvsdg::Region::BottomNodes ( ) const

inlinenoexcept

Returns: Returns an iterator range for iterating through the bottom nodes of the region. The bottom nodes are all nodes with only unused outputs, aka. dead nodes.

Definition at line 404 of file region.hpp.

◆ BottomNodes() [2/2]

BottomNodeRange jlm::rvsdg::Region::BottomNodes ( )

inlinenoexcept

Returns: Returns an iterator range for iterating through the bottom nodes of the region. The bottom nodes are all nodes with only unused outputs, aka. dead nodes.

Definition at line 394 of file region.hpp.

◆ containsNodeType()

template<class TNodeType >

bool jlm::rvsdg::Region::containsNodeType	(	const Region &	region,
		bool	checkSubregions
	)

static

Checks if a node type is contained within the given region. If checkSubregions is true, then the subregions of all contained structural nodes are recursively checked as well.

Template Parameters

TNodeType The node type to check for.

Parameters

region	The region to check.
checkSubregions	If true, then the subregions of all contained structural nodes will be checked as well.

Returns: True, if the node type is found. Otherwise, false.

Definition at line 201 of file structural-node.hpp.

◆ containsOperation()

template<class TOperation >

bool jlm::rvsdg::Region::containsOperation	(	const Region &	region,
		bool	checkSubregions
	)

static

Checks if an operation is contained within the given region. If checkSubregions is true, then the subregions of all contained structural nodes are recursively checked as well.

Template Parameters

TOperation The operation to check for.

Parameters

region	The region to check.
checkSubregions	If true, then the subregions of all contained structural nodes will be checked as well.

Returns: True, if the operation is found. Otherwise, false.

Definition at line 163 of file structural-node.hpp.

◆ copy()

void jlm::rvsdg::Region::copy	(	Region *	target,
		SubstitutionMap &	smap
	)		const

Copy a region with substitutions.

Parameters

target	Target region to create nodes in
smap	Operand substitutions

Copies all nodes of the specified region and its subregions into the target region. Substitutions will be performed as specified, and the substitution map will be updated as nodes are copied.

Definition at line 317 of file region.cpp.

◆ generateNodeId()

Node::Id jlm::rvsdg::Region::generateNodeId ( )

inlineprivatenoexcept

Returns: A unique identifier for a node within this region.

Note: This method is automatically invoked when a node is created. The identifier is only unique within this region.

Definition at line 642 of file region.hpp.

◆ GetAnnotationString()

std::string jlm::rvsdg::Region::GetAnnotationString	(	const void *	key,
		const util::AnnotationMap &	annotationMap,
		char	annotationSeparator,
		char	labelValueSeparator
	)

staticprivate

Definition at line 710 of file region.cpp.

◆ getDepth()

size_t jlm::rvsdg::Region::getDepth ( ) const

inlinenoexcept

Gets the depth of the region. Region depth is defined as 0 for the root region, while all other regions have a depth equal to the depth of their parent region + 1.

Returns: the depth of the region

Definition at line 291 of file region.hpp.

◆ getNextNodeId()

Node::Id jlm::rvsdg::Region::getNextNodeId ( ) const

inlinenoexcept

Returns: the Node:Id that will be used for the next node created in the region.

Definition at line 573 of file region.hpp.

◆ getRegionId()

Id jlm::rvsdg::Region::getRegionId ( ) const

inlinenoexcept

Returns: The unique identifier of the region instance within the graph.

See also: Graph::generateRegionId()

Definition at line 278 of file region.hpp.

◆ graph()

Graph * jlm::rvsdg::Region::graph ( ) const

inlinenoexcept

Returns: the Graph the region belongs to

Definition at line 267 of file region.hpp.

◆ index()

size_t jlm::rvsdg::Region::index ( ) const

inlinenoexcept

Returns: the index of the region within the surrounding structural node.

Definition at line 310 of file region.hpp.

◆ insertArgument()

RegionArgument & jlm::rvsdg::Region::insertArgument	(	size_t	index,
		std::unique_ptr< RegionArgument >	argument
	)

Inserts the given region argument in the list of region arguments, at the given index. Shifts any results with equal or greater index one to the right to make room. Invalidates any existing iterators to the argument list.

Parameters

index	the position to add the result
argument	the argument to add

Returns: a reference to the added result

See also: addArgument to add to the end

Definition at line 190 of file region.cpp.

◆ isAncestor()

bool jlm::rvsdg::Region::isAncestor	(	const rvsdg::Region &	region,
		const rvsdg::Region &	ancestor
	)

staticnoexcept

Determines if ancestor is a direct or indirect parent region of region in the RVSDG.

Parameters

region	The region to check the ancestry of.
ancestor	The region to test as a potential ancestor.

Returns: true if ancestor appears somewhere above region in the RVSDG, false otherwise.

Definition at line 474 of file region.cpp.

◆ IsRootRegion()

bool jlm::rvsdg::Region::IsRootRegion ( ) const

noexcept

Checks if the region is the RVSDG root region.

Returns: Returns true if it is the root region, otherwise false.

Definition at line 173 of file region.cpp.

◆ narguments()

size_t jlm::rvsdg::Region::narguments ( ) const

inlinenoexcept

Definition at line 460 of file region.hpp.

◆ node()

rvsdg::StructuralNode * jlm::rvsdg::Region::node ( ) const

inlinenoexcept

Returns: the structual node this region is a subregion of. If the region is the root region, nullptr is returned instead.

Definition at line 301 of file region.hpp.

◆ Nodes() [1/2]

NodeConstRange jlm::rvsdg::Region::Nodes ( ) const

inlinenoexcept

Returns: Returns an iterator range for iterating through the nodes of the region.

Definition at line 384 of file region.hpp.

◆ Nodes() [2/2]

NodeRange jlm::rvsdg::Region::Nodes ( )

inlinenoexcept

Returns: Returns an iterator range for iterating through the nodes of the region.

Definition at line 375 of file region.hpp.

◆ notifyInputChange()

void jlm::rvsdg::Region::notifyInputChange	(	Input *	input,
		Output *	old_origin,
		Output *	new_origin
	)

private

Definition at line 438 of file region.cpp.

◆ notifyInputCreate()

void jlm::rvsdg::Region::notifyInputCreate ( Input * input )

private

Definition at line 429 of file region.cpp.

◆ notifyInputDestroy()

void jlm::rvsdg::Region::notifyInputDestroy ( Input * input )

private

Definition at line 447 of file region.cpp.

◆ notifyNodeCreate()

void jlm::rvsdg::Region::notifyNodeCreate ( Node * node )

private

Definition at line 411 of file region.cpp.

◆ notifyNodeDestroy()

void jlm::rvsdg::Region::notifyNodeDestroy ( Node * node )

private

Definition at line 420 of file region.cpp.

◆ nresults()

size_t jlm::rvsdg::Region::nresults ( ) const

inlinenoexcept

Definition at line 494 of file region.hpp.

◆ numBottomNodes()

size_t jlm::rvsdg::Region::numBottomNodes ( ) const

inlinenoexcept

Returns: The number of bottom nodes in the region.

Definition at line 528 of file region.hpp.

◆ numNodes()

size_t jlm::rvsdg::Region::numNodes ( ) const

inlinenoexcept

Returns: The number of nodes in the region.

Definition at line 510 of file region.hpp.

◆ NumRegions()

size_t jlm::rvsdg::Region::NumRegions ( const rvsdg::Region & region )

staticnoexcept

Counts the number of (sub-)regions contained within region. The count includes region, i.e., if region does not contain any structural nodes and therefore no subregions, then the count is one.

Parameters

region The region for which to count the contained (sub-)regions.

Returns: The number of (sub-)regions.

Definition at line 456 of file region.cpp.

◆ numTopNodes()

size_t jlm::rvsdg::Region::numTopNodes ( ) const

inlinenoexcept

Returns: The number of top nodes in the region.

Definition at line 519 of file region.hpp.

◆ onBottomNodeAdded()

void jlm::rvsdg::Region::onBottomNodeAdded ( Node & node )

private

Adds node to the set of bottom nodes in the region.

Parameters

node	The node that is now a bottom node.

See also: BottomNodes

Note: This method is automatically invoked when a node is created or becomes dead.

Definition at line 378 of file region.cpp.

◆ onBottomNodeRemoved()

void jlm::rvsdg::Region::onBottomNodeRemoved ( Node & node )

private

Removes node from the list of bottom nodes in the region.

Parameters

node	The node that is no longer a bottom node.

Note: This method is automatically invoked when a node ceases to be dead.

Definition at line 387 of file region.cpp.

◆ onNodeAdded()

void jlm::rvsdg::Region::onNodeAdded ( Node & node )

private

Adds node to the list of nodes in the region.

Parameters

node	The node that has been created in the region.

Note: This method is automatically invoked when a node is created.

Definition at line 395 of file region.cpp.

◆ onNodeRemoved()

void jlm::rvsdg::Region::onNodeRemoved ( Node & node )

private

Remove node from the region.

Parameters

node	The node that is removed.

Note: This method is automatically invoked when a node is deleted.

Definition at line 403 of file region.cpp.

◆ onTopNodeAdded()

void jlm::rvsdg::Region::onTopNodeAdded ( Node & node )

private

Adds node to the top nodes of the region.

Parameters

node	The node that is now a top node.

See also: TopNodes

Note: This method is automatically invoked when a top node is created.

Definition at line 361 of file region.cpp.

◆ onTopNodeRemoved()

void jlm::rvsdg::Region::onTopNodeRemoved ( Node & node )

private

Removes node from the list of top nodes in the region.

Parameters

node	The node that is no longer a top node.

Note: This method is automatically invoked when inputs are added to a node.

Definition at line 370 of file region.cpp.

◆ operator=()

Region & jlm::rvsdg::Region::operator= ( const Region & )

delete

◆ prune()

void jlm::rvsdg::Region::prune ( bool recursive )

Removes all dead nodes from the region, including nodes that become dead during pruning.

Parameters

recursive if true, any subregions are also pruned, as well as their subregions etc.

Definition at line 326 of file region.cpp.

◆ PruneArguments()

size_t jlm::rvsdg::Region::PruneArguments ( )

Remove all arguments that have no users.

Returns: The number of arguments that were removed.

Definition at line 241 of file region.cpp.

◆ RemoveArguments()

size_t jlm::rvsdg::Region::RemoveArguments ( const util::HashSet< size_t > & indices )

Remove all arguments that have no users and an index contained in indices.

Parameters

indices The indices of the arguments that should be removed.

Returns: The number of arguments that were actually removed. This might be less than the number of indices as some arguments might not have been dead or a provided argument index does not belong to an actual argument.

Definition at line 213 of file region.cpp.

◆ removeNode()

void jlm::rvsdg::Region::removeNode ( Node * node )

Deletes the given node from the region. The node must belong to this region, and be dead.

Parameters

node	the node to remove

Definition at line 309 of file region.cpp.

◆ RemoveResults()

size_t jlm::rvsdg::Region::RemoveResults ( const util::HashSet< size_t > & indices )

Remove all results that have an index contained in indices.

Parameters

indices The indices of the results that should be removed.

Returns: The number of results that were removed. This might be less than the number of indices as some provided result indices might not belong to an actual result.

Definition at line 281 of file region.cpp.

◆ result()

RegionResult * jlm::rvsdg::Region::result ( size_t index ) const

inlinenoexcept

Definition at line 500 of file region.hpp.

◆ Results() [1/2]

RegionResultConstRange jlm::rvsdg::Region::Results ( ) const

inlinenoexcept

Returns: Returns an iterator range for iterating through the results of the region.

Definition at line 346 of file region.hpp.

◆ Results() [2/2]

RegionResultRange jlm::rvsdg::Region::Results ( )

inlinenoexcept

Returns: Returns an iterator range for iterating through the results of the region.

Definition at line 337 of file region.hpp.

◆ toJson() [1/4]

std::string jlm::rvsdg::Region::toJson ( const Region & region )

staticnoexcept

Converts region and all of its contained structural nodes with subregions to a JSON string.

Parameters

region The top-level region that is converted.

Returns: A string containing the JSON of region.

Definition at line 500 of file region.cpp.

◆ toJson() [2/4]

std::string jlm::rvsdg::Region::toJson	(	const Region &	region,
		const util::AnnotationMap &	annotationMap
	)

staticnoexcept

Converts region and all of its contained structural nodes with subregions to a JSON string.

Parameters

region	The top-level region that is converted.
annotationMap	A map with annotations for instances of Regions or StructuralNodes.

Returns: A string containing the JSON of region.

Definition at line 492 of file region.cpp.

◆ toJson() [3/4]

void jlm::rvsdg::Region::toJson	(	const Region &	region,
		const util::AnnotationMap &	annotationMap,
		std::stringstream &	stream
	)

staticprivatenoexcept

Definition at line 509 of file region.cpp.

◆ toJson() [4/4]

void jlm::rvsdg::Region::toJson	(	const StructuralNode &	structuralNode,
		const util::AnnotationMap &	annotationMap,
		std::stringstream &	stream
	)

staticprivatenoexcept

Definition at line 570 of file region.cpp.

◆ toJsonKeyValue()

std::string jlm::rvsdg::Region::toJsonKeyValue ( const util::Annotation & annotation )

staticprivatenoexcept

Definition at line 622 of file region.cpp.

◆ TopNodes() [1/2]

TopNodeConstRange jlm::rvsdg::Region::TopNodes ( ) const

inlinenoexcept

Returns: Returns an iterator range for iterating through the top nodes of the region. The top nodes are all nodes that do not have any inputs.

Definition at line 366 of file region.hpp.

◆ TopNodes() [2/2]

TopNodeRange jlm::rvsdg::Region::TopNodes ( )

inlinenoexcept

Returns: Returns an iterator range for iterating through the top nodes of the region. The top nodes are all nodes that do not have any inputs.

Definition at line 356 of file region.hpp.

◆ ToString() [1/2]

std::string jlm::rvsdg::Region::ToString	(	const std::vector< util::Annotation > &	annotations,
		char	annotationSeparator,
		char	labelValueSeparator
	)

staticprivate

Definition at line 724 of file region.cpp.

◆ ToString() [2/2]

std::string jlm::rvsdg::Region::ToString	(	const util::Annotation &	annotation,
		char	labelValueSeparator
	)

staticprivate

Definition at line 740 of file region.cpp.

◆ ToTree() [1/3]

std::string jlm::rvsdg::Region::ToTree ( const rvsdg::Region & region )

staticnoexcept

Converts region and all of its contained structural nodes with subregions to a tree in ASCII format of the following form:

RootRegion
-STRUCTURAL_TEST_NODE
–Region[0]
–Region[1]
—STRUCTURAL_TEST_NODE
-—Region[0]
-—Region[1]
-—Region[2]

The above tree has a single structural node in the RVSDG's root region. This node has two subregions, where the second subregion contains another structural node with three subregions.

Parameters

region The top-level region that is converted

Returns: A string containing the ASCII tree of region

Definition at line 658 of file region.cpp.

◆ ToTree() [2/3]

std::string jlm::rvsdg::Region::ToTree	(	const rvsdg::Region &	region,
		const util::AnnotationMap &	annotationMap
	)

staticnoexcept

Converts region and all of its contained structural nodes with subregions to a tree in ASCII format of the following form:

RootRegion
-STRUCTURAL_TEST_NODE
–Region[0]
–Region[1]
—STRUCTURAL_TEST_NODE
-—Region[0]
-—Region[1]
-—Region[2] NumNodes:0 NumArguments:0

The above tree has a single structural node in the RVSDG's root region. This node has two subregions, where the second subregion contains another structural node with three subregions. For the third subregion, two annotations with label NumNodes and NumArguments was provided in annotationMap.

Parameters

region	The top-level region that is converted
annotationMap	A map with annotations for instances of Regions or StructuralNodes.

Returns: A string containing the ASCII tree of region.

Definition at line 650 of file region.cpp.

◆ ToTree() [3/3]

void jlm::rvsdg::Region::ToTree	(	const rvsdg::Region &	region,
		const util::AnnotationMap &	annotationMap,
		size_t	indentationDepth,
		std::stringstream &	stream
	)

staticprivatenoexcept

Definition at line 667 of file region.cpp.

◆ view()

void jlm::rvsdg::Region::view ( ) const

This function is meant to be used from the debugger. You can just invoke it and a xdot window should pop up with a DOT visualization of the region. This depends on xdot being in the PATH.

Definition at line 345 of file region.cpp.

Friends And Related Symbol Documentation

◆ Input

friend class Input

friend

Definition at line 873 of file region.hpp.

◆ Node

friend class Node

friend

Definition at line 869 of file region.hpp.

◆ Output

friend class Output

friend

Definition at line 874 of file region.hpp.

◆ RegionObserver

friend class RegionObserver

friend

Definition at line 870 of file region.hpp.

◆ RegionResult

friend class RegionResult

friend

Definition at line 875 of file region.hpp.

◆ SimpleNode

friend class SimpleNode

friend

Definition at line 871 of file region.hpp.

◆ StructuralNode

friend class StructuralNode

friend

Definition at line 872 of file region.hpp.

Member Data Documentation

◆ arguments_

std::vector<RegionArgument *> jlm::rvsdg::Region::arguments_

private

Definition at line 855 of file region.hpp.

◆ bottomNodes_

region_bottom_node_list jlm::rvsdg::Region::bottomNodes_

private

Definition at line 858 of file region.hpp.

◆ depth_

const size_t jlm::rvsdg::Region::depth_

private

The depth of the region. The root region has depth 0, all others have parent region depth + 1.

Definition at line 837 of file region.hpp.

◆ graph_

Graph* const jlm::rvsdg::Region::graph_

private

The graph this region belongs to.

Definition at line 829 of file region.hpp.

◆ id_

const Id jlm::rvsdg::Region::id_

private

A region ID unique to all regions in the graph.

Definition at line 833 of file region.hpp.

◆ index_

const size_t jlm::rvsdg::Region::index_

private

The index of the region, if it is a subregion of a structural node.

Definition at line 846 of file region.hpp.

◆ nextNodeId_

Node::Id jlm::rvsdg::Region::nextNodeId_

private

The ID that will be given to the next node created in this region.

Definition at line 851 of file region.hpp.

◆ node_

rvsdg::StructuralNode* const jlm::rvsdg::Region::node_

private

The structural node this region belongs to, or nullptr if it is the root region.

Definition at line 842 of file region.hpp.

◆ nodes_

region_nodes_list jlm::rvsdg::Region::nodes_

private

Definition at line 860 of file region.hpp.

◆ numBottomNodes_

size_t jlm::rvsdg::Region::numBottomNodes_

private

Definition at line 859 of file region.hpp.

◆ numNodes_

size_t jlm::rvsdg::Region::numNodes_

private

Definition at line 861 of file region.hpp.

◆ numTopNodes_

size_t jlm::rvsdg::Region::numTopNodes_

private

Definition at line 857 of file region.hpp.

◆ observers_

RegionObserver* jlm::rvsdg::Region::observers_ = nullptr

mutableprivate

A linked list of RegionObservers registered on the Region. The field is mutable to allow observers to register on const Regions.

Definition at line 867 of file region.hpp.

◆ results_

std::vector<RegionResult *> jlm::rvsdg::Region::results_

private

Definition at line 854 of file region.hpp.

◆ topNodes_

region_top_node_list jlm::rvsdg::Region::topNodes_

private

Definition at line 856 of file region.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/region.hpp
jlm/rvsdg/region.cpp
jlm/rvsdg/structural-node.hpp

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ BottomNodeConstIterator

◆ BottomNodeConstRange

◆ BottomNodeIterator

◆ BottomNodeRange

◆ Id

◆ NodeConstIterator

◆ NodeConstRange

◆ NodeIterator

◆ NodeRange

◆ region_bottom_node_list

◆ region_nodes_list

◆ region_top_node_list

◆ RegionArgumentConstIterator

◆ RegionArgumentConstRange

◆ RegionArgumentIterator

◆ RegionArgumentRange

◆ RegionResultConstIterator

◆ RegionResultConstRange

◆ RegionResultIterator

◆ RegionResultRange

◆ TopNodeConstIterator

◆ TopNodeConstRange

◆ TopNodeIterator

◆ TopNodeRange

Constructor & Destructor Documentation

◆ ~Region()

◆ Region() [1/3]

◆ Region() [2/3]

◆ Region() [3/3]

Member Function Documentation

◆ addArgument()

◆ addResult()

◆ argument()

◆ Arguments() [1/2]

◆ Arguments() [2/2]

◆ BottomNodes() [1/2]

◆ BottomNodes() [2/2]

◆ containsNodeType()

◆ containsOperation()

◆ copy()

◆ generateNodeId()

◆ GetAnnotationString()

◆ getDepth()

◆ getNextNodeId()

◆ getRegionId()

◆ graph()

◆ index()

◆ insertArgument()

◆ isAncestor()

◆ IsRootRegion()

◆ narguments()

◆ node()

◆ Nodes() [1/2]

◆ Nodes() [2/2]

◆ notifyInputChange()

◆ notifyInputCreate()

◆ notifyInputDestroy()

◆ notifyNodeCreate()

◆ notifyNodeDestroy()

◆ nresults()

◆ numBottomNodes()

◆ numNodes()

◆ NumRegions()

◆ numTopNodes()

◆ onBottomNodeAdded()

◆ onBottomNodeRemoved()

◆ onNodeAdded()

◆ onNodeRemoved()

◆ onTopNodeAdded()

◆ onTopNodeRemoved()
