jlm::rvsdg::StructuralNode Class Reference

#include <structural-node.hpp>

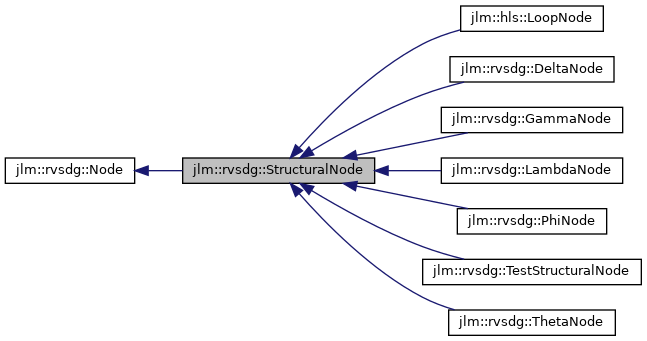

Inheritance diagram for jlm::rvsdg::StructuralNode:

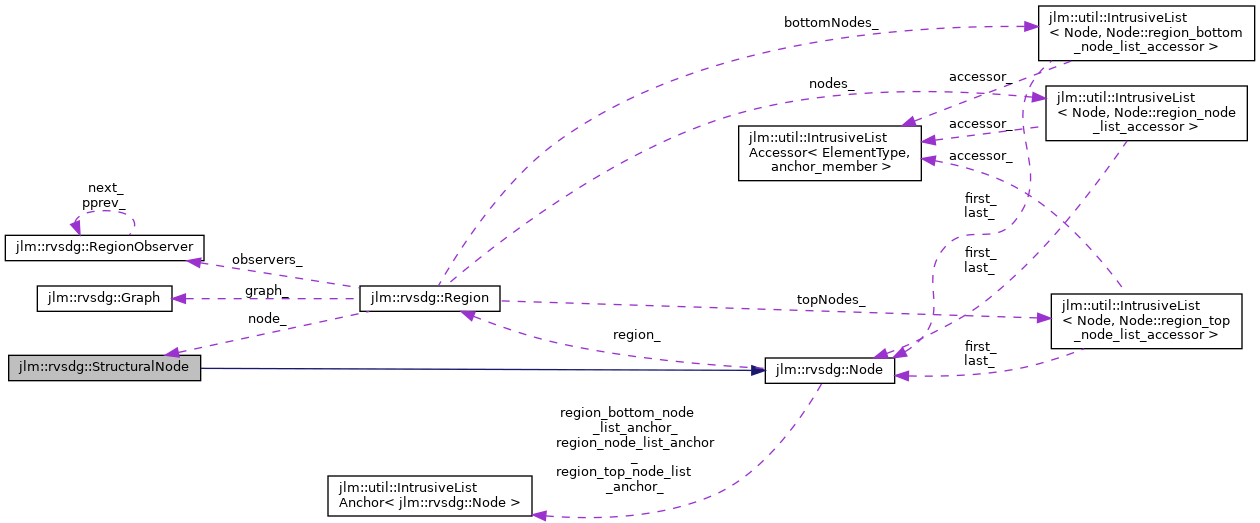

Collaboration diagram for jlm::rvsdg::StructuralNode:

Public Member Functions
	~StructuralNode () noexcept override
std::string	DebugString () const override
size_t	nsubregions () const noexcept
rvsdg::Region *	subregion (size_t index) const noexcept
SubregionIteratorRange	Subregions ()
SubregionConstIteratorRange	Subregions () const
StructuralInput *	input (size_t index) const noexcept
StructuralOutput *	output (size_t index) const noexcept
Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()
	Node (Region *region)
Id	GetNodeId () const noexcept
virtual const Operation &	GetOperation () const noexcept=0
size_t	ninputs () const noexcept
NodeInput *	input (size_t index) const noexcept
InputIteratorRange	Inputs () noexcept
InputConstIteratorRange	Inputs () const noexcept
size_t	noutputs () const noexcept
NodeOutput *	output (size_t index) const noexcept
OutputIteratorRange	Outputs () noexcept
OutputConstIteratorRange	Outputs () const noexcept
bool	IsDead () const noexcept
	Determines whether the node is dead. More...
std::size_t	numSuccessors () const noexcept
size_t	RemoveInputs (const util::HashSet< size_t > &indices)
size_t	RemoveOutputs (const util::HashSet< size_t > &indices)
Graph *	graph () const noexcept
rvsdg::Region *	region () const noexcept
virtual Node *	copy (rvsdg::Region *region, const std::vector< jlm::rvsdg::Output * > &operands) const
virtual Node *	copy (rvsdg::Region *region, SubstitutionMap &smap) const =0
	Copy a node with substitutions. More...

Protected Member Functions
	StructuralNode (rvsdg::Region *region, size_t nsubregions)
StructuralInput *	addInput (std::unique_ptr< StructuralInput > input, bool notifyRegion)
StructuralOutput *	addOutput (std::unique_ptr< StructuralOutput > input)
Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)
NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Private Types
using	SubregionIterator = util::PtrIterator< Region, std::vector< std::unique_ptr< Region > >::iterator >
using	SubregionConstIterator = util::PtrIterator< const Region, std::vector< std::unique_ptr< Region > >::const_iterator >
using	SubregionIteratorRange = util::IteratorRange< SubregionIterator >
using	SubregionConstIteratorRange = util::IteratorRange< SubregionConstIterator >

Private Attributes
std::vector< std::unique_ptr< rvsdg::Region > >	subregions_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t
using	InputIteratorRange = util::IteratorRange< Input::Iterator >
using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >
using	OutputIteratorRange = util::IteratorRange< Output::Iterator >
using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >
typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor
typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor
typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Detailed Description

Definition at line 23 of file structural-node.hpp.

Member Typedef Documentation

SubregionConstIterator

using jlm::rvsdg::StructuralNode::SubregionConstIterator = util::PtrIterator<const Region, std::vector<std::unique_ptr<Region> >::const_iterator>

private

Definition at line 27 of file structural-node.hpp.

SubregionConstIteratorRange

using jlm::rvsdg::StructuralNode::SubregionConstIteratorRange = util::IteratorRange<SubregionConstIterator>

private

Definition at line 31 of file structural-node.hpp.

SubregionIterator

using jlm::rvsdg::StructuralNode::SubregionIterator = util::PtrIterator<Region, std::vector<std::unique_ptr<Region> >::iterator>

private

Definition at line 25 of file structural-node.hpp.

SubregionIteratorRange

using jlm::rvsdg::StructuralNode::SubregionIteratorRange = util::IteratorRange<SubregionIterator>

private

Definition at line 30 of file structural-node.hpp.

Constructor & Destructor Documentation

~StructuralNode()

jlm::rvsdg::StructuralNode::~StructuralNode ( )

overridenoexcept

Definition at line 40 of file structural-node.cpp.

StructuralNode()

jlm::rvsdg::StructuralNode::StructuralNode ( rvsdg::Region *  region, size_t  nsubregions  )

protected

Definition at line 47 of file structural-node.cpp.

Member Function Documentation

addInput()

StructuralInput * jlm::rvsdg::StructuralNode::addInput ( std::unique_ptr< StructuralInput >  input, bool  notifyRegion  )

inlineprotected

Definition at line 150 of file structural-node.hpp.

addOutput()

StructuralOutput * jlm::rvsdg::StructuralNode::addOutput ( std::unique_ptr< StructuralOutput >  input )

inlineprotected

Definition at line 156 of file structural-node.hpp.

DebugString()

std::string jlm::rvsdg::StructuralNode::DebugString ( ) const

overridevirtual

Implements jlm::rvsdg::Node.

Definition at line 60 of file structural-node.cpp.

input()

StructuralInput * jlm::rvsdg::StructuralNode::input ( size_t  index ) const

inlinenoexcept

Definition at line 138 of file structural-node.hpp.

nsubregions()

size_t jlm::rvsdg::StructuralNode::nsubregions ( ) const

inlinenoexcept

Definition at line 44 of file structural-node.hpp.

output()

StructuralOutput * jlm::rvsdg::StructuralNode::output ( size_t  index ) const

inlinenoexcept

Definition at line 144 of file structural-node.hpp.

subregion()

rvsdg::Region* jlm::rvsdg::StructuralNode::subregion ( size_t  index ) const

inlinenoexcept

Definition at line 50 of file structural-node.hpp.

Subregions() [1/2]

SubregionIteratorRange jlm::rvsdg::StructuralNode::Subregions ( )

inline

Definition at line 57 of file structural-node.hpp.

Subregions() [2/2]

SubregionConstIteratorRange jlm::rvsdg::StructuralNode::Subregions ( ) const

inline

Definition at line 63 of file structural-node.hpp.

Member Data Documentation

subregions_

std::vector<std::unique_ptr<rvsdg::Region> > jlm::rvsdg::StructuralNode::subregions_

private

Definition at line 83 of file structural-node.hpp.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/structural-node.hpp
• jlm/rvsdg/structural-node.cpp
