#include <node.hpp>

Inheritance diagram for jlm::rvsdg::Node:

[legend]

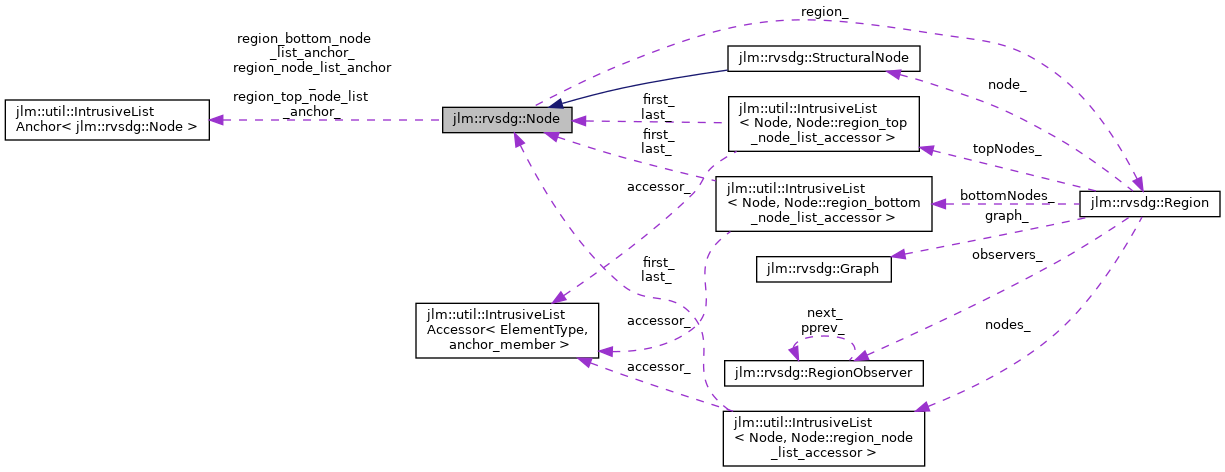

Collaboration diagram for jlm::rvsdg::Node:

[legend]

Public Types
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Public Member Functions
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

virtual const Operation &	GetOperation () const noexcept=0

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

virtual std::string	DebugString () const =0

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

virtual Node *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const

virtual Node *	copy (rvsdg::Region *region, SubstitutionMap &smap) const =0
	Copy a node with substitutions. More...

Protected Member Functions
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Private Attributes
util::IntrusiveListAnchor< Node >	region_node_list_anchor_ {}

util::IntrusiveListAnchor< Node >	region_top_node_list_anchor_ {}

util::IntrusiveListAnchor< Node >	region_bottom_node_list_anchor_ {}

Id	Id_

Region *	region_

std::vector< std::unique_ptr< NodeInput > >	inputs_

std::vector< std::unique_ptr< NodeOutput > >	outputs_

std::size_t	numSuccessors_ = 0

Friends
class	Output

Detailed Description

Definition at line 580 of file node.hpp.

Member Typedef Documentation

◆ Id

using jlm::rvsdg::Node::Id = uint64_t

Definition at line 583 of file node.hpp.

◆ InputConstIteratorRange

using jlm::rvsdg::Node::InputConstIteratorRange = util::IteratorRange<Input::ConstIterator>

Definition at line 586 of file node.hpp.

◆ InputIteratorRange

using jlm::rvsdg::Node::InputIteratorRange = util::IteratorRange<Input::Iterator>

Definition at line 585 of file node.hpp.

◆ OutputConstIteratorRange

using jlm::rvsdg::Node::OutputConstIteratorRange = util::IteratorRange<Output::ConstIterator>

Definition at line 588 of file node.hpp.

◆ OutputIteratorRange

using jlm::rvsdg::Node::OutputIteratorRange = util::IteratorRange<Output::Iterator>

Definition at line 587 of file node.hpp.

◆ region_bottom_node_list_accessor

typedef util::IntrusiveListAccessor<Node, &Node::region_bottom_node_list_anchor_> jlm::rvsdg::Node::region_bottom_node_list_accessor

Definition at line 803 of file node.hpp.

◆ region_node_list_accessor

typedef util::IntrusiveListAccessor<Node, &Node::region_node_list_anchor_> jlm::rvsdg::Node::region_node_list_accessor

Definition at line 797 of file node.hpp.

◆ region_top_node_list_accessor

typedef util::IntrusiveListAccessor<Node, &Node::region_top_node_list_anchor_> jlm::rvsdg::Node::region_top_node_list_accessor

Definition at line 800 of file node.hpp.

Constructor & Destructor Documentation

◆ ~Node()

jlm::rvsdg::Node::~Node ( )

virtual

Definition at line 265 of file node.cpp.

◆ Node()

jlm::rvsdg::Node::Node ( Region * region )

explicit

Definition at line 256 of file node.cpp.

Member Function Documentation

◆ addInput()

NodeInput * jlm::rvsdg::Node::addInput	(	std::unique_ptr< NodeInput >	input,
		bool	notifyRegion
	)

protected

Adds the given input to the node's inputs. Invalidates existing iterators to the node's inputs.

Parameters

input	an owned pointer to the new input
notifyRegion	If true, the region is informed about the new input. This should be false if the node has not yet notified the region about being created, i.e., this function is being called from the node's constructor.

Returns: a pointer to the added input

Definition at line 288 of file node.cpp.

◆ addOutput()

NodeOutput* jlm::rvsdg::Node::addOutput ( std::unique_ptr< NodeOutput > output )

inlineprotected

Definition at line 732 of file node.hpp.

◆ copy() [1/2]

Node * jlm::rvsdg::Node::copy	(	rvsdg::Region *	region,
		const std::vector< jlm::rvsdg::Output * > &	operands
	)		const

virtual

Reimplemented in jlm::rvsdg::LambdaNode, and jlm::rvsdg::DeltaNode.

Definition at line 369 of file node.cpp.

◆ copy() [2/2]

virtual Node* jlm::rvsdg::Node::copy	(	rvsdg::Region *	region,
		SubstitutionMap &	smap
	)		const

pure virtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implemented in jlm::rvsdg::ThetaNode, jlm::rvsdg::PhiNode, jlm::rvsdg::LambdaNode, jlm::rvsdg::DeltaNode, jlm::hls::LoopNode, jlm::rvsdg::TestStructuralNode, jlm::rvsdg::SimpleNode, and jlm::rvsdg::GammaNode.

◆ DebugString()

virtual std::string jlm::rvsdg::Node::DebugString ( ) const

pure virtual

Implemented in jlm::rvsdg::StructuralNode, and jlm::rvsdg::SimpleNode.

◆ GetNodeId()

Id jlm::rvsdg::Node::GetNodeId ( ) const

inlinenoexcept

Returns: The unique identifier of the node instance within the region.

See also: Region::generateNodeId()

Definition at line 600 of file node.hpp.

◆ GetOperation()

virtual const Operation& jlm::rvsdg::Node::GetOperation ( ) const

pure virtualnoexcept

Implemented in jlm::rvsdg::ThetaNode, jlm::rvsdg::TestStructuralNode, jlm::rvsdg::SimpleNode, jlm::rvsdg::PhiNode, jlm::rvsdg::LambdaNode, jlm::rvsdg::GammaNode, jlm::rvsdg::DeltaNode, and jlm::hls::LoopNode.

◆ graph()

Graph * jlm::rvsdg::Node::graph ( ) const

noexcept

Definition at line 282 of file node.cpp.

◆ input()

NodeInput* jlm::rvsdg::Node::input ( size_t index ) const

inlinenoexcept

Definition at line 615 of file node.hpp.

◆ Inputs() [1/2]

InputConstIteratorRange jlm::rvsdg::Node::Inputs ( ) const

inlinenoexcept

Definition at line 633 of file node.hpp.

◆ Inputs() [2/2]

InputIteratorRange jlm::rvsdg::Node::Inputs ( )

inlinenoexcept

Definition at line 622 of file node.hpp.

◆ IsDead()

bool jlm::rvsdg::Node::IsDead ( ) const

inlinenoexcept

Determines whether the node is dead.

A node is considered dead if all its outputs are dead.

Returns: True, if the node is dead, otherwise false.

See also: output::IsDead()

Definition at line 688 of file node.hpp.

◆ ninputs()

size_t jlm::rvsdg::Node::ninputs ( ) const

inlinenoexcept

Definition at line 609 of file node.hpp.

◆ noutputs()

size_t jlm::rvsdg::Node::noutputs ( ) const

inlinenoexcept

Definition at line 644 of file node.hpp.

◆ numSuccessors()

std::size_t jlm::rvsdg::Node::numSuccessors ( ) const

inlinenoexcept

Definition at line 694 of file node.hpp.

◆ output()

NodeOutput* jlm::rvsdg::Node::output ( size_t index ) const

inlinenoexcept

Definition at line 650 of file node.hpp.

◆ Outputs() [1/2]

OutputConstIteratorRange jlm::rvsdg::Node::Outputs ( ) const

inlinenoexcept

Definition at line 668 of file node.hpp.

◆ Outputs() [2/2]

OutputIteratorRange jlm::rvsdg::Node::Outputs ( )

inlinenoexcept

Definition at line 657 of file node.hpp.

◆ region()

rvsdg::Region* jlm::rvsdg::Node::region ( ) const

inlinenoexcept

Definition at line 761 of file node.hpp.

◆ RemoveInputs()

size_t jlm::rvsdg::Node::RemoveInputs ( const util::HashSet< size_t > & indices )

Removes all inputs that have an index in indices.

Parameters

indices The indices of the inputs that should be removed.

Returns: The number of inputs that were removed. This might be less than the number of indices as some provided input indices might not belong to an actual input.

Definition at line 306 of file node.cpp.

◆ RemoveOutputs()

size_t jlm::rvsdg::Node::RemoveOutputs ( const util::HashSet< size_t > & indices )

Removes all outputs that have no users and an index contained in indices.

Parameters

indices The indices of the outputs that should be removed.

Returns: The number of outputs that were actually removed. This might be less than the number of indices as some outputs might not have been dead or a provided output index does not belong to an output argument.

See also: output::nusers()

Definition at line 342 of file node.cpp.

Friends And Related Function Documentation

◆ Output

friend class Output

friend

Definition at line 812 of file node.hpp.

Member Data Documentation

◆ Id_

Id jlm::rvsdg::Node::Id_

private

Definition at line 806 of file node.hpp.

◆ inputs_

std::vector<std::unique_ptr<NodeInput> > jlm::rvsdg::Node::inputs_

private

Definition at line 808 of file node.hpp.

◆ numSuccessors_

std::size_t jlm::rvsdg::Node::numSuccessors_ = 0

private

Definition at line 810 of file node.hpp.

◆ outputs_

std::vector<std::unique_ptr<NodeOutput> > jlm::rvsdg::Node::outputs_

private

Definition at line 809 of file node.hpp.

◆ region_

Region* jlm::rvsdg::Node::region_

private

Definition at line 807 of file node.hpp.

◆ region_bottom_node_list_anchor_

util::IntrusiveListAnchor<Node> jlm::rvsdg::Node::region_bottom_node_list_anchor_ {}

private

Definition at line 793 of file node.hpp.

◆ region_node_list_anchor_

util::IntrusiveListAnchor<Node> jlm::rvsdg::Node::region_node_list_anchor_ {}

private

Definition at line 789 of file node.hpp.

◆ region_top_node_list_anchor_

util::IntrusiveListAnchor<Node> jlm::rvsdg::Node::region_top_node_list_anchor_ {}

private

Definition at line 791 of file node.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/node.hpp
jlm/rvsdg/node.cpp
