#include <TestNodes.hpp>

Inheritance diagram for jlm::rvsdg::TestStructuralNode:

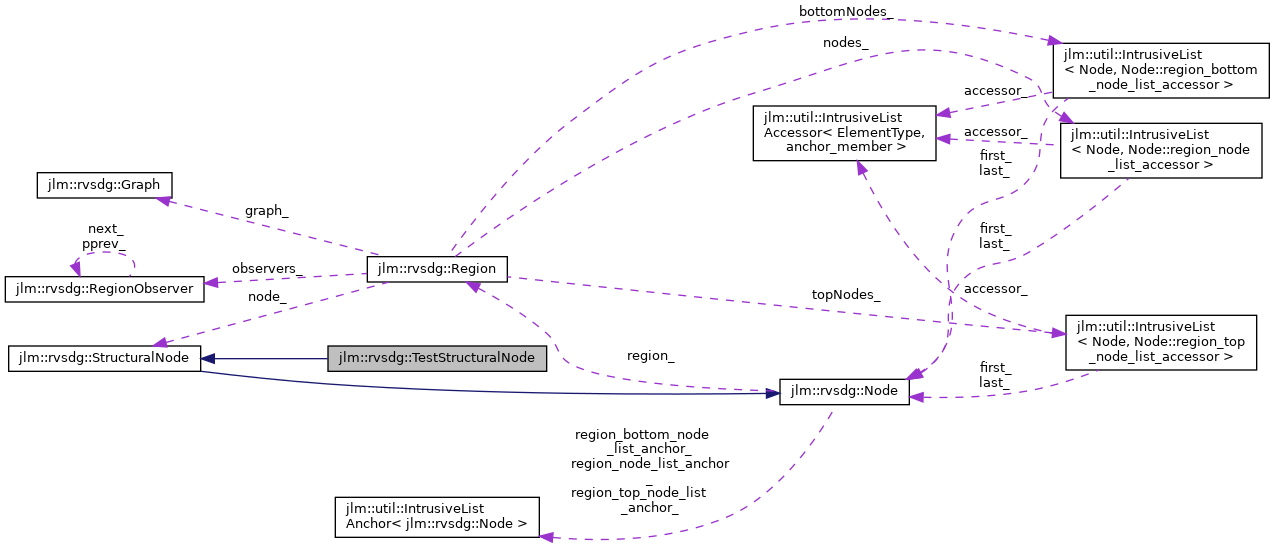

Collaboration diagram for jlm::rvsdg::TestStructuralNode:

[legend]

Classes
struct	InputVar
	A variable routed in a TestStructuralNode. More...

struct	OutputVar
	A variable routed out of a TestStructuralNode. More...

Public Member Functions
	~TestStructuralNode () noexcept override

StructuralInput &	addInputOnly (Output &origin)

InputVar	addInputWithArguments (Output &origin)

void	removeInputAndArguments (size_t index)

InputVar	addArguments (const std::shared_ptr< const Type > &type)

StructuralOutput &	addOutputOnly (std::shared_ptr< const Type > type)

OutputVar	addOutputWithResults (const std::vector< Output * > &origins)

void	removeOutputAndResults (size_t index)

OutputVar	addResults (const std::vector< Output * > &origins)

InputVar	mapInput (const Input &input) const

OutputVar	mapOutput (const Output &output) const

const TestStructuralOperation &	GetOperation () const noexcept override

TestStructuralNode *	copy (Region *region, SubstitutionMap &smap) const override
	Copy a node with substitutions. More...

Public Member Functions inherited from jlm::rvsdg::StructuralNode
	~StructuralNode () noexcept override

std::string	DebugString () const override

size_t	nsubregions () const noexcept

rvsdg::Region *	subregion (size_t index) const noexcept

SubregionIteratorRange	Subregions ()

SubregionConstIteratorRange	Subregions () const

StructuralInput *	input (size_t index) const noexcept

StructuralOutput *	output (size_t index) const noexcept

Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

virtual Node *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const

Static Public Member Functions
static TestStructuralNode *	create (Region *parent, const size_t numSubregions)

Private Member Functions
	TestStructuralNode (Region *parent, size_t numSubregions)

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Protected Member Functions inherited from jlm::rvsdg::StructuralNode
	StructuralNode (rvsdg::Region *region, size_t nsubregions)

StructuralInput *	addInput (std::unique_ptr< StructuralInput > input, bool notifyRegion)

StructuralOutput *	addOutput (std::unique_ptr< StructuralOutput > input)

Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Detailed Description

Definition at line 27 of file TestNodes.hpp.

Constructor & Destructor Documentation

◆ ~TestStructuralNode()

jlm::rvsdg::TestStructuralNode::~TestStructuralNode ( )

overridedefaultnoexcept

◆ TestStructuralNode()

jlm::rvsdg::TestStructuralNode::TestStructuralNode	(	Region *	parent,
		size_t	numSubregions
	)

inlineprivate

Definition at line 33 of file TestNodes.hpp.

Member Function Documentation

◆ addArguments()

TestStructuralNode::InputVar jlm::rvsdg::TestStructuralNode::addArguments ( const std::shared_ptr< const Type > & type )

Add subregion arguments WITHOUT an input to a TestStructuralNode.

Parameters

type	The argument type

Returns: Description of input variable.

Definition at line 195 of file TestNodes.cpp.

◆ addInputOnly()

StructuralInput & jlm::rvsdg::TestStructuralNode::addInputOnly ( Output & origin )

Add an input WITHOUT subregion arguments to a TestStructuralNode.

Parameters

origin Value to be routed in.

Returns: The created input variable.

Definition at line 208 of file TestNodes.cpp.

◆ addInputWithArguments()

TestStructuralNode::InputVar jlm::rvsdg::TestStructuralNode::addInputWithArguments ( Output & origin )

Add an input WITH subregion arguments to a TestStructuralNode.

Parameters

origin Value to be routed in.

Returns: Description of input variable.

Definition at line 163 of file TestNodes.cpp.

◆ addOutputOnly()

StructuralOutput & jlm::rvsdg::TestStructuralNode::addOutputOnly ( std::shared_ptr< const Type > type )

Add an output WITHOUT subregion results to a TestStructuralNode.

Parameters

type	The output type

Returns: The created output variable.

Definition at line 214 of file TestNodes.cpp.

◆ addOutputWithResults()

TestStructuralNode::OutputVar jlm::rvsdg::TestStructuralNode::addOutputWithResults ( const std::vector< Output * > & origins )

Add an output WITH subregion results to a TestStructuralNode.

Parameters

origins The values to be routed out.

Returns: Description of output variable.

Definition at line 220 of file TestNodes.cpp.

◆ addResults()

TestStructuralNode::OutputVar jlm::rvsdg::TestStructuralNode::addResults ( const std::vector< Output * > & origins )

Add subregion results WITHOUT output to a TestStructuralNode.

Parameters

origins The values to be routed out.

Returns: Description of output variable.

Definition at line 257 of file TestNodes.cpp.

◆ copy()

TestStructuralNode * jlm::rvsdg::TestStructuralNode::copy	(	Region *	region,
		SubstitutionMap &	smap
	)		const

overridevirtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implements jlm::rvsdg::Node.

Definition at line 36 of file TestNodes.cpp.

◆ create()

static TestStructuralNode* jlm::rvsdg::TestStructuralNode::create	(	Region *	parent,
		const size_t	numSubregions
	)

inlinestatic

Definition at line 152 of file TestNodes.hpp.

◆ GetOperation()

const TestStructuralOperation & jlm::rvsdg::TestStructuralNode::GetOperation ( ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Node.

Definition at line 29 of file TestNodes.cpp.

◆ mapInput()

TestStructuralNode::InputVar jlm::rvsdg::TestStructuralNode::mapInput ( const Input & input ) const

Maps input to an InputVar

Parameters

input Input to be mapped

Returns: The variable description corresponding to this input.

Precondition: input must be an input of this node.

Definition at line 119 of file TestNodes.cpp.

◆ mapOutput()

TestStructuralNode::OutputVar jlm::rvsdg::TestStructuralNode::mapOutput ( const Output & output ) const

Maps output to an OutputVar

Parameters

output Output to be mapped

Returns: The variable description corresponding to this output.

Precondition: output must be an output of this node.

Definition at line 141 of file TestNodes.cpp.

◆ removeInputAndArguments()

void jlm::rvsdg::TestStructuralNode::removeInputAndArguments ( size_t index )

Removes the input with the given index, and any subregion arguments associated with it. All such arguments must be dead.

Parameters

index the index of the input to remove.

Definition at line 180 of file TestNodes.cpp.

◆ removeOutputAndResults()

void jlm::rvsdg::TestStructuralNode::removeOutputAndResults ( size_t index )

Removes the output with the given index, and any subregion results associated with it.

Parameters

index the index of the output to remove.

Definition at line 242 of file TestNodes.cpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/TestNodes.hpp
jlm/rvsdg/TestNodes.cpp
