jlm::rvsdg::Input Class Reference

#include <node.hpp>

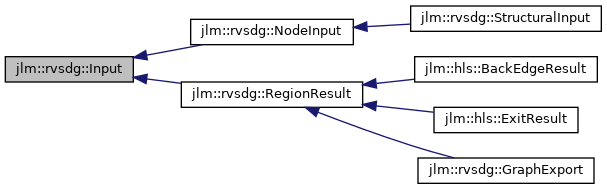

Inheritance diagram for jlm::rvsdg::Input:

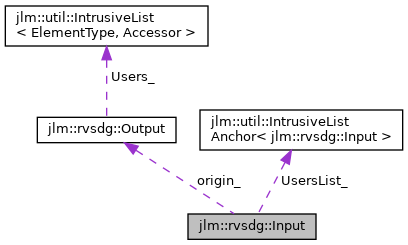

Collaboration diagram for jlm::rvsdg::Input:

Classes
class	ConstIterator
class	Iterator

Public Member Functions
virtual	~Input () noexcept
	Input (const Input &)=delete
	Input (Input &&)=delete
Input &	operator= (const Input &)=delete
Input &	operator= (Input &&)=delete
size_t	index () const noexcept
Output *	origin () const noexcept
void	divert_to (Output *new_origin)
const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept
Region *	region () const noexcept
virtual std::string	debug_string () const
std::variant< Node *, Region * >	GetOwner () const noexcept

Protected Member Functions
	Input (Node &owner, Output &origin, std::shared_ptr< const rvsdg::Type > type)
	Input (Region &owner, Output &origin, std::shared_ptr< const rvsdg::Type > type)

Private Types
using	UsersListAccessor = util::IntrusiveListAccessor< Input, &Input::UsersList_ >
using	UsersList = jlm::util::IntrusiveList< Input, UsersListAccessor >

Static Private Member Functions
static void	CheckTypes (const Region &region, const Output &origin, const std::shared_ptr< const rvsdg::Type > &type)

Private Attributes
size_t	index_
jlm::rvsdg::Output *	origin_ = nullptr
std::variant< Node *, Region * >	Owner_
std::shared_ptr< const rvsdg::Type >	Type_
jlm::util::IntrusiveListAnchor< Input >	UsersList_

Friends
class	Node
class	Region
class	Output

Detailed Description

Definition at line 28 of file node.hpp.

Member Typedef Documentation

UsersList

using jlm::rvsdg::Input::UsersList = jlm::util::IntrusiveList<Input, UsersListAccessor>

private

Definition at line 229 of file node.hpp.

UsersListAccessor

using jlm::rvsdg::Input::UsersListAccessor = util::IntrusiveListAccessor<Input, &Input::UsersList_>

private

Definition at line 228 of file node.hpp.

Constructor & Destructor Documentation

Input() [1/4]

jlm::rvsdg::Input::Input ( rvsdg::Node &  owner, rvsdg::Output &  origin, std::shared_ptr< const rvsdg::Type >  type  )

protected

Definition at line 37 of file node.cpp.

Input() [2/4]

jlm::rvsdg::Input::Input ( rvsdg::Region &  owner, rvsdg::Output &  origin, std::shared_ptr< const rvsdg::Type >  type  )

protected

Definition at line 47 of file node.cpp.

~Input()

jlm::rvsdg::Input::~Input ( )

virtualnoexcept

Definition at line 19 of file node.cpp.

Input() [3/4]

jlm::rvsdg::Input::Input ( const Input &  )

delete

Input() [4/4]

jlm::rvsdg::Input::Input ( Input &&  )

delete

Member Function Documentation

CheckTypes()

void jlm::rvsdg::Input::CheckTypes ( const Region &  region, const Output &  origin, const std::shared_ptr< const rvsdg::Type > &  type  )

staticprivate

Definition at line 25 of file node.cpp.

debug_string()

std::string jlm::rvsdg::Input::debug_string ( ) const

virtual

Reimplemented in jlm::rvsdg::RegionResult, and jlm::rvsdg::GraphExport.

Definition at line 58 of file node.cpp.

divert_to()

void jlm::rvsdg::Input::divert_to

(

Output *

new_origin

)

Definition at line 64 of file node.cpp.

GetOwner()

std::variant<Node *, Region *> jlm::rvsdg::Input::GetOwner ( ) const

inlinenoexcept

Definition at line 79 of file node.hpp.

index()

size_t jlm::rvsdg::Input::index ( ) const

inlinenoexcept

Definition at line 52 of file node.hpp.

operator=() [1/2]

Input& jlm::rvsdg::Input::operator= ( const Input &  )

delete

operator=() [2/2]

Input& jlm::rvsdg::Input::operator= ( Input &&  )

delete

origin()

Output* jlm::rvsdg::Input::origin ( ) const

inlinenoexcept

Definition at line 58 of file node.hpp.

region()

rvsdg::Region * jlm::rvsdg::Input::region ( ) const

noexcept

Definition at line 83 of file node.cpp.

Type()

const std::shared_ptr<const rvsdg::Type>& jlm::rvsdg::Input::Type ( ) const

inlinenoexcept

Definition at line 67 of file node.hpp.

Friends And Related Function Documentation

Node

friend class Node

friend

Definition at line 30 of file node.hpp.

Output

friend class Output

friend

Definition at line 231 of file node.hpp.

Region

friend class Region

friend

Definition at line 31 of file node.hpp.

Member Data Documentation

index_

size_t jlm::rvsdg::Input::index_

private

Definition at line 223 of file node.hpp.

origin_

jlm::rvsdg::Output* jlm::rvsdg::Input::origin_ = nullptr

private

Definition at line 224 of file node.hpp.

Owner_

std::variant<Node *, Region *> jlm::rvsdg::Input::Owner_

private

Definition at line 225 of file node.hpp.

Type_

std::shared_ptr<const rvsdg::Type> jlm::rvsdg::Input::Type_

private

Definition at line 226 of file node.hpp.

UsersList_

jlm::util::IntrusiveListAnchor<Input> jlm::rvsdg::Input::UsersList_

private

Definition at line 227 of file node.hpp.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/node.hpp
• jlm/rvsdg/node.cpp
