#include <graph.hpp>

Inheritance diagram for jlm::rvsdg::GraphExport:

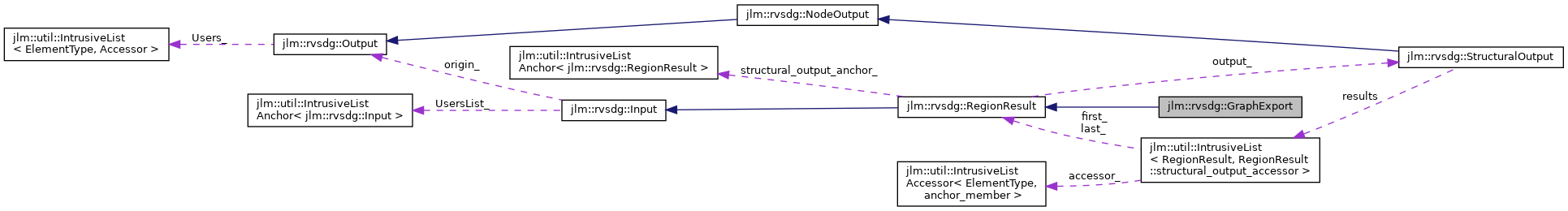

Collaboration diagram for jlm::rvsdg::GraphExport:

[legend]

Public Member Functions
const std::string &	Name () const noexcept

std::string	debug_string () const override

GraphExport &	Copy (Output &origin, StructuralOutput *output) const override

Public Member Functions inherited from jlm::rvsdg::RegionResult
	~RegionResult () noexcept override

	RegionResult (rvsdg::Region region, rvsdg::Output origin, StructuralOutput *output, std::shared_ptr< const rvsdg::Type > type)

	RegionResult (const RegionResult &)=delete

	RegionResult (RegionResult &&)=delete

RegionResult &	operator= (const RegionResult &)=delete

RegionResult &	operator= (RegionResult &&)=delete

std::string	debug_string () const override

StructuralOutput *	output () const noexcept

Public Member Functions inherited from jlm::rvsdg::Input
virtual	~Input () noexcept

	Input (const Input &)=delete

	Input (Input &&)=delete

Input &	operator= (const Input &)=delete

Input &	operator= (Input &&)=delete

size_t	index () const noexcept

Output *	origin () const noexcept

void	divert_to (Output *new_origin)

const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept

Region *	region () const noexcept

std::variant< Node , Region >	GetOwner () const noexcept

Static Public Member Functions
static GraphExport &	Create (Output &origin, std::string name)

Static Public Member Functions inherited from jlm::rvsdg::RegionResult
static RegionResult &	Create (rvsdg::Region &region, rvsdg::Output &origin, StructuralOutput *output, std::shared_ptr< const rvsdg::Type > type)
	Create region exit result. More...

Protected Member Functions
	GraphExport (Output &origin, std::string name)

Protected Member Functions inherited from jlm::rvsdg::Input
	Input (Node &owner, Output &origin, std::shared_ptr< const rvsdg::Type > type)

	Input (Region &owner, Output &origin, std::shared_ptr< const rvsdg::Type > type)

Private Attributes
std::string	Name_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::RegionResult
typedef util::IntrusiveListAccessor< RegionResult, &RegionResult::structural_output_anchor_ >	structural_output_accessor

Detailed Description

Represents an export from the RVSDG of an internal entity.

Definition at line 46 of file graph.hpp.

Constructor & Destructor Documentation

◆ GraphExport()

jlm::rvsdg::GraphExport::GraphExport	(	rvsdg::Output &	origin,
		std::string	name
	)

protected

Definition at line 43 of file graph.cpp.

Member Function Documentation

◆ Copy()

GraphExport & jlm::rvsdg::GraphExport::Copy	(	Output &	origin,
		StructuralOutput *	output
	)		const

overridevirtual

Creates a copy of the result with origin and structural_output output. The result is created with the same type as origin and in the same region as origin.

Parameters

origin	The origin for the result.
output	The structural_output to the result, if any.

Returns: A reference to the copied result.

Reimplemented from jlm::rvsdg::RegionResult.

Definition at line 55 of file graph.cpp.

◆ Create()

GraphExport & jlm::rvsdg::GraphExport::Create	(	Output &	origin,
		std::string	name
	)

static

Definition at line 62 of file graph.cpp.

◆ debug_string()

std::string jlm::rvsdg::GraphExport::debug_string ( ) const

overridevirtual

Reimplemented from jlm::rvsdg::Input.

Definition at line 49 of file graph.cpp.

◆ Name()

const std::string& jlm::rvsdg::GraphExport::Name ( ) const

inlinenoexcept

Definition at line 53 of file graph.hpp.

Member Data Documentation

◆ Name_

std::string jlm::rvsdg::GraphExport::Name_

private

Definition at line 68 of file graph.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/graph.hpp
jlm/rvsdg/graph.cpp
