Lambda node. More...

#include <lambda.hpp>

Inheritance diagram for jlm::rvsdg::LambdaNode:

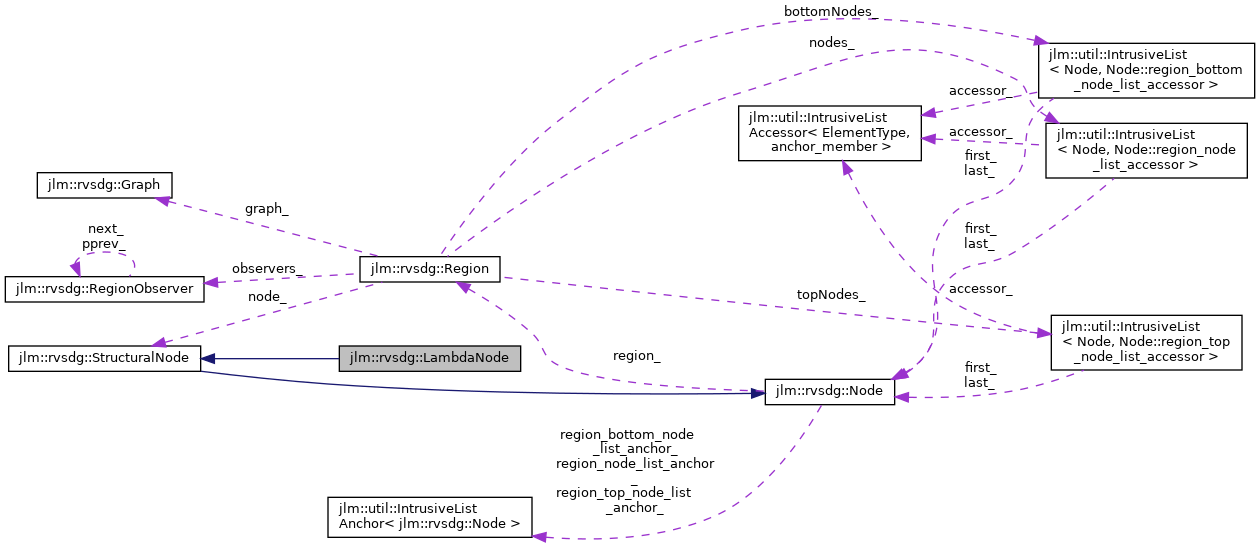

Collaboration diagram for jlm::rvsdg::LambdaNode:

[legend]

Classes
struct	ArgumentVar
	Formal argument variable. More...

struct	ContextVar
	Bound context variable. More...

Public Member Functions
	~LambdaNode () override

std::vector< rvsdg::Output * >	GetFunctionArguments () const

std::vector< rvsdg::Input * >	GetFunctionResults () const

rvsdg::Region *	subregion () const noexcept

LambdaOperation &	GetOperation () const noexcept override

ContextVar	AddContextVar (jlm::rvsdg::Output &origin)
	Adds a context/free variable to the lambda node. More...

ContextVar	MapInputContextVar (const rvsdg::Input &input) const noexcept
	Maps input to context variable. More...

std::optional< ContextVar >	MapBinderContextVar (const rvsdg::Output &output) const noexcept
	Maps bound variable reference to context variable. More...

std::vector< ContextVar >	GetContextVars () const noexcept
	Gets all bound context variables. More...

std::variant< ArgumentVar, ContextVar >	MapArgument (const rvsdg::Output &output) const
	Maps region argument to its disposition (formal argument or context var). More...

template<typename F >
size_t	RemoveLambdaInputsWhere (const F &match)

size_t	PruneLambdaInputs ()

rvsdg::Output *	output () const noexcept

LambdaNode *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const override

LambdaNode *	copy (rvsdg::Region *region, rvsdg::SubstitutionMap &smap) const override
	Copy a node with substitutions. More...

rvsdg::Output *	finalize (const std::vector< jlm::rvsdg::Output * > &results)

Public Member Functions inherited from jlm::rvsdg::StructuralNode
	~StructuralNode () noexcept override

std::string	DebugString () const override

size_t	nsubregions () const noexcept

rvsdg::Region *	subregion (size_t index) const noexcept

SubregionIteratorRange	Subregions ()

SubregionConstIteratorRange	Subregions () const

StructuralInput *	input (size_t index) const noexcept

StructuralOutput *	output (size_t index) const noexcept

Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

Static Public Member Functions
static LambdaNode *	Create (rvsdg::Region &parent, std::unique_ptr< LambdaOperation > operation)

Private Member Functions
	LambdaNode (rvsdg::Region &parent, std::unique_ptr< LambdaOperation > op)

Private Attributes
std::unique_ptr< LambdaOperation >	Operation_

Friends
class	LambdaBuilder

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Protected Member Functions inherited from jlm::rvsdg::StructuralNode
	StructuralNode (rvsdg::Region *region, size_t nsubregions)

StructuralInput *	addInput (std::unique_ptr< StructuralInput > input, bool notifyRegion)

StructuralOutput *	addOutput (std::unique_ptr< StructuralOutput > input)

Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Detailed Description

Lambda node.

A lambda node represents a lambda expression in the RVSDG. Its creation requires the invocation of two functions: Create() and finalize(). First, a node with only the function arguments is created by invoking Create(). The free variables of the lambda expression can then be added to the lambda node using the AddContextVar() method, and the body of the lambda node can be created. Finally, the lambda node can be finalized by invoking finalize().

The following snippet illustrates the creation of lambda nodes:

auto lambda = LambdaNode::create(...);
...
auto cv1 = lambda->AddContextVar(...);
auto cv2 = lambda->AddContextVar(...);
...
// generate lambda body
...
auto output = lambda->finalize(...);

Definition at line 82 of file lambda.hpp.

Constructor & Destructor Documentation

◆ ~LambdaNode()

jlm::rvsdg::LambdaNode::~LambdaNode ( )

overridedefault

◆ LambdaNode()

jlm::rvsdg::LambdaNode::LambdaNode	(	rvsdg::Region &	parent,
		std::unique_ptr< LambdaOperation >	op
	)

private

Definition at line 40 of file lambda.cpp.

Member Function Documentation

◆ AddContextVar()

LambdaNode::ContextVar jlm::rvsdg::LambdaNode::AddContextVar ( jlm::rvsdg::Output & origin )

Adds a context/free variable to the lambda node.

Parameters

origin The value to be bound into the lambda node.

Precondition: origin must be from the same region as the lambda node.

Returns: The context variable argument of the lambda abstraction.

Definition at line 131 of file lambda.cpp.

◆ copy() [1/2]

LambdaNode * jlm::rvsdg::LambdaNode::copy	(	rvsdg::Region *	region,
		const std::vector< jlm::rvsdg::Output * > &	operands
	)		const

overridevirtual

Reimplemented from jlm::rvsdg::Node.

Definition at line 182 of file lambda.cpp.

◆ copy() [2/2]

LambdaNode * jlm::rvsdg::LambdaNode::copy	(	rvsdg::Region *	region,
		rvsdg::SubstitutionMap &	smap
	)		const

overridevirtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implements jlm::rvsdg::Node.

Definition at line 188 of file lambda.cpp.

◆ Create()

LambdaNode * jlm::rvsdg::LambdaNode::Create	(	rvsdg::Region &	parent,
		std::unique_ptr< LambdaOperation >	operation
	)

static

Creates a lambda node in the region parent with the function type type and name name. After the invocation of Create(), the lambda node only features the function arguments. Free variables can be added to the function node using AddContextVar(). The generation of the node can be finished using the finalize() method.

Parameters

parent	The region where the lambda node is created.
operation	Operational details for lambda node (including function signature).

Returns: A lambda node featuring only function arguments.

Definition at line 140 of file lambda.cpp.

◆ finalize()

rvsdg::Output * jlm::rvsdg::LambdaNode::finalize ( const std::vector< jlm::rvsdg::Output * > & results )

Finalizes the creation of a lambda node.

Parameters

results The result values of the lambda expression, originating from the lambda region.

Returns: The output of the lambda node.

Definition at line 146 of file lambda.cpp.

◆ GetContextVars()

std::vector< LambdaNode::ContextVar > jlm::rvsdg::LambdaNode::GetContextVars ( ) const

noexcept

Gets all bound context variables.

Returns: The context variable descriptions.

Returns all context variable descriptions.

Definition at line 119 of file lambda.cpp.

◆ GetFunctionArguments()

std::vector< rvsdg::Output * > jlm::rvsdg::LambdaNode::GetFunctionArguments ( ) const

Definition at line 57 of file lambda.cpp.

◆ GetFunctionResults()

std::vector< rvsdg::Input * > jlm::rvsdg::LambdaNode::GetFunctionResults ( ) const

Definition at line 69 of file lambda.cpp.

◆ GetOperation()

LambdaOperation & jlm::rvsdg::LambdaNode::GetOperation ( ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Node.

Definition at line 51 of file lambda.cpp.

◆ MapArgument()

std::variant< LambdaNode::ArgumentVar, LambdaNode::ContextVar > jlm::rvsdg::LambdaNode::MapArgument ( const rvsdg::Output & output ) const

Maps region argument to its disposition (formal argument or context var).

Returns: A description of the role that this arguments plays.

Precondition: output must be an argument to the subregion of this node.

Definition at line 104 of file lambda.cpp.

◆ MapBinderContextVar()

std::optional< LambdaNode::ContextVar > jlm::rvsdg::LambdaNode::MapBinderContextVar ( const rvsdg::Output & output ) const

noexcept

Maps bound variable reference to context variable.

Parameters

output Region argument to lambda subregion

Returns: The context variable description corresponding to the argument

Precondition: output must be an argument to the subregion of this node

Returns the context variable description corresponding to this bound variable reference in the lambda node region. Note that some arguments of the region are formal call arguments and do not have an associated context variable description.

Definition at line 88 of file lambda.cpp.

◆ MapInputContextVar()

LambdaNode::ContextVar jlm::rvsdg::LambdaNode::MapInputContextVar ( const rvsdg::Input & input ) const

noexcept

Maps input to context variable.

Parameters

input Input to the lambda node.

Returns: The context variable description corresponding to the input.

Precondition: input must be input to this node.

Returns the context variable description corresponding to this input of the lambda node. All inputs to the lambda node are by definition bound context variables that are accessible in the subregion through the corresponding argument.

Definition at line 80 of file lambda.cpp.

◆ output()

rvsdg::Output * jlm::rvsdg::LambdaNode::output ( ) const

noexcept

Definition at line 176 of file lambda.cpp.

◆ PruneLambdaInputs()

size_t jlm::rvsdg::LambdaNode::PruneLambdaInputs ( )

inline

Remove all dead inputs.

Returns: The number of removed inputs.

See also: RemoveLambdaInputsWhere()

Definition at line 245 of file lambda.hpp.

◆ RemoveLambdaInputsWhere()

template<typename F >

size_t jlm::rvsdg::LambdaNode::RemoveLambdaInputsWhere ( const F & match )

Remove lambda inputs and their respective arguments.

An input must match the condition specified by match and its argument must be dead.

Template Parameters

F	A type that supports the function call operator: bool operator(const rvsdg::input&)

Parameters

match Defines the condition of the elements to remove.

Returns: The number of removed inputs.

Definition at line 296 of file lambda.hpp.

◆ subregion()

rvsdg::Region* jlm::rvsdg::LambdaNode::subregion ( ) const

inlinenoexcept

Definition at line 138 of file lambda.hpp.

Friends And Related Function Documentation

◆ LambdaBuilder

friend class LambdaBuilder

friend

Definition at line 291 of file lambda.hpp.

Member Data Documentation

◆ Operation_

std::unique_ptr<LambdaOperation> jlm::rvsdg::LambdaNode::Operation_

private

Definition at line 289 of file lambda.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/lambda.hpp
jlm/rvsdg/lambda.cpp
