Conditional operator / pattern matching. More...

#include <gamma.hpp>

Inheritance diagram for jlm::rvsdg::GammaNode:

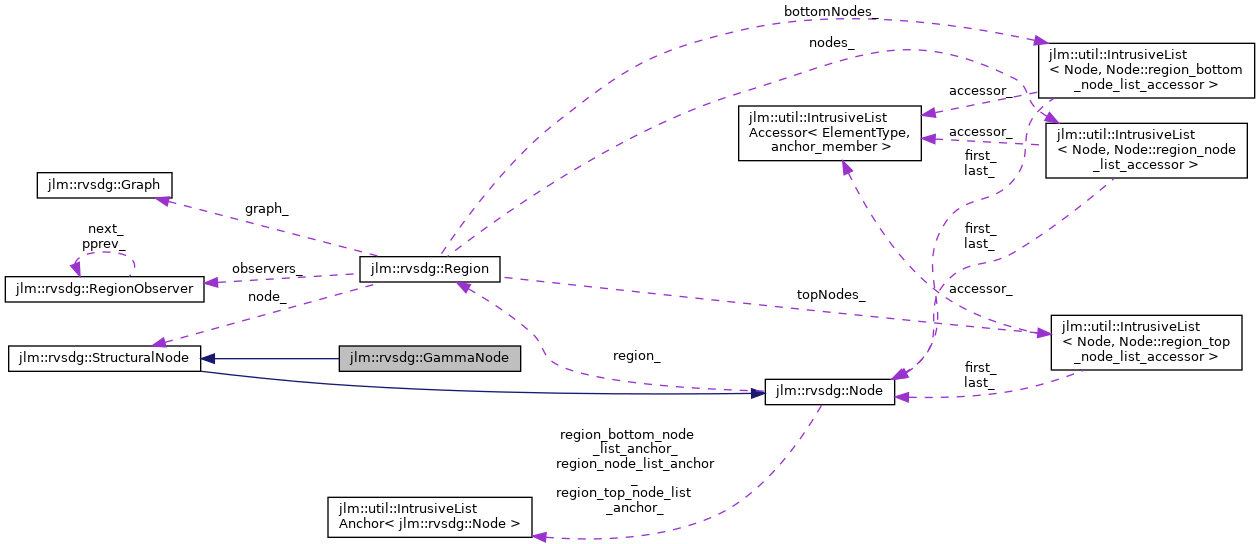

Collaboration diagram for jlm::rvsdg::GammaNode:

[legend]

Classes
struct	EntryVar
	A variable routed into all gamma regions. More...

struct	ExitVar
	A variable routed out of all gamma regions as result. More...

struct	MatchVar
	The match/discriminator variable of this gamma node. More...

Public Member Functions
	~GammaNode () noexcept override

const GammaOperation &	GetOperation () const noexcept override

rvsdg::Input *	predicate () const noexcept

EntryVar	AddEntryVar (rvsdg::Output *origin)
	Routes a variable into the gamma branches. More...

MatchVar	GetMatchVar () const

std::vector< EntryVar >	GetEntryVars () const
	Gets all entry variables for this gamma. More...

std::variant< MatchVar, EntryVar >	MapInput (const rvsdg::Input &input) const
	Maps gamma input to its role (match variable or entry variable). More...

std::variant< MatchVar, EntryVar >	MapBranchArgument (const rvsdg::Output &output) const
	Maps branch subregion entry argument to its role (pattern match or entry variable). More...

ExitVar	AddExitVar (std::vector< rvsdg::Output * > values)
	Routes per-branch result of gamma to output. More...

std::vector< ExitVar >	GetExitVars () const
	Gets all exit variables for this gamma. More...

ExitVar	MapOutputExitVar (const rvsdg::Output &output) const
	Maps gamma output to exit variable description. More...

ExitVar	MapBranchResultExitVar (const rvsdg::Input &input) const
	Maps gamma region exit result to exit variable description. More...

void	RemoveExitVars (const std::vector< ExitVar > &exitVars)
	Removes the given exit variables. More...

void	RemoveEntryVars (const std::vector< EntryVar > &entryVars)
	Removes the given entry variables. More...

void	PruneExitVars ()

GammaNode *	copy (jlm::rvsdg::Region *region, SubstitutionMap &smap) const override
	Copy a node with substitutions. More...

Public Member Functions inherited from jlm::rvsdg::StructuralNode
	~StructuralNode () noexcept override

std::string	DebugString () const override

size_t	nsubregions () const noexcept

rvsdg::Region *	subregion (size_t index) const noexcept

SubregionIteratorRange	Subregions ()

SubregionConstIteratorRange	Subregions () const

StructuralInput *	input (size_t index) const noexcept

StructuralOutput *	output (size_t index) const noexcept

Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

virtual Node *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const

Static Public Member Functions
static GammaNode *	create (jlm::rvsdg::Output *predicate, size_t nalternatives)

static GammaNode &	Create (jlm::rvsdg::Output &predicate, size_t numAlternatives, std::vector< std::shared_ptr< const Type >> matchContentTypes)

static GammaNode &	Create (jlm::rvsdg::Output &predicate, std::unique_ptr< GammaOperation > op)

Private Member Functions
	GammaNode (rvsdg::Output &predicate, std::unique_ptr< GammaOperation > op)

	GammaNode (rvsdg::Output &predicate, size_t nalternatives, std::vector< std::shared_ptr< const Type >> match_content_types)

EntryVar	GetEntryVar (std::size_t index) const
	Gets entry variable by index. More...

Private Attributes
std::unique_ptr< GammaOperation >	Operation_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Protected Member Functions inherited from jlm::rvsdg::StructuralNode
	StructuralNode (rvsdg::Region *region, size_t nsubregions)

StructuralInput *	addInput (std::unique_ptr< StructuralInput > input, bool notifyRegion)

StructuralOutput *	addOutput (std::unique_ptr< StructuralOutput > input)

Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Detailed Description

Conditional operator / pattern matching.

Gamma nodes discriminate over a given value and conditionally select one of its subregions. In its simplest form, they correspond to an if/else statement:

if (pred) { branch1(); } else { branch0(); }

More generically, they perform pattern-matching over a finitely- constructed type:

match shape with
  | Circle x y r => ...
  | Rect x1 y1 x2 y2 => ...
  | Poly points => ...
end

where the "contents" of the match is made available in its corresponding branch. Simple types such as booleans do not have any content and thus produce the content-less UnitType as placeholder for the destructured content – so effectively Gamma then corresponds to:

match pred with
  | false => branch1
  | true => branch0
end

Definition at line 98 of file gamma.hpp.

Constructor & Destructor Documentation

◆ ~GammaNode()

jlm::rvsdg::GammaNode::~GammaNode ( )

overridedefaultnoexcept

◆ GammaNode() [1/2]

jlm::rvsdg::GammaNode::GammaNode	(	rvsdg::Output &	predicate,
		std::unique_ptr< GammaOperation >	op
	)

private

Definition at line 228 of file gamma.cpp.

◆ GammaNode() [2/2]

jlm::rvsdg::GammaNode::GammaNode	(	rvsdg::Output &	predicate,
		size_t	nalternatives,
		std::vector< std::shared_ptr< const Type >>	match_content_types
	)

private

Definition at line 244 of file gamma.cpp.

Member Function Documentation

◆ AddEntryVar()

GammaNode::EntryVar jlm::rvsdg::GammaNode::AddEntryVar ( rvsdg::Output * origin )

Routes a variable into the gamma branches.

Parameters

origin Value to be routed in.

Returns: Description of entry variable.

Routes a variable into a gamma region. To access the variable in each branch use EntryVar::branchArgument.

Definition at line 260 of file gamma.cpp.

◆ AddExitVar()

GammaNode::ExitVar jlm::rvsdg::GammaNode::AddExitVar ( std::vector< rvsdg::Output * > values )

Routes per-branch result of gamma to output.

Parameters

values Value to be routed out.

Returns: Description of exit variable.

Routes per-branch values for a particular variable out of the gamma regions and makes it available as output of the gamma node.

Definition at line 342 of file gamma.cpp.

◆ copy()

GammaNode * jlm::rvsdg::GammaNode::copy	(	jlm::rvsdg::Region *	region,
		SubstitutionMap &	smap
	)		const

overridevirtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implements jlm::rvsdg::Node.

Definition at line 439 of file gamma.cpp.

◆ Create() [1/2]

static GammaNode& jlm::rvsdg::GammaNode::Create	(	jlm::rvsdg::Output &	predicate,
		size_t	numAlternatives,
		std::vector< std::shared_ptr< const Type >>	matchContentTypes
	)

inlinestatic

Definition at line 167 of file gamma.hpp.

◆ Create() [2/2]

static GammaNode& jlm::rvsdg::GammaNode::Create	(	jlm::rvsdg::Output &	predicate,
		std::unique_ptr< GammaOperation >	op
	)

inlinestatic

Definition at line 176 of file gamma.hpp.

◆ create()

static GammaNode* jlm::rvsdg::GammaNode::create	(	jlm::rvsdg::Output *	predicate,
		size_t	nalternatives
	)

inlinestatic

Definition at line 161 of file gamma.hpp.

◆ GetEntryVar()

GammaNode::EntryVar jlm::rvsdg::GammaNode::GetEntryVar ( std::size_t index ) const

private

Gets entry variable by index.

Parameters

index Index of entry variable

Returns: Description of entry variable.

Looks up the index 'th entry variable into the gamma node and returns its description.

Definition at line 278 of file gamma.cpp.

◆ GetEntryVars()

std::vector< GammaNode::EntryVar > jlm::rvsdg::GammaNode::GetEntryVars ( ) const

Gets all entry variables for this gamma.

Definition at line 303 of file gamma.cpp.

◆ GetExitVars()

std::vector< GammaNode::ExitVar > jlm::rvsdg::GammaNode::GetExitVars ( ) const

Gets all exit variables for this gamma.

Definition at line 361 of file gamma.cpp.

◆ GetMatchVar()

GammaNode::MatchVar jlm::rvsdg::GammaNode::GetMatchVar ( ) const

Definition at line 291 of file gamma.cpp.

◆ GetOperation()

const GammaOperation & jlm::rvsdg::GammaNode::GetOperation ( ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Node.

Definition at line 254 of file gamma.cpp.

◆ MapBranchArgument()

std::variant< GammaNode::MatchVar, GammaNode::EntryVar > jlm::rvsdg::GammaNode::MapBranchArgument ( const rvsdg::Output & output ) const

Maps branch subregion entry argument to its role (pattern match or entry variable).

Parameters

output The branch argument to be mapped.

Returns: The entry variable description corresponding to this input

Precondition: output must be the entry argument to a subregion of this gamma nade.

Maps the subregion entry argument to the variable description corresponding to it (the predicate + pattern matches, or an entry variable into this branch). This allows to trace the value to users in other branches as well as its def site preceding the gamma node:

Definition at line 328 of file gamma.cpp.

◆ MapBranchResultExitVar()

GammaNode::ExitVar jlm::rvsdg::GammaNode::MapBranchResultExitVar ( const rvsdg::Input & input ) const

Maps gamma region exit result to exit variable description.

Parameters

input The result to be mapped to be mapped.

Returns: The exit variable description corresponding to this output.

Precondition: input must be a result of a subregion of this node.

Maps the gamma region result to the exit variable description corresponding to it.

Definition at line 389 of file gamma.cpp.

◆ MapInput()

std::variant< GammaNode::MatchVar, GammaNode::EntryVar > jlm::rvsdg::GammaNode::MapInput ( const rvsdg::Input & input ) const

Maps gamma input to its role (match variable or entry variable).

Parameters

input Input to be mapped.

Returns: The variable description corresponding to this input

Precondition: input must be an input of this node

Maps the gamma input to the variable description corresponding to it. This is either the "match" or "predicate" of the gamma, or an entry variable for values used inside the region. This allows to trace the value through to users in the gamma subregions.

Definition at line 314 of file gamma.cpp.

◆ MapOutputExitVar()

GammaNode::ExitVar jlm::rvsdg::GammaNode::MapOutputExitVar ( const rvsdg::Output & output ) const

Maps gamma output to exit variable description.

Parameters

output Output to be mapped.

Returns: The exit variable description corresponding to this output.

Precondition: output must be an output of this node.

Maps the gamma output to the exit variable description corresponding to it. This allows to trace the value through to users in the gamma subregions.

Definition at line 377 of file gamma.cpp.

◆ predicate()

rvsdg::Input * jlm::rvsdg::GammaNode::predicate ( ) const

inlinenoexcept

Definition at line 398 of file gamma.hpp.

◆ PruneExitVars()

void jlm::rvsdg::GammaNode::PruneExitVars ( )

inline

Remove all exit variables where the variables' output is dead.

See also: Output::IsDead()

Definition at line 337 of file gamma.hpp.

◆ RemoveEntryVars()

void jlm::rvsdg::GammaNode::RemoveEntryVars ( const std::vector< EntryVar > & entryVars )

Removes the given entry variables.

Precondition: All entry variables must be unused in the gamma branch subregions (= the corresponding region arguments must not have any users).

Removes the variables as entry variables from this gamma.

Definition at line 420 of file gamma.cpp.

◆ RemoveExitVars()

void jlm::rvsdg::GammaNode::RemoveExitVars ( const std::vector< ExitVar > & exitVars )

Removes the given exit variables.

Precondition: All exit variables must be unused (= the corresponding gamma outputs must not have any users).

Removes the variables as exit variables from this gamma.

Definition at line 401 of file gamma.cpp.

Member Data Documentation

◆ Operation_

std::unique_ptr<GammaOperation> jlm::rvsdg::GammaNode::Operation_

private

Definition at line 370 of file gamma.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/gamma.hpp
jlm/rvsdg/gamma.cpp

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~GammaNode()

◆ GammaNode() [1/2]

◆ GammaNode() [2/2]

Member Function Documentation

◆ AddEntryVar()

◆ AddExitVar()

◆ copy()

◆ Create() [1/2]

◆ Create() [2/2]

◆ create()

◆ GetEntryVar()

◆ GetEntryVars()

◆ GetExitVars()

◆ GetMatchVar()

◆ GetOperation()

◆ MapBranchArgument()

◆ MapBranchResultExitVar()

◆ MapInput()

◆ MapOutputExitVar()

◆ predicate()

◆ PruneExitVars()

◆ RemoveEntryVars()

◆ RemoveExitVars()

Member Data Documentation

◆ Operation_
