A phi node represents the fixpoint of mutually recursive definitions. More...

#include <Phi.hpp>

Inheritance diagram for jlm::rvsdg::PhiNode:

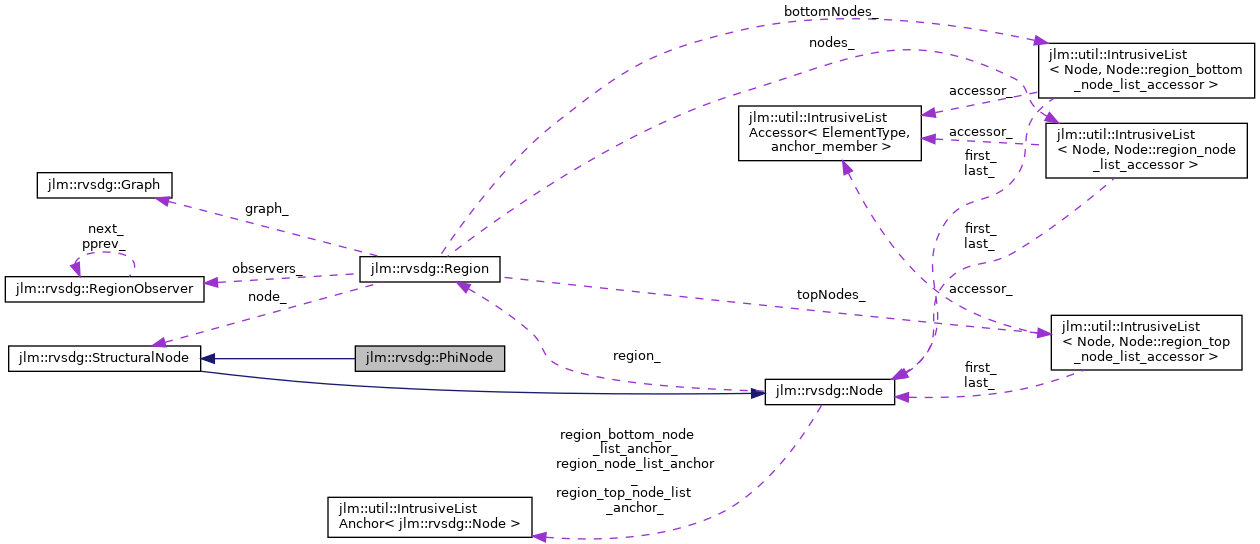

Collaboration diagram for jlm::rvsdg::PhiNode:

[legend]

Classes
struct	ContextVar
	Bound context variable. More...

struct	FixVar
	Description of a recursively defined variable. More...

Public Member Functions
	~PhiNode () override

const PhiOperation &	GetOperation () const noexcept override

ContextVar	AddContextVar (jlm::rvsdg::Output &origin)
	Adds a context variable to the phi node. More...

void	RemoveContextVars (std::vector< ContextVar > vars)
	Removes context variables from phi node. More...

std::vector< ContextVar >	GetContextVars () const noexcept
	Gets all bound context variables. More...

ContextVar	MapInputContextVar (const rvsdg::Input &input) const noexcept
	Maps input to context variable. More...

std::optional< ContextVar >	MapArgumentContextVar (const rvsdg::Output &argument) const noexcept
	Attempts to map bound variable reference to context variable. More...

void	RemoveFixVars (std::vector< FixVar > vars)
	Removes fixpoint variables from the phi node. More...

std::vector< FixVar >	GetFixVars () const noexcept
	Gets all fixpoint variables. More...

std::optional< FixVar >	MapArgumentFixVar (const rvsdg::Output &argument) const noexcept
	Tries to map region argument to fixpoint variable. More...

FixVar	MapResultFixVar (const rvsdg::Input &result) const noexcept
	Maps region result to fixpoint variable. More...

FixVar	MapOutputFixVar (const rvsdg::Output &output) const noexcept
	Maps output to fixpoint variable. More...

std::variant< FixVar, ContextVar >	MapArgument (const rvsdg::Output &argument) const noexcept
	Maps region argument to its function. More...

rvsdg::Region *	subregion () const noexcept

PhiNode *	copy (rvsdg::Region *region, rvsdg::SubstitutionMap &smap) const override
	Copy a node with substitutions. More...

Public Member Functions inherited from jlm::rvsdg::StructuralNode
	~StructuralNode () noexcept override

std::string	DebugString () const override

size_t	nsubregions () const noexcept

rvsdg::Region *	subregion (size_t index) const noexcept

SubregionIteratorRange	Subregions ()

SubregionConstIteratorRange	Subregions () const

StructuralInput *	input (size_t index) const noexcept

StructuralOutput *	output (size_t index) const noexcept

Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

virtual Node *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const

Static Public Member Functions
static std::vector< rvsdg::LambdaNode * >	ExtractLambdaNodes (const PhiNode &phiNode)

Private Member Functions
	PhiNode (rvsdg::Region *parent)

Static Private Member Functions
static PhiNode *	create (rvsdg::Region *parent)

Friends
class	PhiBuilder

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Protected Member Functions inherited from jlm::rvsdg::StructuralNode
	StructuralNode (rvsdg::Region *region, size_t nsubregions)

StructuralInput *	addInput (std::unique_ptr< StructuralInput > input, bool notifyRegion)

StructuralOutput *	addOutput (std::unique_ptr< StructuralOutput > input)

Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Detailed Description

A phi node represents the fixpoint of mutually recursive definitions.

A phi node may contain multiple definitions of objects that mutually reference each other. It represents the fixpoint of infinitely unrolling the definitions.

A phi node may reference external definitions as ContextVars, and it may both define and reference several mutually recursive objects as FixVars.

Definition at line 45 of file Phi.hpp.

Constructor & Destructor Documentation

◆ ~PhiNode()

jlm::rvsdg::PhiNode::~PhiNode ( )

overridedefault

◆ PhiNode()

jlm::rvsdg::PhiNode::PhiNode ( rvsdg::Region * parent )

inlineexplicitprivate

Definition at line 53 of file Phi.hpp.

Member Function Documentation

◆ AddContextVar()

PhiNode::ContextVar jlm::rvsdg::PhiNode::AddContextVar ( jlm::rvsdg::Output & origin )

Adds a context variable to the phi node.

Parameters

origin The value to be bound into the phi node.

Precondition: origin must be from the same region as the phi node.

Returns: The context variable argument of the phi abstraction.

Binds a new variable as context variable into the phi node. Its value can now be referenced from within the phi region.

Definition at line 40 of file Phi.cpp.

◆ copy()

PhiNode * jlm::rvsdg::PhiNode::copy	(	rvsdg::Region *	region,
		rvsdg::SubstitutionMap &	smap
	)		const

overridevirtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implements jlm::rvsdg::Node.

Definition at line 191 of file Phi.cpp.

◆ create()

static PhiNode* jlm::rvsdg::PhiNode::create ( rvsdg::Region * parent )

inlinestaticprivate

Definition at line 58 of file Phi.hpp.

◆ ExtractLambdaNodes()

std::vector< rvsdg::LambdaNode * > jlm::rvsdg::PhiNode::ExtractLambdaNodes ( const PhiNode & phiNode )

static

Extracts all lambda nodes from a phi node.

The function is capable of handling nested phi nodes.

Parameters

phiNode The phi node from which the lambda nodes should be extracted.

Returns: A vector of lambda nodes.

Definition at line 226 of file Phi.cpp.

◆ GetContextVars()

std::vector< PhiNode::ContextVar > jlm::rvsdg::PhiNode::GetContextVars ( ) const

noexcept

Gets all bound context variables.

Returns: The context variable descriptions.

Returns all context variable descriptions.

Definition at line 50 of file Phi.cpp.

◆ GetFixVars()

std::vector< PhiNode::FixVar > jlm::rvsdg::PhiNode::GetFixVars ( ) const

noexcept

Gets all fixpoint variables.

Returns: The fixpoint variable descriptions.

Returns all fixpoint variable descriptions.

Definition at line 63 of file Phi.cpp.

◆ GetOperation()

const PhiOperation & jlm::rvsdg::PhiNode::GetOperation ( ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Node.

Definition at line 32 of file Phi.cpp.

◆ MapArgument()

std::variant< PhiNode::FixVar, PhiNode::ContextVar > jlm::rvsdg::PhiNode::MapArgument ( const rvsdg::Output & argument ) const

noexcept

Maps region argument to its function.

Parameters

argument The argument of the phi node to be mapped.

Returns: Either the fixpoint variable description or the context variable description, depending on the designation of the argument.

Precondition: argument must be an argument of the region within this phi node.

Maps output of the phi node to either a fixpoint or context variable.

Definition at line 132 of file Phi.cpp.

◆ MapArgumentContextVar()

std::optional< PhiNode::ContextVar > jlm::rvsdg::PhiNode::MapArgumentContextVar ( const rvsdg::Output & argument ) const

noexcept

Attempts to map bound variable reference to context variable.

Parameters

argument Region argument to phi subregion.

Returns: The context variable description corresponding to argument, or std::nullopt.

Precondition: argument must be an argument to the subregion of this node.

Checks whether the given argument corresponds to a context variable and returns its description in that case. All arguments of a phi region are either context or fixpoint variables, see MapArgumentFixVar.

Definition at line 117 of file Phi.cpp.

◆ MapArgumentFixVar()

std::optional< PhiNode::FixVar > jlm::rvsdg::PhiNode::MapArgumentFixVar ( const rvsdg::Output & argument ) const

noexcept

Tries to map region argument to fixpoint variable.

Parameters

argument The argument of the region to be mapped.

Returns: Fixpoint variable description corresponding to argument, or std::nullopt.

Precondition: argument must be an argument of the subregion contained in the phi node.

Checks whether the given argument corresponds to a fixpoint variable and returns its description in that case. All arguments of a phi region are either context or fixpoint variables, see MapArgumentContextVar.

Definition at line 76 of file Phi.cpp.

◆ MapInputContextVar()

PhiNode::ContextVar jlm::rvsdg::PhiNode::MapInputContextVar ( const rvsdg::Input & input ) const

noexcept

Maps input to context variable.

Parameters

input Input to the phi node.

Returns: The context variable description corresponding to the input.

Precondition: input must be input to this node.

Returns the context variable description corresponding to this input of the phi node. All inputs to the phi node are by definition bound context variables that are accessible in the subregion through the corresponding argument.

Definition at line 109 of file Phi.cpp.

◆ MapOutputFixVar()

PhiNode::FixVar jlm::rvsdg::PhiNode::MapOutputFixVar ( const rvsdg::Output & output ) const

noexcept

Maps output to fixpoint variable.

Parameters

output The output of the phi node to be mapped.

Returns: Fixpoint variable description corresponding to output.

Precondition: output must be an output of this phi node.

Maps output of the phi node to a fixpoint variable.

Definition at line 100 of file Phi.cpp.

◆ MapResultFixVar()

PhiNode::FixVar jlm::rvsdg::PhiNode::MapResultFixVar ( const rvsdg::Input & result ) const

noexcept

Maps region result to fixpoint variable.

Parameters

result The result of the region to be mapped.

Returns: Fixpoint variable description corresponding to input.

Precondition: result must be a result of the subregion contained in the phi node.

Maps result of the region to a fixpoint variable.

Definition at line 91 of file Phi.cpp.

◆ RemoveContextVars()

void jlm::rvsdg::PhiNode::RemoveContextVars ( std::vector< ContextVar > vars )

Removes context variables from phi node.

Parameters

vars	Variables to be removed.

Precondition: vars must be context variables of the phi node and they must be unused within the region.

Removes the given context variables.

Definition at line 150 of file Phi.cpp.

◆ RemoveFixVars()

void jlm::rvsdg::PhiNode::RemoveFixVars ( std::vector< FixVar > vars )

Removes fixpoint variables from the phi node.

Parameters

vars	Variables to be removed.

Precondition: vars must be fixpoint variables of the phi node, and they must be identity mappings within the phi region.

Removes the given fixpoint variables

Definition at line 168 of file Phi.cpp.

◆ subregion()

rvsdg::Region* jlm::rvsdg::PhiNode::subregion ( ) const

inlinenoexcept

Definition at line 320 of file Phi.hpp.

Friends And Related Function Documentation

◆ PhiBuilder

friend class PhiBuilder

friend

Definition at line 47 of file Phi.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/Phi.hpp
jlm/rvsdg/Phi.cpp

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~PhiNode()

◆ PhiNode()

Member Function Documentation

◆ AddContextVar()

◆ copy()

◆ create()

◆ ExtractLambdaNodes()

◆ GetContextVars()

◆ GetFixVars()

◆ GetOperation()

◆ MapArgument()

◆ MapArgumentContextVar()

◆ MapArgumentFixVar()

◆ MapInputContextVar()

◆ MapOutputFixVar()

◆ MapResultFixVar()

◆ RemoveContextVars()

◆ RemoveFixVars()

◆ subregion()

Friends And Related Function Documentation

◆ PhiBuilder
