Delta node. More...

#include <delta.hpp>

Inheritance diagram for jlm::rvsdg::DeltaNode:

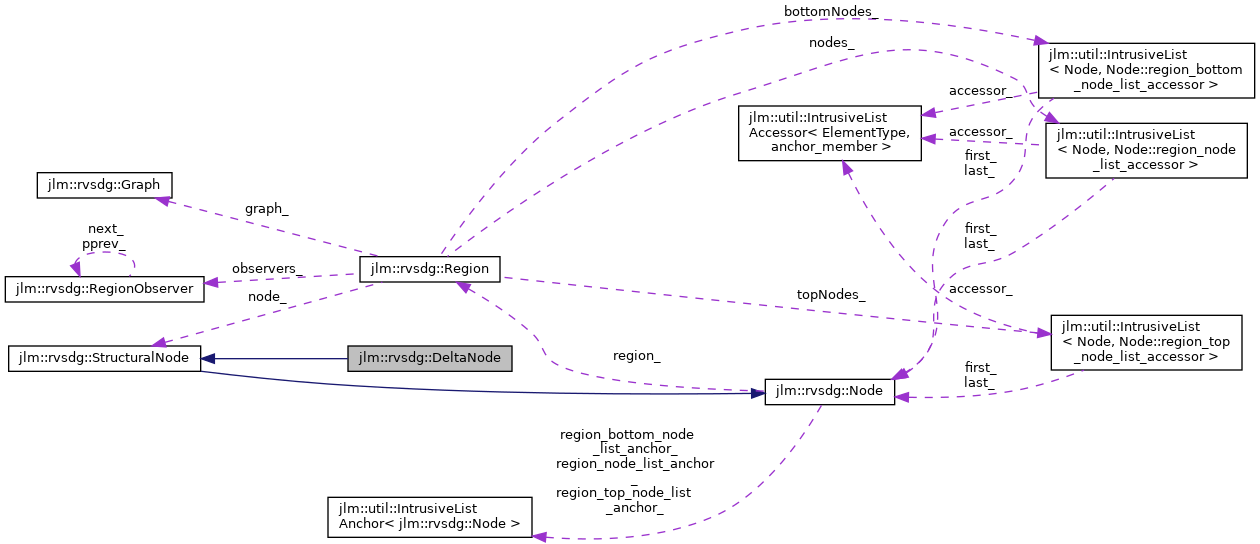

Collaboration diagram for jlm::rvsdg::DeltaNode:

[legend]

Classes
struct	ContextVar
	Bound context variable. More...

Public Member Functions
	~DeltaNode () noexcept override

ContextVar	AddContextVar (jlm::rvsdg::Output &origin)
	Adds a context/free variable to the delta node. More...

ContextVar	MapInputContextVar (const rvsdg::Input &input) const noexcept
	Maps input to context variable. More...

ContextVar	MapBinderContextVar (const rvsdg::Output &output) const noexcept
	Maps bound variable reference to context variable. More...

std::vector< ContextVar >	GetContextVars () const noexcept
	Gets all bound context variables. More...

rvsdg::Region *	subregion () const noexcept

const DeltaOperation &	GetOperation () const noexcept override

const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept

bool	constant () const noexcept

template<typename F >
size_t	RemoveDeltaInputsWhere (const F &match)

size_t	PruneDeltaInputs ()

rvsdg::Output &	output () const noexcept

rvsdg::Input &	result () const noexcept

DeltaNode *	copy (rvsdg::Region region, const std::vector< jlm::rvsdg::Output > &operands) const override

DeltaNode *	copy (rvsdg::Region *region, rvsdg::SubstitutionMap &smap) const override
	Copy a node with substitutions. More...

rvsdg::Output &	finalize (rvsdg::Output *result)

Public Member Functions inherited from jlm::rvsdg::StructuralNode
	~StructuralNode () noexcept override

std::string	DebugString () const override

size_t	nsubregions () const noexcept

rvsdg::Region *	subregion (size_t index) const noexcept

SubregionIteratorRange	Subregions ()

SubregionConstIteratorRange	Subregions () const

StructuralInput *	input (size_t index) const noexcept

StructuralOutput *	output (size_t index) const noexcept

Public Member Functions inherited from jlm::rvsdg::Node
virtual	~Node ()

	Node (Region *region)

Id	GetNodeId () const noexcept

size_t	ninputs () const noexcept

NodeInput *	input (size_t index) const noexcept

InputIteratorRange	Inputs () noexcept

InputConstIteratorRange	Inputs () const noexcept

size_t	noutputs () const noexcept

NodeOutput *	output (size_t index) const noexcept

OutputIteratorRange	Outputs () noexcept

OutputConstIteratorRange	Outputs () const noexcept

bool	IsDead () const noexcept
	Determines whether the node is dead. More...

std::size_t	numSuccessors () const noexcept

size_t	RemoveInputs (const util::HashSet< size_t > &indices)

size_t	RemoveOutputs (const util::HashSet< size_t > &indices)

Graph *	graph () const noexcept

rvsdg::Region *	region () const noexcept

Static Public Member Functions
static DeltaNode *	Create (rvsdg::Region *parent, std::unique_ptr< DeltaOperation > op)

Private Member Functions
	DeltaNode (rvsdg::Region *parent, std::unique_ptr< DeltaOperation > op)

Private Attributes
std::unique_ptr< DeltaOperation >	Operation_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::Node
using	Id = uint64_t

using	InputIteratorRange = util::IteratorRange< Input::Iterator >

using	InputConstIteratorRange = util::IteratorRange< Input::ConstIterator >

using	OutputIteratorRange = util::IteratorRange< Output::Iterator >

using	OutputConstIteratorRange = util::IteratorRange< Output::ConstIterator >

typedef util::IntrusiveListAccessor< Node, &Node::region_node_list_anchor_ >	region_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_top_node_list_anchor_ >	region_top_node_list_accessor

typedef util::IntrusiveListAccessor< Node, &Node::region_bottom_node_list_anchor_ >	region_bottom_node_list_accessor

Protected Member Functions inherited from jlm::rvsdg::StructuralNode
	StructuralNode (rvsdg::Region *region, size_t nsubregions)

StructuralInput *	addInput (std::unique_ptr< StructuralInput > input, bool notifyRegion)

StructuralOutput *	addOutput (std::unique_ptr< StructuralOutput > input)

Protected Member Functions inherited from jlm::rvsdg::Node
NodeInput *	addInput (std::unique_ptr< NodeInput > input, bool notifyRegion)

NodeOutput *	addOutput (std::unique_ptr< NodeOutput > output)

Detailed Description

Delta node.

A delta node represents a global variable in the RVSDG. Its creation requires the invocation of two functions: Create() and finalize(). First, a delta node is created by invoking Create(). The delta's dependencies can then be added using the AddContextVar() method, and the body of the delta node can be created. Finally, the delta node can be finalized by invoking finalize().

The following snippet illustrates the creation of delta nodes:

auto delta = DeltaNode::create(...);
...
auto cv1 = delta->AddContextVar(...);
auto cv2 = delta->AddContextVar(...);
...
// generate delta body
...
auto output = delta->finalize(...);

Definition at line 128 of file delta.hpp.

Constructor & Destructor Documentation

◆ ~DeltaNode()

jlm::rvsdg::DeltaNode::~DeltaNode ( )

overridedefaultnoexcept

◆ DeltaNode()

jlm::rvsdg::DeltaNode::DeltaNode	(	rvsdg::Region *	parent,
		std::unique_ptr< DeltaOperation >	op
	)

inlineprivate

Definition at line 134 of file delta.hpp.

Member Function Documentation

◆ AddContextVar()

DeltaNode::ContextVar jlm::rvsdg::DeltaNode::AddContextVar ( jlm::rvsdg::Output & origin )

Adds a context/free variable to the delta node.

Parameters

origin The value to be bound into the delta node.

Precondition: origin must be from the same region as the delta node.

Returns: The context variable argument of the delta abstraction.

Definition at line 16 of file delta.cpp.

◆ constant()

bool jlm::rvsdg::DeltaNode::constant ( ) const

inlinenoexcept

Definition at line 249 of file delta.hpp.

◆ copy() [1/2]

DeltaNode * jlm::rvsdg::DeltaNode::copy	(	rvsdg::Region *	region,
		const std::vector< jlm::rvsdg::Output * > &	operands
	)		const

overridevirtual

Reimplemented from jlm::rvsdg::Node.

Definition at line 77 of file delta.cpp.

◆ copy() [2/2]

DeltaNode * jlm::rvsdg::DeltaNode::copy	(	rvsdg::Region *	region,
		rvsdg::SubstitutionMap &	smap
	)		const

overridevirtual

Copy a node with substitutions.

Parameters

region	Target region to create node in
smap	Operand substitutions

Returns: Copied node

Create a new node that is semantically equivalent to an existing node. The newly created node will use the same operands as the existing node unless there is a substitution registered for a particular operand.

The given substitution map is updated so that all outputs of the original node will be substituted by corresponding outputs of the newly created node in subsequent copy operations.

Implements jlm::rvsdg::Node.

Definition at line 83 of file delta.cpp.

◆ Create()

static DeltaNode* jlm::rvsdg::DeltaNode::Create	(	rvsdg::Region *	parent,
		std::unique_ptr< DeltaOperation >	op
	)

inlinestatic

Creates a delta node in the region parent with the detail information given in the operation struct.

After the invocation of Create(), the delta node has no inputs or outputs. Free variables can be added to the delta node using AddContextVar(). The generation of the node can be finished using the finalize() method.

Parameters

parent	The region where the delta node is created.
op	The delta node operation

Returns: A delta node without inputs or outputs.

Definition at line 313 of file delta.hpp.

◆ finalize()

rvsdg::Output & jlm::rvsdg::DeltaNode::finalize ( rvsdg::Output * result )

Finalizes the creation of a delta node.

Parameters

result The result values of the delta expression, originating from the delta region.

Returns: The output of the delta node.

Definition at line 122 of file delta.cpp.

◆ GetContextVars()

std::vector< DeltaNode::ContextVar > jlm::rvsdg::DeltaNode::GetContextVars ( ) const

noexcept

Gets all bound context variables.

Returns: The context variable descriptions.

Returns all context variable descriptions.

Definition at line 39 of file delta.cpp.

◆ GetOperation()

const DeltaOperation & jlm::rvsdg::DeltaNode::GetOperation ( ) const

overridevirtualnoexcept

Implements jlm::rvsdg::Node.

Definition at line 71 of file delta.cpp.

◆ MapBinderContextVar()

DeltaNode::ContextVar jlm::rvsdg::DeltaNode::MapBinderContextVar ( const rvsdg::Output & output ) const

noexcept

Maps bound variable reference to context variable.

Parameters

output Region argument to delta subregion

Returns: The context variable description corresponding to the argument

Precondition: output must be an argument to the subregion of this node

Returns the context variable description corresponding to this bound variable reference in the delta node region.

Definition at line 32 of file delta.cpp.

◆ MapInputContextVar()

DeltaNode::ContextVar jlm::rvsdg::DeltaNode::MapInputContextVar ( const rvsdg::Input & input ) const

noexcept

Maps input to context variable.

Parameters

input Input to the delta node.

Returns: The context variable description corresponding to the input.

Precondition: input must be input to this node.

Returns the context variable description corresponding to this input of the delta node. All inputs to the delta node are by definition bound context variables that are accessible in the subregion through the corresponding argument.

Definition at line 25 of file delta.cpp.

◆ output()

rvsdg::Output & jlm::rvsdg::DeltaNode::output ( ) const

noexcept

Definition at line 110 of file delta.cpp.

◆ PruneDeltaInputs()

size_t jlm::rvsdg::DeltaNode::PruneDeltaInputs ( )

inline

Remove all dead inputs.

Returns: The number of removed inputs.

See also: RemoveDeltaInputsWhere()

Definition at line 277 of file delta.hpp.

◆ RemoveDeltaInputsWhere()

template<typename F >

size_t jlm::rvsdg::DeltaNode::RemoveDeltaInputsWhere ( const F & match )

Remove delta inputs and their respective arguments.

An input must match the condition specified by match and its argument must be dead.

Template Parameters

F	A type that supports the function call operator: bool operator(const cvinput&)

Parameters

match Defines the condition of the elements to remove.

Returns: The number of removed inputs.

See also: cvargument::IsDead()

Definition at line 334 of file delta.hpp.

◆ result()

rvsdg::Input & jlm::rvsdg::DeltaNode::result ( ) const

noexcept

Definition at line 116 of file delta.cpp.

◆ subregion()

rvsdg::Region* jlm::rvsdg::DeltaNode::subregion ( ) const

inlinenoexcept

Definition at line 234 of file delta.hpp.

◆ Type()

const std::shared_ptr<const rvsdg::Type>& jlm::rvsdg::DeltaNode::Type ( ) const

inlinenoexcept

Definition at line 243 of file delta.hpp.

Member Data Documentation

◆ Operation_

std::unique_ptr<DeltaOperation> jlm::rvsdg::DeltaNode::Operation_

private

Definition at line 329 of file delta.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/delta.hpp
jlm/rvsdg/delta.cpp
