jlm::rvsdg::RegionArgument Class Reference

Represents the argument of a region. More...

#include <region.hpp>

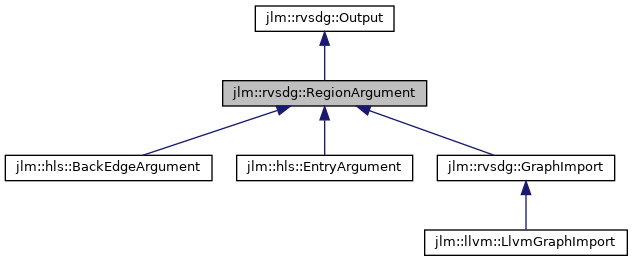

Inheritance diagram for jlm::rvsdg::RegionArgument:

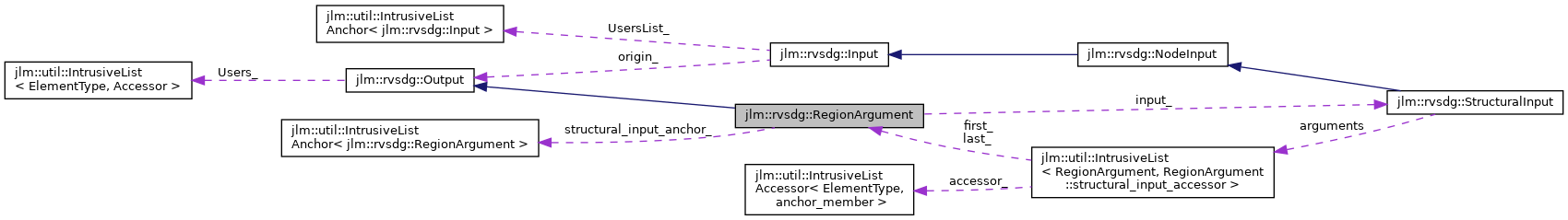

Collaboration diagram for jlm::rvsdg::RegionArgument:

Public Types
typedef util::IntrusiveListAccessor< RegionArgument, &RegionArgument::structural_input_anchor_ >	structural_input_accessor
Public Types inherited from jlm::rvsdg::Output
using	UsersList = Input::UsersList
using	UsersRange = jlm::util::IteratorRange< UsersList::Iterator >
using	UsersConstRange = jlm::util::IteratorRange< UsersList::ConstIterator >

Public Member Functions
	~RegionArgument () noexcept override
	RegionArgument (rvsdg::Region *region, StructuralInput *input, std::shared_ptr< const rvsdg::Type > type)
	RegionArgument (const RegionArgument &)=delete
	RegionArgument (RegionArgument &&)=delete
RegionArgument &	operator= (const RegionArgument &)=delete
RegionArgument &	operator= (RegionArgument &&)=delete
std::string	debug_string () const override
StructuralInput *	input () const noexcept
virtual RegionArgument &	Copy (Region &region, StructuralInput *input) const
Public Member Functions inherited from jlm::rvsdg::Output
virtual	~Output () noexcept
	Output (const Output &)=delete
	Output (Output &&)=delete
Output &	operator= (const Output &)=delete
Output &	operator= (Output &&)=delete
size_t	index () const noexcept
size_t	nusers () const noexcept
bool	IsDead () const noexcept
void	divert_users (jlm::rvsdg::Output *new_origin)
template<typename F >
size_t	divertUsersWhere (Output &newOrigin, const F &match)
rvsdg::Input &	SingleUser () noexcept
UsersRange	Users ()
UsersConstRange	Users () const
const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept
rvsdg::Region *	region () const noexcept
std::variant< Node *, Region * >	GetOwner () const noexcept

Static Public Member Functions
static RegionArgument &	Create (rvsdg::Region &region, StructuralInput *input, std::shared_ptr< const rvsdg::Type > type)
	Creates region entry argument. More...

Private Attributes
util::IntrusiveListAnchor< RegionArgument >	structural_input_anchor_ {}
StructuralInput *	input_

Additional Inherited Members
Protected Member Functions inherited from jlm::rvsdg::Output
	Output (Node &owner, std::shared_ptr< const rvsdg::Type > type)
	Output (Region *owner, std::shared_ptr< const rvsdg::Type > type)

Detailed Description

Represents the argument of a region.

Region arguments represent the initial values of the region's acyclic graph. These values are mapped to the arguments throughout the execution, and the concrete semantics of this mapping depends on the structural node the region is part of. A region argument is either linked with a StructuralInput or is a standalone argument.

Definition at line 40 of file region.hpp.

Member Typedef Documentation

structural_input_accessor

typedef util::IntrusiveListAccessor<RegionArgument, &RegionArgument::structural_input_anchor_> jlm::rvsdg::RegionArgument::structural_input_accessor

Definition at line 46 of file region.hpp.

Constructor & Destructor Documentation

~RegionArgument()

jlm::rvsdg::RegionArgument::~RegionArgument ( )

overridenoexcept

Definition at line 22 of file region.cpp.

RegionArgument() [1/3]

jlm::rvsdg::RegionArgument::RegionArgument	(	rvsdg::Region *	region,
		StructuralInput *	input,
		std::shared_ptr< const rvsdg::Type >	type
	)

Definition at line 28 of file region.cpp.

RegionArgument() [2/3]

jlm::rvsdg::RegionArgument::RegionArgument ( const RegionArgument &  )

delete

RegionArgument() [3/3]

jlm::rvsdg::RegionArgument::RegionArgument ( RegionArgument &&  )

delete

Member Function Documentation

Copy()

RegionArgument & jlm::rvsdg::RegionArgument::Copy ( Region &  region, StructuralInput *  input  ) const

virtual

Creates a copy of the argument in region with the structural_input input.

Parameters

region	The region where the copy of the argument is created in.
input	The structural_input to the argument, if any.

Returns

A reference to the copied argument.

Reimplemented in jlm::llvm::LlvmGraphImport, jlm::hls::BackEdgeArgument, jlm::hls::EntryArgument, and jlm::rvsdg::GraphImport.

Definition at line 56 of file region.cpp.

Create()

RegionArgument & jlm::rvsdg::RegionArgument::Create ( rvsdg::Region &  region, StructuralInput *  input, std::shared_ptr< const rvsdg::Type >  type  )

static

Creates region entry argument.

Parameters

region	Region to create argument for.
input	(optional) input of parent node associated with this argument (deprecated, will be removed soon).
type	Result type.

Returns

Reference to the created argument.

Creates an argument and registers it with the given region.

Definition at line 62 of file region.cpp.

debug_string()

std::string jlm::rvsdg::RegionArgument::debug_string ( ) const

overridevirtual

Reimplemented from jlm::rvsdg::Output.

Definition at line 50 of file region.cpp.

input()

StructuralInput* jlm::rvsdg::RegionArgument::input ( ) const

inlinenoexcept

Definition at line 69 of file region.hpp.

operator=() [1/2]

RegionArgument& jlm::rvsdg::RegionArgument::operator= ( const RegionArgument &  )

delete

operator=() [2/2]

RegionArgument& jlm::rvsdg::RegionArgument::operator= ( RegionArgument &&  )

delete

Member Data Documentation

input_

StructuralInput* jlm::rvsdg::RegionArgument::input_

private

Definition at line 107 of file region.hpp.

structural_input_anchor_

util::IntrusiveListAnchor<RegionArgument> jlm::rvsdg::RegionArgument::structural_input_anchor_ {}

private

Definition at line 42 of file region.hpp.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/region.hpp
• jlm/rvsdg/region.cpp
