#include <RvsdgModule.hpp>

Inheritance diagram for jlm::llvm::LlvmGraphImport:

[legend]

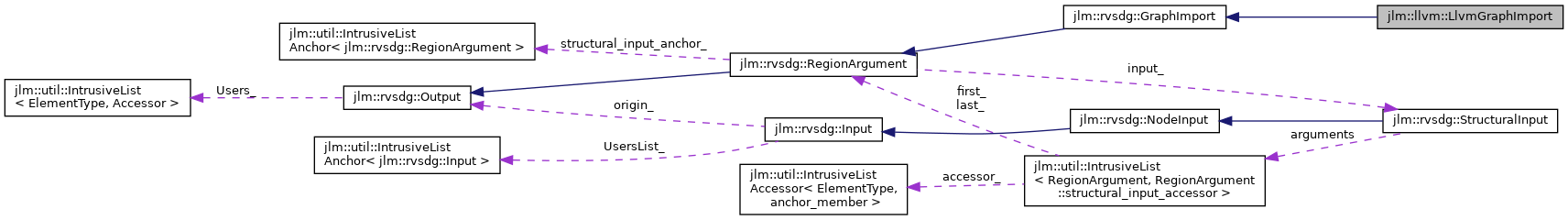

Collaboration diagram for jlm::llvm::LlvmGraphImport:

[legend]

Public Member Functions
size_t	getAlignment () const noexcept

const Linkage &	linkage () const noexcept

const CallingConvention &	callingConvention () const noexcept

bool	isConstant () const noexcept

const std::shared_ptr< const jlm::rvsdg::Type > &	ValueType () const noexcept

const std::shared_ptr< const jlm::rvsdg::Type > &	ImportedType () const noexcept

LlvmGraphImport &	Copy (rvsdg::Region &region, rvsdg::StructuralInput *input) const override

Public Member Functions inherited from jlm::rvsdg::GraphImport
	GraphImport (Graph &graph, std::shared_ptr< const rvsdg::Type > type, std::string name)

const std::string &	Name () const noexcept

std::string	debug_string () const override

GraphImport &	Copy (Region &region, StructuralInput *input) const override

Public Member Functions inherited from jlm::rvsdg::RegionArgument
	~RegionArgument () noexcept override

	RegionArgument (rvsdg::Region region, StructuralInput input, std::shared_ptr< const rvsdg::Type > type)

	RegionArgument (const RegionArgument &)=delete

	RegionArgument (RegionArgument &&)=delete

RegionArgument &	operator= (const RegionArgument &)=delete

RegionArgument &	operator= (RegionArgument &&)=delete

std::string	debug_string () const override

StructuralInput *	input () const noexcept

Public Member Functions inherited from jlm::rvsdg::Output
virtual	~Output () noexcept

	Output (const Output &)=delete

	Output (Output &&)=delete

Output &	operator= (const Output &)=delete

Output &	operator= (Output &&)=delete

size_t	index () const noexcept

size_t	nusers () const noexcept

bool	IsDead () const noexcept

void	divert_users (jlm::rvsdg::Output *new_origin)

template<typename F >
size_t	divertUsersWhere (Output &newOrigin, const F &match)

rvsdg::Input &	SingleUser () noexcept

UsersRange	Users ()

UsersConstRange	Users () const

const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept

rvsdg::Region *	region () const noexcept

std::variant< Node , Region >	GetOwner () const noexcept

Static Public Member Functions
static LlvmGraphImport &	create (rvsdg::Graph &graph, std::shared_ptr< const rvsdg::Type > valueType, std::shared_ptr< const rvsdg::Type > importedType, std::string name, Linkage linkage, CallingConvention callingConvention, const bool isConstant, const size_t alignment)

static LlvmGraphImport &	createGlobalImport (rvsdg::Graph &graph, std::shared_ptr< const rvsdg::Type > valueType, std::shared_ptr< const rvsdg::Type > importedType, std::string name, Linkage linkage, const bool isConstant, const size_t alignment)

static LlvmGraphImport &	createFunctionImport (rvsdg::Graph &graph, std::shared_ptr< const rvsdg::FunctionType > functionType, std::string name, Linkage linkage, CallingConvention callingConvention)

Static Public Member Functions inherited from jlm::rvsdg::GraphImport
static GraphImport &	Create (Graph &graph, std::shared_ptr< const rvsdg::Type > type, std::string name)

Static Public Member Functions inherited from jlm::rvsdg::RegionArgument
static RegionArgument &	Create (rvsdg::Region &region, StructuralInput *input, std::shared_ptr< const rvsdg::Type > type)
	Creates region entry argument. More...

Private Member Functions
	LlvmGraphImport (rvsdg::Graph &graph, std::shared_ptr< const rvsdg::Type > valueType, std::shared_ptr< const rvsdg::Type > importedType, std::string name, Linkage linkage, CallingConvention callingConvention, const bool isConstant, const size_t alignment)

Private Attributes
std::shared_ptr< const rvsdg::Type >	ValueType_

std::shared_ptr< const rvsdg::Type >	ImportedType_

llvm::Linkage	Linkage_

CallingConvention	callingConvention_

bool	isConstant_

size_t	alignment_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::RegionArgument
typedef util::IntrusiveListAccessor< RegionArgument, &RegionArgument::structural_input_anchor_ >	structural_input_accessor

Public Types inherited from jlm::rvsdg::Output
using	UsersList = Input::UsersList

using	UsersRange = jlm::util::IteratorRange< UsersList::Iterator >

using	UsersConstRange = jlm::util::IteratorRange< UsersList::ConstIterator >

Protected Member Functions inherited from jlm::rvsdg::Output
	Output (Node &owner, std::shared_ptr< const rvsdg::Type > type)

	Output (Region *owner, std::shared_ptr< const rvsdg::Type > type)

Detailed Description

Represents an import into the RVSDG of an external entity. It is used to model LLVM module declarations.

Definition at line 22 of file RvsdgModule.hpp.

Constructor & Destructor Documentation

◆ LlvmGraphImport()

jlm::llvm::LlvmGraphImport::LlvmGraphImport	(	rvsdg::Graph &	graph,
		std::shared_ptr< const rvsdg::Type >	valueType,
		std::shared_ptr< const rvsdg::Type >	importedType,
		std::string	name,
		Linkage	linkage,
		CallingConvention	callingConvention,
		const bool	isConstant,
		const size_t	alignment
	)

inlineprivate

Definition at line 24 of file RvsdgModule.hpp.

Member Function Documentation

◆ callingConvention()

const CallingConvention& jlm::llvm::LlvmGraphImport::callingConvention ( ) const

inlinenoexcept

The calling convention of the imported symbol. Only applies to imported functions, not global variables.

Returns: the calling convention of the imported function.

Definition at line 61 of file RvsdgModule.hpp.

◆ Copy()

LlvmGraphImport & jlm::llvm::LlvmGraphImport::Copy	(	rvsdg::Region &	region,
		rvsdg::StructuralInput *	input
	)		const

overridevirtual

Makes a copy of this LlvmGraphImport in the given region.

Parameters

region	the region to create the copy in. Must be a root region.
input	must be nullptr

Returns: the created copy

Reimplemented from jlm::rvsdg::RegionArgument.

Definition at line 13 of file RvsdgModule.cpp.

◆ create()

static LlvmGraphImport& jlm::llvm::LlvmGraphImport::create	(	rvsdg::Graph &	graph,
		std::shared_ptr< const rvsdg::Type >	valueType,
		std::shared_ptr< const rvsdg::Type >	importedType,
		std::string	name,
		Linkage	linkage,
		CallingConvention	callingConvention,
		const bool	isConstant,
		const size_t	alignment
	)

inlinestatic

Definition at line 109 of file RvsdgModule.hpp.

◆ createFunctionImport()

static LlvmGraphImport& jlm::llvm::LlvmGraphImport::createFunctionImport	(	rvsdg::Graph &	graph,
		std::shared_ptr< const rvsdg::FunctionType >	functionType,
		std::string	name,
		Linkage	linkage,
		CallingConvention	callingConvention
	)

inlinestatic

Creates a new graph import representing an imported function.

Parameters

graph	the graph whose root region will contain the import as an argument
functionType	the type of the function, which is also the type of the argument
name	the name of the function symbol
linkage	the linkage of the function symbol
callingConvention	the calling convention of the function

Definition at line 172 of file RvsdgModule.hpp.

◆ createGlobalImport()

static LlvmGraphImport& jlm::llvm::LlvmGraphImport::createGlobalImport	(	rvsdg::Graph &	graph,
		std::shared_ptr< const rvsdg::Type >	valueType,
		std::shared_ptr< const rvsdg::Type >	importedType,
		std::string	name,
		Linkage	linkage,
		const bool	isConstant,
		const size_t	alignment
	)

inlinestatic

Creates a new graph import representing a global variable.

Parameters

graph	the graph whose root region will contain the import as an argument
valueType	the underlying type of the global variable
importedType	the reference type used to access the global variable (e.g. PointerType)
name	the name of the global variable symbol
linkage	the linkage of the global variable symbol
isConstant	true if the global variable is constant memory
alignment	the alignment of the global variable

Definition at line 143 of file RvsdgModule.hpp.

◆ getAlignment()

size_t jlm::llvm::LlvmGraphImport::getAlignment ( ) const

inlinenoexcept

Definition at line 44 of file RvsdgModule.hpp.

◆ ImportedType()

const std::shared_ptr<const jlm::rvsdg::Type>& jlm::llvm::LlvmGraphImport::ImportedType ( ) const

inlinenoexcept

Symbols are imported as references to an underlying function or global variable. The imported type is the type of this reference, e.g., a pointer or function type. The imported type is the actual type of the RVSDG region argument.

Returns: the type used to reference the imported symbol.

See also: ValueType

Definition at line 94 of file RvsdgModule.hpp.

◆ isConstant()

bool jlm::llvm::LlvmGraphImport::isConstant ( ) const

inlinenoexcept

Definition at line 67 of file RvsdgModule.hpp.

◆ linkage()

const Linkage& jlm::llvm::LlvmGraphImport::linkage ( ) const

inlinenoexcept

Definition at line 50 of file RvsdgModule.hpp.

◆ ValueType()

const std::shared_ptr<const jlm::rvsdg::Type>& jlm::llvm::LlvmGraphImport::ValueType ( ) const

inlinenoexcept

Symbols are imported as references to an underlying function or global variable. The value type is the type of this underlying target.

Returns: the underlying type of the imported symbol

See also: ImportedType

Definition at line 80 of file RvsdgModule.hpp.

Member Data Documentation

◆ alignment_

size_t jlm::llvm::LlvmGraphImport::alignment_

private

Definition at line 196 of file RvsdgModule.hpp.

◆ callingConvention_

CallingConvention jlm::llvm::LlvmGraphImport::callingConvention_

private

Definition at line 194 of file RvsdgModule.hpp.

◆ ImportedType_

std::shared_ptr<const rvsdg::Type> jlm::llvm::LlvmGraphImport::ImportedType_

private

Definition at line 192 of file RvsdgModule.hpp.

◆ isConstant_

bool jlm::llvm::LlvmGraphImport::isConstant_

private

Definition at line 195 of file RvsdgModule.hpp.

◆ Linkage_

llvm::Linkage jlm::llvm::LlvmGraphImport::Linkage_

private

Definition at line 193 of file RvsdgModule.hpp.

◆ ValueType_

std::shared_ptr<const rvsdg::Type> jlm::llvm::LlvmGraphImport::ValueType_

private

Definition at line 191 of file RvsdgModule.hpp.

The documentation for this class was generated from the following files:

jlm/llvm/ir/RvsdgModule.hpp
jlm/llvm/ir/RvsdgModule.cpp
