#include <graph.hpp>

Inheritance diagram for jlm::rvsdg::GraphImport:

[legend]

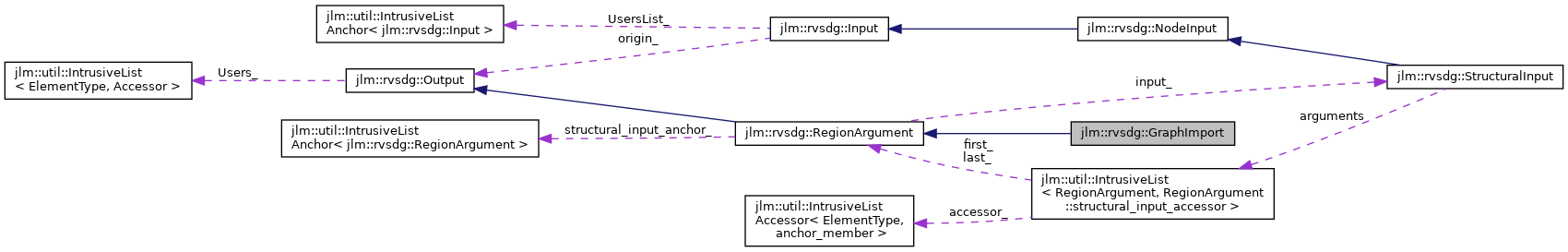

Collaboration diagram for jlm::rvsdg::GraphImport:

[legend]

Public Member Functions
	GraphImport (Graph &graph, std::shared_ptr< const rvsdg::Type > type, std::string name)

const std::string &	Name () const noexcept

std::string	debug_string () const override

GraphImport &	Copy (Region &region, StructuralInput *input) const override

Public Member Functions inherited from jlm::rvsdg::RegionArgument
	~RegionArgument () noexcept override

	RegionArgument (rvsdg::Region region, StructuralInput input, std::shared_ptr< const rvsdg::Type > type)

	RegionArgument (const RegionArgument &)=delete

	RegionArgument (RegionArgument &&)=delete

RegionArgument &	operator= (const RegionArgument &)=delete

RegionArgument &	operator= (RegionArgument &&)=delete

std::string	debug_string () const override

StructuralInput *	input () const noexcept

Public Member Functions inherited from jlm::rvsdg::Output
virtual	~Output () noexcept

	Output (const Output &)=delete

	Output (Output &&)=delete

Output &	operator= (const Output &)=delete

Output &	operator= (Output &&)=delete

size_t	index () const noexcept

size_t	nusers () const noexcept

bool	IsDead () const noexcept

void	divert_users (jlm::rvsdg::Output *new_origin)

template<typename F >
size_t	divertUsersWhere (Output &newOrigin, const F &match)

rvsdg::Input &	SingleUser () noexcept

UsersRange	Users ()

UsersConstRange	Users () const

const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept

rvsdg::Region *	region () const noexcept

std::variant< Node , Region >	GetOwner () const noexcept

Static Public Member Functions
static GraphImport &	Create (Graph &graph, std::shared_ptr< const rvsdg::Type > type, std::string name)

Static Public Member Functions inherited from jlm::rvsdg::RegionArgument
static RegionArgument &	Create (rvsdg::Region &region, StructuralInput *input, std::shared_ptr< const rvsdg::Type > type)
	Creates region entry argument.

Private Attributes
std::string	Name_

Additional Inherited Members
Public Types inherited from jlm::rvsdg::RegionArgument
typedef util::IntrusiveListAccessor< RegionArgument, &RegionArgument::structural_input_anchor_ >	structural_input_accessor

Public Types inherited from jlm::rvsdg::Output
using	UsersList = Input::UsersList

using	UsersRange = jlm::util::IteratorRange< UsersList::Iterator >

using	UsersConstRange = jlm::util::IteratorRange< UsersList::ConstIterator >

Protected Member Functions inherited from jlm::rvsdg::Output
	Output (Node &owner, std::shared_ptr< const rvsdg::Type > type)

	Output (Region *owner, std::shared_ptr< const rvsdg::Type > type)

Detailed Description

Represents an import into the RVSDG of an external entity.

Definition at line 19 of file graph.hpp.

Constructor & Destructor Documentation

◆ GraphImport()

jlm::rvsdg::GraphImport::GraphImport	(	Graph &	graph,
		std::shared_ptr< const rvsdg::Type >	type,
		std::string	name
	)

Definition at line 16 of file graph.cpp.

Member Function Documentation

◆ Copy()

GraphImport & jlm::rvsdg::GraphImport::Copy	(	Region &	region,
		StructuralInput *	input
	)		const

overridevirtual

Creates a copy of the argument in region with the structural_input input.

Parameters

region	The region where the copy of the argument is created in.
input	The structural_input to the argument, if any.

Returns: A reference to the copied argument.

Reimplemented from jlm::rvsdg::RegionArgument.

Reimplemented in jlm::llvm::LlvmGraphImport.

Definition at line 28 of file graph.cpp.

◆ Create()

GraphImport & jlm::rvsdg::GraphImport::Create	(	Graph &	graph,
		std::shared_ptr< const rvsdg::Type >	type,
		std::string	name
	)

static

Definition at line 36 of file graph.cpp.

◆ debug_string()

std::string jlm::rvsdg::GraphImport::debug_string ( ) const

overridevirtual

Reimplemented from jlm::rvsdg::Output.

Definition at line 22 of file graph.cpp.

◆ Name()

const std::string & jlm::rvsdg::GraphImport::Name ( ) const

inlinenoexcept

Definition at line 25 of file graph.hpp.

Member Data Documentation

◆ Name_

std::string jlm::rvsdg::GraphImport::Name_

private

Definition at line 40 of file graph.hpp.

The documentation for this class was generated from the following files:

jlm/rvsdg/graph.hpp
jlm/rvsdg/graph.cpp
