#include <hls.hpp>

Inheritance diagram for jlm::hls::EntryArgument:

[legend]

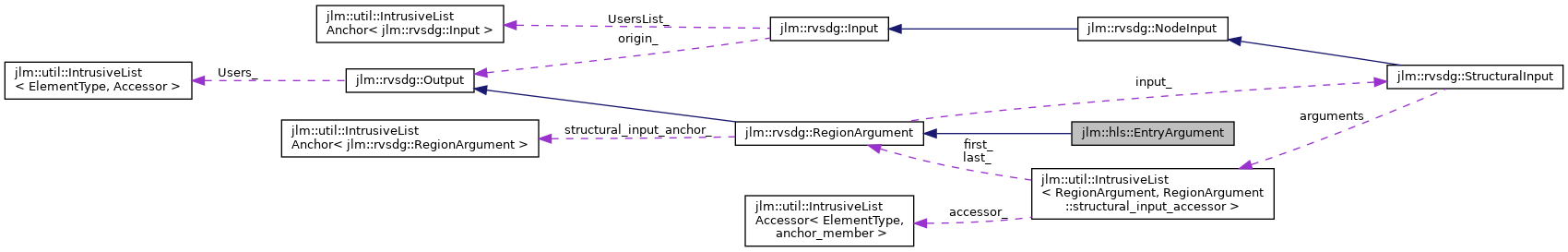

Collaboration diagram for jlm::hls::EntryArgument:

[legend]

Public Member Functions
	~EntryArgument () noexcept override

EntryArgument &	Copy (rvsdg::Region &region, rvsdg::StructuralInput *input) const override

Public Member Functions inherited from jlm::rvsdg::RegionArgument
	~RegionArgument () noexcept override

	RegionArgument (rvsdg::Region region, StructuralInput input, std::shared_ptr< const rvsdg::Type > type)

	RegionArgument (const RegionArgument &)=delete

	RegionArgument (RegionArgument &&)=delete

RegionArgument &	operator= (const RegionArgument &)=delete

RegionArgument &	operator= (RegionArgument &&)=delete

std::string	debug_string () const override

StructuralInput *	input () const noexcept

Public Member Functions inherited from jlm::rvsdg::Output
virtual	~Output () noexcept

	Output (const Output &)=delete

	Output (Output &&)=delete

Output &	operator= (const Output &)=delete

Output &	operator= (Output &&)=delete

size_t	index () const noexcept

size_t	nusers () const noexcept

bool	IsDead () const noexcept

void	divert_users (jlm::rvsdg::Output *new_origin)

template<typename F >
size_t	divertUsersWhere (Output &newOrigin, const F &match)

rvsdg::Input &	SingleUser () noexcept

UsersRange	Users ()

UsersConstRange	Users () const

const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept

rvsdg::Region *	region () const noexcept

std::variant< Node , Region >	GetOwner () const noexcept

Static Public Member Functions
static EntryArgument &	Create (rvsdg::Region &region, rvsdg::StructuralInput &input, const std::shared_ptr< const rvsdg::Type > type)

Static Public Member Functions inherited from jlm::rvsdg::RegionArgument
static RegionArgument &	Create (rvsdg::Region &region, StructuralInput *input, std::shared_ptr< const rvsdg::Type > type)
	Creates region entry argument.

Private Member Functions
	EntryArgument (rvsdg::Region &region, rvsdg::StructuralInput &input, const std::shared_ptr< const rvsdg::Type > type)

Private Attributes
friend	LoopNode

Additional Inherited Members
Public Types inherited from jlm::rvsdg::RegionArgument
typedef util::IntrusiveListAccessor< RegionArgument, &RegionArgument::structural_input_anchor_ >	structural_input_accessor

Public Types inherited from jlm::rvsdg::Output
using	UsersList = Input::UsersList

using	UsersRange = jlm::util::IteratorRange< UsersList::Iterator >

using	UsersConstRange = jlm::util::IteratorRange< UsersList::ConstIterator >

Protected Member Functions inherited from jlm::rvsdg::Output
	Output (Node &owner, std::shared_ptr< const rvsdg::Type > type)

	Output (Region *owner, std::shared_ptr< const rvsdg::Type > type)

Detailed Description

Represents the entry argument for the HLS loop.

Definition at line 588 of file hls.hpp.

Constructor & Destructor Documentation

◆ EntryArgument()

jlm::hls::EntryArgument::EntryArgument	(	rvsdg::Region &	region,
		rvsdg::StructuralInput &	input,
		const std::shared_ptr< const rvsdg::Type >	type
	)

inlineprivate

Definition at line 592 of file hls.hpp.

◆ ~EntryArgument()

jlm::hls::EntryArgument::~EntryArgument ( )

overridedefaultnoexcept

Member Function Documentation

◆ Copy()

EntryArgument & jlm::hls::EntryArgument::Copy	(	rvsdg::Region &	region,
		rvsdg::StructuralInput *	input
	)		const

overridevirtual

Creates a copy of the argument in region with the structural_input input.

Parameters

region	The region where the copy of the argument is created in.
input	The structural_input to the argument, if any.

Returns: A reference to the copied argument.

Reimplemented from jlm::rvsdg::RegionArgument.

Definition at line 100 of file hls.cpp.

◆ Create()

static EntryArgument & jlm::hls::EntryArgument::Create	(	rvsdg::Region &	region,
		rvsdg::StructuralInput &	input,
		const std::shared_ptr< const rvsdg::Type >	type
	)

inlinestatic

Definition at line 608 of file hls.hpp.

Member Data Documentation

◆ LoopNode

friend jlm::hls::EntryArgument::LoopNode

private

Definition at line 590 of file hls.hpp.

The documentation for this class was generated from the following files:

jlm/hls/ir/hls.hpp
jlm/hls/ir/hls.cpp
