jlm::rvsdg::RegionObserver Class Reference

Proxy object to observe changes to a region. More...

#include <region.hpp>

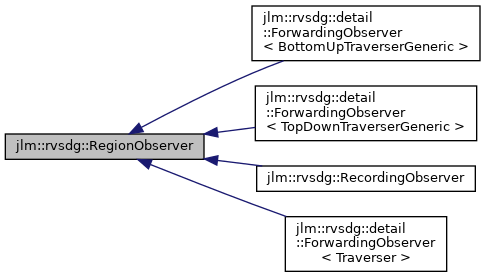

Inheritance diagram for jlm::rvsdg::RegionObserver:

Collaboration diagram for jlm::rvsdg::RegionObserver:

Public Member Functions
virtual	~RegionObserver () noexcept
	RegionObserver (const Region &region)
	RegionObserver (const RegionObserver &)=delete
RegionObserver &	operator= (const RegionObserver &)=delete
virtual void	onNodeCreate (Node *node)=0
virtual void	onNodeDestroy (Node *node)=0
virtual void	onInputCreate (Input *input)=0
virtual void	onInputChange (Input *input, Output *old_origin, Output *new_origin)=0
virtual void	onInputDestroy (Input *input)=0

Private Attributes
RegionObserver **	pprev_
RegionObserver *	next_

Friends
class	Region

Detailed Description

Proxy object to observe changes to a region.

Subscribers can implement and instantiate this interface for a specific region to receive notifications about the region.

Definition at line 782 of file region.hpp.

Constructor & Destructor Documentation

~RegionObserver()

jlm::rvsdg::RegionObserver::~RegionObserver ( )

virtualnoexcept

Definition at line 588 of file region.cpp.

RegionObserver() [1/2]

jlm::rvsdg::RegionObserver::RegionObserver ( const Region &  region )

explicit

Definition at line 597 of file region.cpp.

RegionObserver() [2/2]

jlm::rvsdg::RegionObserver::RegionObserver ( const RegionObserver &  )

delete

Member Function Documentation

onInputChange()

virtual void jlm::rvsdg::RegionObserver::onInputChange ( Input *  input, Output *  old_origin, Output *  new_origin  )

pure virtual

Called right after the given input gets a new origin.

Parameters

input	the input.
old_origin	the input's old origin.
new_origin	the input's new origin.

Implemented in jlm::rvsdg::detail::ForwardingObserver< Traverser >, jlm::rvsdg::detail::ForwardingObserver< BottomUpTraverserGeneric >, jlm::rvsdg::detail::ForwardingObserver< TopDownTraverserGeneric >, and jlm::rvsdg::RecordingObserver.

onInputCreate()

virtual void jlm::rvsdg::RegionObserver::onInputCreate ( Input *  input )

pure virtual

Called after a node gets a new input, or the region gets a new result. This method is not called when creating new nodes, only modifying existing nodes.

Parameters

input

the new input

Implemented in jlm::rvsdg::detail::ForwardingObserver< Traverser >, jlm::rvsdg::detail::ForwardingObserver< BottomUpTraverserGeneric >, jlm::rvsdg::detail::ForwardingObserver< TopDownTraverserGeneric >, and jlm::rvsdg::RecordingObserver.

onInputDestroy()

virtual void jlm::rvsdg::RegionObserver::onInputDestroy ( Input *  input )

pure virtual

Called right before a node input or region result is removed. This method is not called when deleting nodes, only modifying existing nodes.

Parameters

input

the input that is removed

Implemented in jlm::rvsdg::detail::ForwardingObserver< Traverser >, jlm::rvsdg::detail::ForwardingObserver< BottomUpTraverserGeneric >, jlm::rvsdg::detail::ForwardingObserver< TopDownTraverserGeneric >, and jlm::rvsdg::RecordingObserver.

onNodeCreate()

virtual void jlm::rvsdg::RegionObserver::onNodeCreate ( Node *  node )

pure virtual

Called right after a node is added to the region, after the node has its inputs and output added.

Parameters

node	the node being added

Implemented in jlm::rvsdg::detail::ForwardingObserver< Traverser >, jlm::rvsdg::detail::ForwardingObserver< BottomUpTraverserGeneric >, jlm::rvsdg::detail::ForwardingObserver< TopDownTraverserGeneric >, and jlm::rvsdg::RecordingObserver.

onNodeDestroy()

virtual void jlm::rvsdg::RegionObserver::onNodeDestroy ( Node *  node )

pure virtual

Called right before a node is removed from the region, before the node has its inputs and outputs removed.

Parameters

node	the node being removed

Implemented in jlm::rvsdg::detail::ForwardingObserver< Traverser >, jlm::rvsdg::detail::ForwardingObserver< BottomUpTraverserGeneric >, jlm::rvsdg::detail::ForwardingObserver< TopDownTraverserGeneric >, and jlm::rvsdg::RecordingObserver.

operator=()

RegionObserver& jlm::rvsdg::RegionObserver::operator= ( const RegionObserver &  )

delete

Friends And Related Function Documentation

Region

friend class Region

friend

Definition at line 839 of file region.hpp.

Member Data Documentation

next_

RegionObserver* jlm::rvsdg::RegionObserver::next_

private

Definition at line 837 of file region.hpp.

pprev_

RegionObserver** jlm::rvsdg::RegionObserver::pprev_

private

Definition at line 836 of file region.hpp.

---

The documentation for this class was generated from the following files:

• jlm/rvsdg/region.hpp
• jlm/rvsdg/region.cpp
