jlm::llvm::LoadOperation Class Reference

#include <Load.hpp>

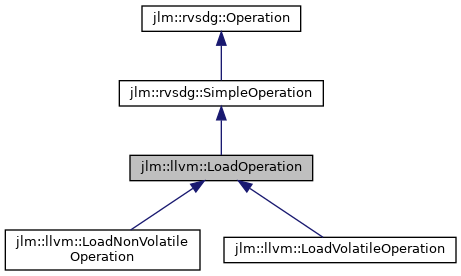

Inheritance diagram for jlm::llvm::LoadOperation:

Collaboration diagram for jlm::llvm::LoadOperation:

Public Member Functions
size_t	GetAlignment () const noexcept
std::shared_ptr< const rvsdg::Type >	GetLoadedType () const noexcept
size_t	NumMemoryStates () const noexcept
Public Member Functions inherited from jlm::rvsdg::SimpleOperation
	~SimpleOperation () noexcept override
	SimpleOperation (std::vector< std::shared_ptr< const jlm::rvsdg::Type >> operands, std::vector< std::shared_ptr< const jlm::rvsdg::Type >> results)
size_t	narguments () const noexcept
const std::shared_ptr< const rvsdg::Type > &	argument (size_t index) const noexcept
size_t	nresults () const noexcept
const std::shared_ptr< const rvsdg::Type > &	result (size_t index) const noexcept
Public Member Functions inherited from jlm::rvsdg::Operation
virtual	~Operation () noexcept
virtual bool	operator== (const Operation &other) const noexcept=0
virtual std::string	debug_string () const =0
virtual std::unique_ptr< Operation >	copy () const =0
bool	operator!= (const Operation &other) const noexcept

Static Public Member Functions
static rvsdg::Input &	AddressInput (const rvsdg::Node &node) noexcept
static rvsdg::Output &	LoadedValueOutput (const rvsdg::Node &node)
static rvsdg::Node::OutputIteratorRange	MemoryStateOutputs (const rvsdg::Node &node) noexcept
static rvsdg::Node::InputIteratorRange	MemoryStateInputs (const rvsdg::Node &node) noexcept
static rvsdg::Input &	MapMemoryStateOutputToInput (const rvsdg::Output &output)
static rvsdg::Output &	mapMemoryStateInputToOutput (const rvsdg::Input &input)

Protected Member Functions
	LoadOperation (const std::vector< std::shared_ptr< const rvsdg::Type >> &operandTypes, const std::vector< std::shared_ptr< const rvsdg::Type >> &resultTypes, const size_t numMemoryStates, const size_t alignment)

Private Attributes
size_t	NumMemoryStates_
size_t	Alignment_

Detailed Description

Abstract base class for load operations.

See also

LoadVolatileOperation

LoadNonVolatileOperation

Definition at line 25 of file Load.hpp.

Constructor & Destructor Documentation

LoadOperation()

jlm::llvm::LoadOperation::LoadOperation ( const std::vector< std::shared_ptr< const rvsdg::Type >> &  operandTypes, const std::vector< std::shared_ptr< const rvsdg::Type >> &  resultTypes, const size_t  numMemoryStates, const size_t  alignment  )

inlineprotected

Definition at line 28 of file Load.hpp.

Member Function Documentation

AddressInput()

static rvsdg::Input& jlm::llvm::LoadOperation::AddressInput ( const rvsdg::Node &  node )

inlinestaticnoexcept

Definition at line 75 of file Load.hpp.

GetAlignment()

size_t jlm::llvm::LoadOperation::GetAlignment ( ) const

inlinenoexcept

Definition at line 57 of file Load.hpp.

GetLoadedType()

std::shared_ptr<const rvsdg::Type> jlm::llvm::LoadOperation::GetLoadedType ( ) const

inlinenoexcept

Definition at line 63 of file Load.hpp.

LoadedValueOutput()

static rvsdg::Output& jlm::llvm::LoadOperation::LoadedValueOutput ( const rvsdg::Node &  node )

inlinestatic

Definition at line 84 of file Load.hpp.

mapMemoryStateInputToOutput()

static rvsdg::Output& jlm::llvm::LoadOperation::mapMemoryStateInputToOutput ( const rvsdg::Input &  input )

inlinestatic

Maps a memory state input of a load operation to its corresponding memory state output.

Definition at line 157 of file Load.hpp.

MapMemoryStateOutputToInput()

static rvsdg::Input& jlm::llvm::LoadOperation::MapMemoryStateOutputToInput ( const rvsdg::Output &  output )

inlinestatic

Maps a memory state output of a load operation to its corresponding memory state input.

Definition at line 142 of file Load.hpp.

MemoryStateInputs()

static rvsdg::Node::InputIteratorRange jlm::llvm::LoadOperation::MemoryStateInputs ( const rvsdg::Node &  node )

inlinestaticnoexcept

Returns a range over the memory state inputs of a LoadOperation node.

Parameters

node	A LoadOperation node.

Returns

A range over the memory state inputs of node.

Precondition

node is expected to be a LoadOperation node.

Definition at line 124 of file Load.hpp.

MemoryStateOutputs()

static rvsdg::Node::OutputIteratorRange jlm::llvm::LoadOperation::MemoryStateOutputs ( const rvsdg::Node &  node )

inlinestaticnoexcept

Returns a range over the memory state outputs of a LoadOperation node.

Parameters

node	A LoadOperation node.

Returns

A range over the memory state outputs of node.

Precondition

node is expected to be a LoadOperation node.

Definition at line 101 of file Load.hpp.

NumMemoryStates()

size_t jlm::llvm::LoadOperation::NumMemoryStates ( ) const

inlinenoexcept

Definition at line 69 of file Load.hpp.

Member Data Documentation

Alignment_

size_t jlm::llvm::LoadOperation::Alignment_

private

Definition at line 170 of file Load.hpp.

NumMemoryStates_

size_t jlm::llvm::LoadOperation::NumMemoryStates_

private

Definition at line 169 of file Load.hpp.

---

The documentation for this class was generated from the following file:

• jlm/llvm/ir/operators/Load.hpp
