jlm::llvm::PhiTest2 Class Reference

PhiTest2 class. More...

#include <TestRvsdgs.hpp>

Inheritance diagram for jlm::llvm::PhiTest2:

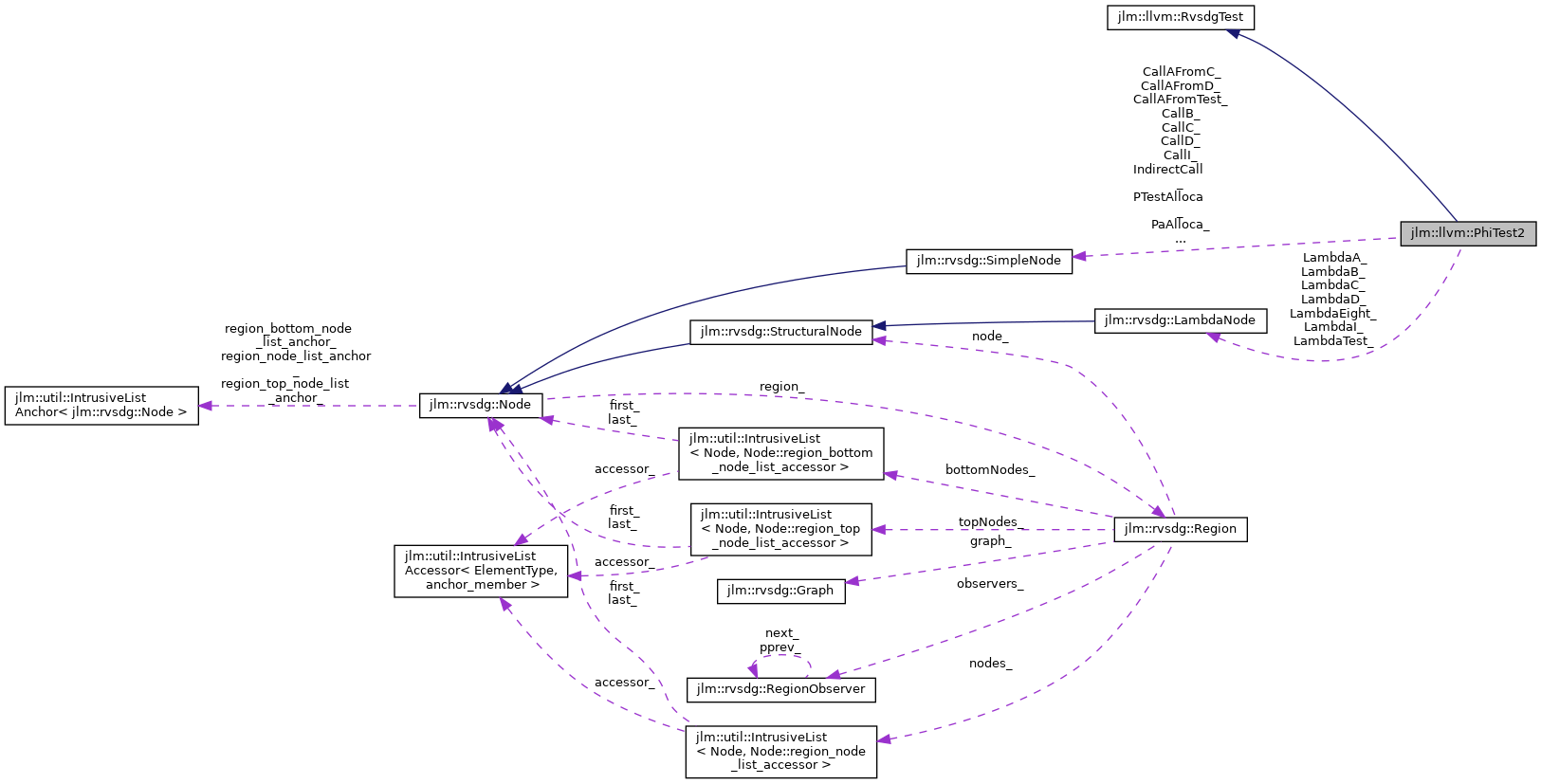

Collaboration diagram for jlm::llvm::PhiTest2:

Public Member Functions
jlm::rvsdg::LambdaNode &	GetLambdaEight () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaI () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaA () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaB () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaC () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaD () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaTest () const noexcept
rvsdg::SimpleNode &	GetCallAFromTest () const noexcept
rvsdg::SimpleNode &	GetCallAFromC () const noexcept
rvsdg::SimpleNode &	GetCallAFromD () const noexcept
rvsdg::SimpleNode &	GetCallB () const noexcept
rvsdg::SimpleNode &	GetCallC () const noexcept
rvsdg::SimpleNode &	GetCallD () const noexcept
rvsdg::SimpleNode &	GetCallI () const noexcept
rvsdg::SimpleNode &	GetIndirectCall () const noexcept
jlm::rvsdg::SimpleNode &	GetPTestAlloca () const noexcept
jlm::rvsdg::SimpleNode &	GetPaAlloca () const noexcept
jlm::rvsdg::SimpleNode &	GetPbAlloca () const noexcept
jlm::rvsdg::SimpleNode &	GetPcAlloca () const noexcept
jlm::rvsdg::SimpleNode &	GetPdAlloca () const noexcept
Public Member Functions inherited from jlm::llvm::RvsdgTest
virtual	~RvsdgTest ()=default
jlm::llvm::LlvmRvsdgModule &	module ()
const rvsdg::Graph &	graph ()
void	InitializeTest ()

Private Member Functions
std::unique_ptr< jlm::llvm::LlvmRvsdgModule >	SetupRvsdg () override
	Create RVSDG for this test. More...

Private Attributes
jlm::rvsdg::LambdaNode *	LambdaEight_ {}
jlm::rvsdg::LambdaNode *	LambdaI_ {}
jlm::rvsdg::LambdaNode *	LambdaA_ {}
jlm::rvsdg::LambdaNode *	LambdaB_ {}
jlm::rvsdg::LambdaNode *	LambdaC_ {}
jlm::rvsdg::LambdaNode *	LambdaD_ {}
jlm::rvsdg::LambdaNode *	LambdaTest_ {}
rvsdg::SimpleNode *	CallAFromTest_ {}
rvsdg::SimpleNode *	CallAFromC_ {}
rvsdg::SimpleNode *	CallAFromD_ {}
rvsdg::SimpleNode *	CallB_ {}
rvsdg::SimpleNode *	CallC_ {}
rvsdg::SimpleNode *	CallD_ {}
rvsdg::SimpleNode *	CallI_ {}
rvsdg::SimpleNode *	IndirectCall_ {}
jlm::rvsdg::SimpleNode *	PTestAlloca_ {}
jlm::rvsdg::SimpleNode *	PaAlloca_ {}
jlm::rvsdg::SimpleNode *	PbAlloca_ {}
jlm::rvsdg::SimpleNode *	PcAlloca_ {}
jlm::rvsdg::SimpleNode *	PdAlloca_ {}

Detailed Description

PhiTest2 class.

This function sets up an RVSDG representing the following code snippet:

static int32_t
a(int32_t*);

static int32_t
b(int32_t*);

static int32_t
c(int32_t*);

static int32_t
d(int32_t*);

static int32_t
eight()
{
  return 8;
}

static int32_t
i(int32_t(*f)())
{
  return f();
}

static int32_t
a(int32_t * x)
{
  *x = 1;
  int32_t pa;
  return b(&pa) + d(&pa);
}

static int32_t
b(int32_t * x)
{
  *x = 2;
  int32_t pb;
  return i(&eight) + c(&pb);
}

static int32_t
c(int32_t * x)
{
  *x = 3;
  int32_t pc;
  return a(&pc) + *x;
}

static int32_t
d(int32_t * x)
{
  *x = 4;
  int32_t pd;
  return a(&pd);
}

int32_t
test()
{
  int32_t pTest;
  return a(&pTest);
}

It uses a single memory state to sequentialize the respective memory operations.

Definition at line 1492 of file TestRvsdgs.hpp.

Member Function Documentation

GetCallAFromC()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallAFromC ( ) const

inlinenoexcept

Definition at line 1544 of file TestRvsdgs.hpp.

GetCallAFromD()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallAFromD ( ) const

inlinenoexcept

Definition at line 1550 of file TestRvsdgs.hpp.

GetCallAFromTest()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallAFromTest ( ) const

inlinenoexcept

Definition at line 1538 of file TestRvsdgs.hpp.

GetCallB()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallB ( ) const

inlinenoexcept

Definition at line 1556 of file TestRvsdgs.hpp.

GetCallC()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallC ( ) const

inlinenoexcept

Definition at line 1562 of file TestRvsdgs.hpp.

GetCallD()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallD ( ) const

inlinenoexcept

Definition at line 1568 of file TestRvsdgs.hpp.

GetCallI()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetCallI ( ) const

inlinenoexcept

Definition at line 1574 of file TestRvsdgs.hpp.

GetIndirectCall()

rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetIndirectCall ( ) const

inlinenoexcept

Definition at line 1580 of file TestRvsdgs.hpp.

GetLambdaA()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaA ( ) const

inlinenoexcept

Definition at line 1508 of file TestRvsdgs.hpp.

GetLambdaB()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaB ( ) const

inlinenoexcept

Definition at line 1514 of file TestRvsdgs.hpp.

GetLambdaC()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaC ( ) const

inlinenoexcept

Definition at line 1520 of file TestRvsdgs.hpp.

GetLambdaD()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaD ( ) const

inlinenoexcept

Definition at line 1526 of file TestRvsdgs.hpp.

GetLambdaEight()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaEight ( ) const

inlinenoexcept

Definition at line 1496 of file TestRvsdgs.hpp.

GetLambdaI()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaI ( ) const

inlinenoexcept

Definition at line 1502 of file TestRvsdgs.hpp.

GetLambdaTest()

jlm::rvsdg::LambdaNode& jlm::llvm::PhiTest2::GetLambdaTest ( ) const

inlinenoexcept

Definition at line 1532 of file TestRvsdgs.hpp.

GetPaAlloca()

jlm::rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetPaAlloca ( ) const

inlinenoexcept

Definition at line 1592 of file TestRvsdgs.hpp.

GetPbAlloca()

jlm::rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetPbAlloca ( ) const

inlinenoexcept

Definition at line 1598 of file TestRvsdgs.hpp.

GetPcAlloca()

jlm::rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetPcAlloca ( ) const

inlinenoexcept

Definition at line 1604 of file TestRvsdgs.hpp.

GetPdAlloca()

jlm::rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetPdAlloca ( ) const

inlinenoexcept

Definition at line 1610 of file TestRvsdgs.hpp.

GetPTestAlloca()

jlm::rvsdg::SimpleNode& jlm::llvm::PhiTest2::GetPTestAlloca ( ) const

inlinenoexcept

Definition at line 1586 of file TestRvsdgs.hpp.

SetupRvsdg()

std::unique_ptr< jlm::llvm::LlvmRvsdgModule > jlm::llvm::PhiTest2::SetupRvsdg ( )

overrideprivatevirtual

Create RVSDG for this test.

Implements jlm::llvm::RvsdgTest.

Definition at line 2310 of file TestRvsdgs.cpp.

Member Data Documentation

CallAFromC_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallAFromC_ {}

private

Definition at line 1628 of file TestRvsdgs.hpp.

CallAFromD_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallAFromD_ {}

private

Definition at line 1629 of file TestRvsdgs.hpp.

CallAFromTest_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallAFromTest_ {}

private

Definition at line 1627 of file TestRvsdgs.hpp.

CallB_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallB_ {}

private

Definition at line 1630 of file TestRvsdgs.hpp.

CallC_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallC_ {}

private

Definition at line 1631 of file TestRvsdgs.hpp.

CallD_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallD_ {}

private

Definition at line 1632 of file TestRvsdgs.hpp.

CallI_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::CallI_ {}

private

Definition at line 1633 of file TestRvsdgs.hpp.

IndirectCall_

rvsdg::SimpleNode* jlm::llvm::PhiTest2::IndirectCall_ {}

private

Definition at line 1634 of file TestRvsdgs.hpp.

LambdaA_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaA_ {}

private

Definition at line 1621 of file TestRvsdgs.hpp.

LambdaB_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaB_ {}

private

Definition at line 1622 of file TestRvsdgs.hpp.

LambdaC_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaC_ {}

private

Definition at line 1623 of file TestRvsdgs.hpp.

LambdaD_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaD_ {}

private

Definition at line 1624 of file TestRvsdgs.hpp.

LambdaEight_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaEight_ {}

private

Definition at line 1619 of file TestRvsdgs.hpp.

LambdaI_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaI_ {}

private

Definition at line 1620 of file TestRvsdgs.hpp.

LambdaTest_

jlm::rvsdg::LambdaNode* jlm::llvm::PhiTest2::LambdaTest_ {}

private

Definition at line 1625 of file TestRvsdgs.hpp.

PaAlloca_

jlm::rvsdg::SimpleNode* jlm::llvm::PhiTest2::PaAlloca_ {}

private

Definition at line 1637 of file TestRvsdgs.hpp.

PbAlloca_

jlm::rvsdg::SimpleNode* jlm::llvm::PhiTest2::PbAlloca_ {}

private

Definition at line 1638 of file TestRvsdgs.hpp.

PcAlloca_

jlm::rvsdg::SimpleNode* jlm::llvm::PhiTest2::PcAlloca_ {}

private

Definition at line 1639 of file TestRvsdgs.hpp.

PdAlloca_

jlm::rvsdg::SimpleNode* jlm::llvm::PhiTest2::PdAlloca_ {}

private

Definition at line 1640 of file TestRvsdgs.hpp.

PTestAlloca_

jlm::rvsdg::SimpleNode* jlm::llvm::PhiTest2::PTestAlloca_ {}

private

Definition at line 1636 of file TestRvsdgs.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/TestRvsdgs.hpp
• jlm/llvm/TestRvsdgs.cpp
