jlm::llvm::RvsdgTreePrinter Class Reference

RVSDG tree printer debug pass. More...

#include <RvsdgTreePrinter.hpp>

Inheritance diagram for jlm::llvm::RvsdgTreePrinter:

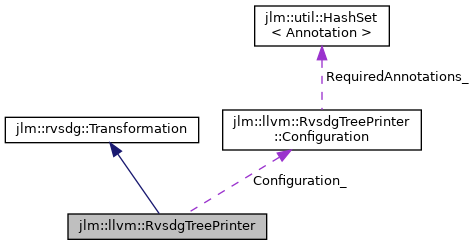

Collaboration diagram for jlm::llvm::RvsdgTreePrinter:

Classes
class	Configuration
class	Statistics

Public Member Functions
	~RvsdgTreePrinter () noexcept override
	RvsdgTreePrinter (Configuration configuration)
	RvsdgTreePrinter (const RvsdgTreePrinter &)=delete
	RvsdgTreePrinter (RvsdgTreePrinter &&)=delete
RvsdgTreePrinter &	operator= (const RvsdgTreePrinter &)=delete
RvsdgTreePrinter &	operator= (RvsdgTreePrinter &&)=delete
void	Run (rvsdg::RvsdgModule &rvsdgModule, util::StatisticsCollector &statisticsCollector) override
	Perform RVSDG transformation. More...
Public Member Functions inherited from jlm::rvsdg::Transformation
virtual	~Transformation () noexcept
	Transformation (std::string_view Name)
const std::string_view &	GetName () const noexcept
void	Run (RvsdgModule &module)
	Perform RVSDG transformation. More...

Private Member Functions
util::AnnotationMap	ComputeAnnotationMap (const rvsdg::Graph &rvsdg) const

Static Private Member Functions
static void	AnnotateNumNodes (const rvsdg::Graph &rvsdg, const std::function< bool(const rvsdg::Node &)> &match, const std::string_view &label, util::AnnotationMap &annotationMap)
static void	AnnotateNumMemoryStateInputsOutputs (const rvsdg::Graph &rvsdg, util::AnnotationMap &annotationMap)
static bool	IsMemoryStateInput (const rvsdg::Input *input) noexcept
static bool	IsMemoryStateOutput (const rvsdg::Output *output) noexcept

Private Attributes
Configuration	Configuration_

Detailed Description

RVSDG tree printer debug pass.

Prints an RVSDG tree to a file.

Definition at line 33 of file RvsdgTreePrinter.hpp.

Constructor & Destructor Documentation

~RvsdgTreePrinter()

jlm::llvm::RvsdgTreePrinter::~RvsdgTreePrinter ( )

overridedefaultnoexcept

RvsdgTreePrinter() [1/3]

jlm::llvm::RvsdgTreePrinter::RvsdgTreePrinter ( Configuration  configuration )

inlineexplicit

Definition at line 102 of file RvsdgTreePrinter.hpp.

RvsdgTreePrinter() [2/3]

jlm::llvm::RvsdgTreePrinter::RvsdgTreePrinter ( const RvsdgTreePrinter &  )

delete

RvsdgTreePrinter() [3/3]

jlm::llvm::RvsdgTreePrinter::RvsdgTreePrinter ( RvsdgTreePrinter &&  )

delete

Member Function Documentation

AnnotateNumMemoryStateInputsOutputs()

void jlm::llvm::RvsdgTreePrinter::AnnotateNumMemoryStateInputsOutputs ( const rvsdg::Graph &  rvsdg, util::AnnotationMap &  annotationMap  )

staticprivate

Adds an annotation to annotationMap that indicates the number of inputs/outputs of type MemoryStateType.

Parameters

rvsdg	The RVSDG for which to compute the annotation.
annotationMap	The annotation map in which the annotation is inserted.

See also

NumMemoryStateInputsOutputs

Definition at line 168 of file RvsdgTreePrinter.cpp.

AnnotateNumNodes()

void jlm::llvm::RvsdgTreePrinter::AnnotateNumNodes ( const rvsdg::Graph &  rvsdg, const std::function< bool(const rvsdg::Node &)> &  match, const std::string_view &  label, util::AnnotationMap &  annotationMap  )

staticprivate

Adds an annotation to annotationMap that indicates the number of RVSDG nodes for regions and structural nodes.

Parameters

rvsdg	The RVSDG for which to compute the annotation.
match	Returns true if a node should be counted, otherwise false.
label	The label used for annotating the region tree.
annotationMap	The annotation map in which the annotation is inserted.

See also

NumRvsdgNodes

Definition at line 128 of file RvsdgTreePrinter.cpp.

ComputeAnnotationMap()

util::AnnotationMap jlm::llvm::RvsdgTreePrinter::ComputeAnnotationMap ( const rvsdg::Graph &  rvsdg ) const

private

Computes a map with annotations based on the required jlm::util::Annotations in the Configuration for the individual regions and structural nodes of the region tree.

Parameters

rvsdg

The RVSDG for which to compute the annotations.

Returns

An instance of AnnotationMap.

Definition at line 71 of file RvsdgTreePrinter.cpp.

IsMemoryStateInput()

bool jlm::llvm::RvsdgTreePrinter::IsMemoryStateInput ( const rvsdg::Input *  input )

staticprivatenoexcept

Definition at line 236 of file RvsdgTreePrinter.cpp.

IsMemoryStateOutput()

bool jlm::llvm::RvsdgTreePrinter::IsMemoryStateOutput ( const rvsdg::Output *  output )

staticprivatenoexcept

Definition at line 242 of file RvsdgTreePrinter.cpp.

operator=() [1/2]

RvsdgTreePrinter& jlm::llvm::RvsdgTreePrinter::operator= ( const RvsdgTreePrinter &  )

delete

operator=() [2/2]

RvsdgTreePrinter& jlm::llvm::RvsdgTreePrinter::operator= ( RvsdgTreePrinter &&  )

delete

Run()

void jlm::llvm::RvsdgTreePrinter::Run ( rvsdg::RvsdgModule &  module, util::StatisticsCollector &  statisticsCollector  )

overridevirtual

Perform RVSDG transformation.

Note

This method is expected to be called multiple times. An implementation is required to reset the objects' internal state to ensure correct behavior after every invocation.

Parameters

module	RVSDG module the transformation is performed on.
statisticsCollector	Statistics collector for collecting transformation statistics.

Implements jlm::rvsdg::Transformation.

Definition at line 51 of file RvsdgTreePrinter.cpp.

Member Data Documentation

Configuration_

Configuration jlm::llvm::RvsdgTreePrinter::Configuration_

private

Definition at line 169 of file RvsdgTreePrinter.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/opt/RvsdgTreePrinter.hpp
• jlm/llvm/opt/RvsdgTreePrinter.cpp
