#include <GraphWriter.hpp>

Inheritance diagram for jlm::util::graph::InOutNode:

[legend]

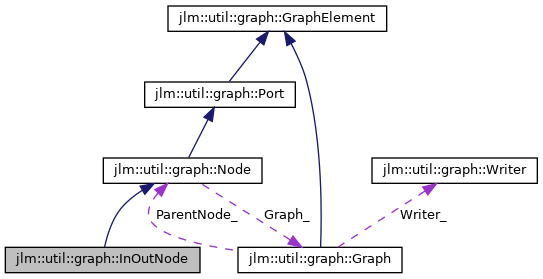

Collaboration diagram for jlm::util::graph::InOutNode:

[legend]

Public Member Functions
	~InOutNode () override=default

void	SetShape (std::string) override

InputPort &	CreateInputPort ()

size_t	NumInputPorts () const

InputPort &	GetInputPort (size_t index)

OutputPort &	CreateOutputPort ()

size_t	NumOutputPorts () const

OutputPort &	GetOutputPort (size_t index)

Graph &	CreateSubgraph ()

size_t	NumSubgraphs () const

Graph &	GetSubgraph (size_t index)

void	SetHtmlTableAttribute (std::string name, std::string value)

void	SetFillColor (std::string color) override

void	Finalize () override

void	OutputSubgraphs (std::ostream &out, OutputFormat format, size_t indent) const override

void	OutputASCII (std::ostream &out, size_t indent) const override

void	OutputDot (std::ostream &out, size_t indent) const override

void	outputJson (std::ostream &out, size_t indent) const override

Public Member Functions inherited from jlm::util::graph::Node
	~Node () override=default

const char *	GetIdPrefix () const override

Node &	GetNode () override

Graph &	GetGraph () override

void	OutputDotPortId (std::ostream &out) const override

Public Member Functions inherited from jlm::util::graph::Port
	~Port () override=default

virtual bool	CanBeEdgeHead () const

virtual bool	CanBeEdgeTail () const

const std::vector< Edge * > &	GetConnections () const

bool	HasOutgoingEdges () const

bool	HasIncomingEdges () const

void	OutputIncomingEdgesASCII (std::ostream &out) const

Public Member Functions inherited from jlm::util::graph::GraphElement
virtual	~GraphElement ()=default

	GraphElement ()

	GraphElement (const GraphElement &other)=delete

	GraphElement (GraphElement &&other)=delete

GraphElement &	operator= (const GraphElement &other)=delete

GraphElement &	operator= (GraphElement &&other)=delete

void	PrintFullId (std::ostream &out) const

std::string	GetFullId () const

const Graph &	GetGraph () const

void	SetLabel (std::string label)

void	AppendToLabel (std::string_view text, std::string_view sep="\n")

bool	HasLabel () const

const std::string &	GetLabel () const

std::string_view	GetLabelOr (std::string_view otherwise) const

size_t	GetUniqueIdSuffix () const

template<typename T >
void	SetProgramObject (const T &object)

void	RemoveProgramObject ()

bool	HasProgramObject () const noexcept

uintptr_t	GetProgramObject () const noexcept

void	SetAttribute (const std::string &attribute, std::string value)

void	SetAttributeObject (const std::string &attribute, uintptr_t object)

template<typename T >
void	SetAttributeObject (const std::string &attribute, const T &object)

void	SetAttributeGraphElement (const std::string &attribute, const GraphElement &element)

bool	HasAttribute (const std::string &attribute) const

std::optional< std::string_view >	GetAttributeString (const std::string &attribute) const

std::optional< uintptr_t >	GetAttributeObject (const std::string &attribute) const

const GraphElement *	GetAttributeGraphElement (const std::string &attribute) const

bool	RemoveAttribute (const std::string &attribute)

bool	IsFinalized () const

void	OutputAttributes (std::ostream &out, AttributeOutputFormat format) const

void	outputJsonObjectOpening (std::ostream &out, size_t indent, bool &firstField) const

Private Member Functions
	InOutNode (Graph &graph, size_t inputPorts, size_t outputPorts)

Private Attributes
friend	Graph

std::unordered_map< std::string, std::string >	HtmlTableAttributes_

std::vector< std::unique_ptr< InputPort > >	InputPorts_

std::vector< std::unique_ptr< OutputPort > >	OutputPorts_

std::vector< Graph * >	SubGraphs_

Additional Inherited Members
Protected Member Functions inherited from jlm::util::graph::Node
	Node (Graph &graph)

Protected Member Functions inherited from jlm::util::graph::Port
	Port ()

Detailed Description

Class representing a node where data flows into a set of input ports, and results flow out of a set of output ports. For complex operations, the node can also contain one or more sub-graphs.

Definition at line 558 of file GraphWriter.hpp.

Constructor & Destructor Documentation

◆ InOutNode()

jlm::util::graph::InOutNode::InOutNode	(	Graph &	graph,
		size_t	inputPorts,
		size_t	outputPorts
	)

private

Definition at line 839 of file GraphWriter.cpp.

◆ ~InOutNode()

jlm::util::graph::InOutNode::~InOutNode ( )

overridedefault

Member Function Documentation

◆ CreateInputPort()

InputPort & jlm::util::graph::InOutNode::CreateInputPort ( )

Definition at line 856 of file GraphWriter.cpp.

◆ CreateOutputPort()

OutputPort & jlm::util::graph::InOutNode::CreateOutputPort ( )

Definition at line 877 of file GraphWriter.cpp.

◆ CreateSubgraph()

Graph & jlm::util::graph::InOutNode::CreateSubgraph ( )

Creates a new subgraph and

Returns: a reference to the newly created subgraph

Definition at line 898 of file GraphWriter.cpp.

◆ Finalize()

void jlm::util::graph::InOutNode::Finalize ( )

overridevirtual

Claims a unique id suffix for the element, if it doesn't already have one.

Reimplemented from jlm::util::graph::GraphElement.

Definition at line 931 of file GraphWriter.cpp.

◆ GetInputPort()

InputPort & jlm::util::graph::InOutNode::GetInputPort ( size_t index )

Definition at line 870 of file GraphWriter.cpp.

◆ GetOutputPort()

OutputPort & jlm::util::graph::InOutNode::GetOutputPort ( size_t index )

Definition at line 891 of file GraphWriter.cpp.

◆ GetSubgraph()

Graph & jlm::util::graph::InOutNode::GetSubgraph ( size_t index )

Returns: the subgraph with the given index, which must be lower than NumSubgraphs()

Definition at line 912 of file GraphWriter.cpp.

◆ NumInputPorts()

size_t jlm::util::graph::InOutNode::NumInputPorts ( ) const

Definition at line 864 of file GraphWriter.cpp.

◆ NumOutputPorts()

size_t jlm::util::graph::InOutNode::NumOutputPorts ( ) const

Definition at line 885 of file GraphWriter.cpp.

◆ NumSubgraphs()

size_t jlm::util::graph::InOutNode::NumSubgraphs ( ) const

Returns: the number of subgraphs in this node

Definition at line 906 of file GraphWriter.cpp.

◆ OutputASCII()

void jlm::util::graph::InOutNode::OutputASCII	(	std::ostream &	out,
		size_t	indent
	)		const

overridevirtual

Outputs the node in ASCII format to the ostream out, indented by indent levels. In this format, attributes are ignored, and edges are only included implicitly, by listing the origins of all edges pointing into this node.

Reimplemented from jlm::util::graph::Node.

Definition at line 954 of file GraphWriter.cpp.

◆ OutputDot()

void jlm::util::graph::InOutNode::OutputDot	(	std::ostream &	out,
		size_t	indent
	)		const

overridevirtual

Outputs the node in Dot format to the ostream out, indented by indent levels. This format includes all attributes.

Reimplemented from jlm::util::graph::Node.

Definition at line 995 of file GraphWriter.cpp.

◆ outputJson()

void jlm::util::graph::InOutNode::outputJson	(	std::ostream &	out,
		size_t	indent
	)		const

overridevirtual

Outputs the node in JSON format to the ostream out, indented by indent levels. This format includes all attributes.

Reimplemented from jlm::util::graph::Node.

Definition at line 1098 of file GraphWriter.cpp.

◆ OutputSubgraphs()

void jlm::util::graph::InOutNode::OutputSubgraphs	(	std::ostream &	out,
		OutputFormat	format,
		size_t	indent
	)		const

overridevirtual

Prints all sub graphs of the node, to the given ostream out, in the given format. All lines printed by this function are indented by at least indent levels. This function is recursive, as sub graphs may have nodes with sub graphs of their own.

Reimplemented from jlm::util::graph::Node.

Definition at line 944 of file GraphWriter.cpp.

◆ SetFillColor()

void jlm::util::graph::InOutNode::SetFillColor ( std::string color )

overridevirtual

Helper function for setting the background color of the Port using the correct dot attributes.

Parameters

color an X11 color name or an RGB value in hex, prefixed by '#'

See also: jlm::util::Colors namespace for a list of common colors.

Reimplemented from jlm::util::graph::Node.

Definition at line 925 of file GraphWriter.cpp.

◆ SetHtmlTableAttribute()

void jlm::util::graph::InOutNode::SetHtmlTableAttribute	(	std::string	name,
		std::string	value
	)

Set attributes on the HTML-like table used to render the node in dot. See the GraphViz manual's list of table attributes: https://graphviz.org/doc/info/shapes.html#table

Parameters

name	the name of the attribute
value	the value the attribute should take

See also: SetAttribute for setting attributes on the node itself

Definition at line 919 of file GraphWriter.cpp.

◆ SetShape()

void jlm::util::graph::InOutNode::SetShape ( std::string )

overridevirtual

InOutNodes use HTML tables when rendering, so setting the shape is disabled

Reimplemented from jlm::util::graph::Node.

Definition at line 850 of file GraphWriter.cpp.

Member Data Documentation

◆ Graph

friend jlm::util::graph::InOutNode::Graph

private

Definition at line 560 of file GraphWriter.hpp.

◆ HtmlTableAttributes_

std::unordered_map<std::string, std::string> jlm::util::graph::InOutNode::HtmlTableAttributes_

private

Definition at line 640 of file GraphWriter.hpp.

◆ InputPorts_

std::vector<std::unique_ptr<InputPort> > jlm::util::graph::InOutNode::InputPorts_

private

Definition at line 642 of file GraphWriter.hpp.

◆ OutputPorts_

std::vector<std::unique_ptr<OutputPort> > jlm::util::graph::InOutNode::OutputPorts_

private

Definition at line 643 of file GraphWriter.hpp.

◆ SubGraphs_

std::vector<Graph *> jlm::util::graph::InOutNode::SubGraphs_

private

Definition at line 644 of file GraphWriter.hpp.

The documentation for this class was generated from the following files:

jlm/util/GraphWriter.hpp
jlm/util/GraphWriter.cpp
