#include <GraphWriter.hpp>

Inheritance diagram for jlm::util::graph::Graph:

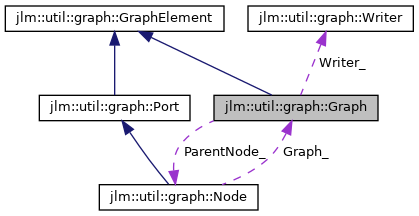

Collaboration diagram for jlm::util::graph::Graph:

[legend]

Public Member Functions
	~Graph () override=default

const char *	GetIdPrefix () const override

Graph &	GetGraph () override

Writer &	GetWriter ()

const Writer &	GetWriter () const

bool	IsSubgraph () const

Node &	CreateNode ()

InOutNode &	CreateInOutNode (size_t inputPorts, size_t outputPorts)

size_t	NumNodes () const noexcept

Node &	GetNode (size_t index)

ArgumentNode &	CreateArgumentNode ()

size_t	NumArgumentNodes () const noexcept

Node &	GetArgumentNode (size_t index)

ResultNode &	CreateResultNode ()

size_t	NumResultNodes () const noexcept

Node &	GetResultNode (size_t index)

Edge &	CreateEdge (Port &from, Port &to, bool directed)

Edge &	CreateDirectedEdge (Port &from, Port &to)

Edge &	CreateUndirectedEdge (Port &a, Port &b)

size_t	NumEdges () const noexcept

Edge &	GetEdge (size_t index)

Edge *	GetEdgeBetween (Port &a, Port &b)

GraphElement *	GetElementFromProgramObject (uintptr_t object) const

template<typename T >
GraphElement *	GetElementFromProgramObject (const T &object) const

template<typename Element , typename ProgramObject >
Element &	GetFromProgramObject (const ProgramObject &object) const

void	Finalize () override

void	Output (std::ostream &out, OutputFormat format, size_t indent) const

Public Member Functions inherited from jlm::util::graph::GraphElement
virtual	~GraphElement ()=default

	GraphElement ()

	GraphElement (const GraphElement &other)=delete

	GraphElement (GraphElement &&other)=delete

GraphElement &	operator= (const GraphElement &other)=delete

GraphElement &	operator= (GraphElement &&other)=delete

void	PrintFullId (std::ostream &out) const

std::string	GetFullId () const

const Graph &	GetGraph () const

void	SetLabel (std::string label)

void	AppendToLabel (std::string_view text, std::string_view sep="\n")

bool	HasLabel () const

const std::string &	GetLabel () const

std::string_view	GetLabelOr (std::string_view otherwise) const

size_t	GetUniqueIdSuffix () const

template<typename T >
void	SetProgramObject (const T &object)

void	RemoveProgramObject ()

bool	HasProgramObject () const noexcept

uintptr_t	GetProgramObject () const noexcept

void	SetAttribute (const std::string &attribute, std::string value)

void	SetAttributeObject (const std::string &attribute, uintptr_t object)

template<typename T >
void	SetAttributeObject (const std::string &attribute, const T &object)

void	SetAttributeGraphElement (const std::string &attribute, const GraphElement &element)

bool	HasAttribute (const std::string &attribute) const

std::optional< std::string_view >	GetAttributeString (const std::string &attribute) const

std::optional< uintptr_t >	GetAttributeObject (const std::string &attribute) const

const GraphElement *	GetAttributeGraphElement (const std::string &attribute) const

bool	RemoveAttribute (const std::string &attribute)

bool	IsFinalized () const

void	OutputAttributes (std::ostream &out, AttributeOutputFormat format) const

void	outputJsonObjectOpening (std::ostream &out, size_t indent, bool &firstField) const

Private Member Functions
	Graph (Writer &writer)

	Graph (Writer &writer, Node &parentNode)

void	OutputASCII (std::ostream &out, size_t indent) const

void	OutputDot (std::ostream &out, size_t indent) const

void	outputJson (std::ostream &out, size_t indent) const

void	MapProgramObjectToElement (GraphElement &element)

void	RemoveProgramObjectMapping (GraphElement &element)

Private Attributes
friend	Writer

friend	GraphElement

Writer &	Writer_

Node *	ParentNode_

std::vector< std::unique_ptr< Node > >	Nodes_

std::vector< std::unique_ptr< ArgumentNode > >	ArgumentNodes_

std::vector< std::unique_ptr< ResultNode > >	ResultNodes_

std::vector< std::unique_ptr< Edge > >	Edges_

std::unordered_map< uintptr_t, GraphElement * >	ProgramObjectMapping_

Detailed Description

Definition at line 826 of file GraphWriter.hpp.

Constructor & Destructor Documentation

◆ Graph() [1/2]

jlm::util::graph::Graph::Graph ( Writer & writer )

explicitprivate

Definition at line 1378 of file GraphWriter.cpp.

◆ Graph() [2/2]

jlm::util::graph::Graph::Graph	(	Writer &	writer,
		Node &	parentNode
	)

private

Definition at line 1384 of file GraphWriter.cpp.

◆ ~Graph()

jlm::util::graph::Graph::~Graph ( )

overridedefault

Member Function Documentation

◆ CreateArgumentNode()

ArgumentNode & jlm::util::graph::Graph::CreateArgumentNode ( )

Adds a new argument node to the graph.

Returns: a reference to the new argument node

Definition at line 1450 of file GraphWriter.cpp.

◆ CreateDirectedEdge()

Edge & jlm::util::graph::Graph::CreateDirectedEdge	(	Port &	from,
		Port &	to
	)

inline

Creates a new directed edge from from to to.

Returns: a reference to the newly created edge.

See also: CreateEdge

Definition at line 943 of file GraphWriter.hpp.

◆ CreateEdge()

Edge & jlm::util::graph::Graph::CreateEdge	(	Port &	from,
		Port &	to,
		bool	directed
	)

Creates a new edge between from and to. Both ports must belong to this graph. If the edge is directed, the ports must support being the tail and head of an edge.

Parameters

from	the port the edge goes from.
to	the port the edge goes to.
directed	if true, the edge is a directed edge, otherwise undirected

Returns: a reference to the newly created edge.

Definition at line 1492 of file GraphWriter.cpp.

◆ CreateInOutNode()

InOutNode & jlm::util::graph::Graph::CreateInOutNode	(	size_t	inputPorts,
		size_t	outputPorts
	)

Creates an InOutNode in the graph with the given number of input and output ports.

Parameters

inputPorts	the number of input ports.
outputPorts	the number of output ports.

Returns: a reference to the newly added node.

Definition at line 1429 of file GraphWriter.cpp.

◆ CreateNode()

Node & jlm::util::graph::Graph::CreateNode ( )

Creates a basic Node in the graph. It has a single port: itself.

Returns: a reference to the newly added node.

Definition at line 1421 of file GraphWriter.cpp.

◆ CreateResultNode()

ResultNode & jlm::util::graph::Graph::CreateResultNode ( )

Adds a new result node to the graph.

Returns: a reference to the new result node

Definition at line 1471 of file GraphWriter.cpp.

◆ CreateUndirectedEdge()

Edge & jlm::util::graph::Graph::CreateUndirectedEdge	(	Port &	a,
		Port &	b
	)

inline

Creates a new undirected edge between a and b. The ordering of a and b may affect graph layout.

Returns: a reference to the newly created edge.

See also: CreateEdge

Definition at line 955 of file GraphWriter.hpp.

◆ Finalize()

void jlm::util::graph::Graph::Finalize ( )

overridevirtual

Assigns unique IDs to all graph elements. Finalizing is recursive, visiting all sub graphs.

Reimplemented from jlm::util::graph::GraphElement.

Definition at line 1570 of file GraphWriter.cpp.

◆ GetArgumentNode()

Node & jlm::util::graph::Graph::GetArgumentNode ( size_t index )

Retrieves the argument node with the given index, which must be less than NumArgumentNodes()

Returns: a reference to the argument node

Definition at line 1464 of file GraphWriter.cpp.

◆ GetEdge()

Edge & jlm::util::graph::Graph::GetEdge ( size_t index )

Retrieves the edge with the given index, which must be lower than NumEdges()

Returns: a reference to the edge

Definition at line 1511 of file GraphWriter.cpp.

◆ GetEdgeBetween()

Edge * jlm::util::graph::Graph::GetEdgeBetween	(	Port &	a,
		Port &	b
	)

Retrieves an edge connecting ports a and b. If the edge is directed, it must go from a, to b.

Parameters

a	the first port
b	the second port

Returns: a reference to an edge connecting a and b, or nullptr if no such edge exists.

Definition at line 1518 of file GraphWriter.cpp.

◆ GetElementFromProgramObject() [1/2]

template<typename T >

GraphElement * jlm::util::graph::Graph::GetElementFromProgramObject ( const T & object ) const

inline

Definition at line 993 of file GraphWriter.hpp.

◆ GetElementFromProgramObject() [2/2]

GraphElement * jlm::util::graph::Graph::GetElementFromProgramObject ( uintptr_t object ) const

Retrieves the GraphElement in this graph associated with a given ProgramObject. This function does not look for graph elements inside sub graphs.

Parameters

object the program object that is possibly mapped to a GraphElement in the graph

Returns: the GraphElement mapped to the given object, or nullptr if none exists in this graph.

Definition at line 1531 of file GraphWriter.cpp.

◆ GetFromProgramObject()

template<typename Element , typename ProgramObject >

Element & jlm::util::graph::Graph::GetFromProgramObject ( const ProgramObject & object ) const

inline

Retrieves the GraphElement in this graph associated with the given program object. Requires the program object to be mapped to a GraphElement in this graph, and that the graph element is of type T.

Parameters

object the program object mapped to a GraphElement

Returns: a reference to the T mapped to the given object.

Definition at line 1010 of file GraphWriter.hpp.

◆ GetGraph()

Graph & jlm::util::graph::Graph::GetGraph ( )

overridevirtual

Gets a reference to the graph this GraphElement belongs to

Implements jlm::util::graph::GraphElement.

Definition at line 1397 of file GraphWriter.cpp.

◆ GetIdPrefix()

const char * jlm::util::graph::Graph::GetIdPrefix ( ) const

overridevirtual

Gets a short string that will serve as the base for a unique ID. This base should be a valid C-like identifier.

Returns: a string, such as "node", "i", "o", "graph"

Implements jlm::util::graph::GraphElement.

Definition at line 1391 of file GraphWriter.cpp.

◆ GetNode()

Node & jlm::util::graph::Graph::GetNode ( size_t index )

Retrieves the node with the given index, which must be lower than NumNodes(). Argument nodes and result nodes are not accessed through this function.

Returns: a reference to the node

Definition at line 1443 of file GraphWriter.cpp.

◆ GetResultNode()

Node & jlm::util::graph::Graph::GetResultNode ( size_t index )

Retrieves the result node with the given index, which must be less than NumResultNodes()

Returns: a reference to the result node

Definition at line 1485 of file GraphWriter.cpp.

◆ GetWriter() [1/2]

Writer & jlm::util::graph::Graph::GetWriter ( )

Definition at line 1403 of file GraphWriter.cpp.

◆ GetWriter() [2/2]

const Writer & jlm::util::graph::Graph::GetWriter ( ) const

Definition at line 1409 of file GraphWriter.cpp.

◆ IsSubgraph()

bool jlm::util::graph::Graph::IsSubgraph ( ) const

Returns: true if this graph is a subgraph of another graph, false if it is top-level

Definition at line 1415 of file GraphWriter.cpp.

◆ MapProgramObjectToElement()

void jlm::util::graph::Graph::MapProgramObjectToElement ( GraphElement & element )

private

Creates a mapping from a GraphElement's assigned program object to the GraphElement. The GraphElement must be a direct member of this graph.

Parameters

element the graph element to map

Definition at line 1539 of file GraphWriter.cpp.

◆ NumArgumentNodes()

size_t jlm::util::graph::Graph::NumArgumentNodes ( ) const

noexcept

Returns: the number of argument nodes in the graph

Definition at line 1458 of file GraphWriter.cpp.

◆ NumEdges()

size_t jlm::util::graph::Graph::NumEdges ( ) const

noexcept

Returns: the number of edges in the graph

Definition at line 1505 of file GraphWriter.cpp.

◆ NumNodes()

size_t jlm::util::graph::Graph::NumNodes ( ) const

noexcept

Returns: the number of nodes in the graph, excluding argument and result nodes.

Definition at line 1437 of file GraphWriter.cpp.

◆ NumResultNodes()

size_t jlm::util::graph::Graph::NumResultNodes ( ) const

noexcept

Returns: the number of result nodes in the graph

Definition at line 1479 of file GraphWriter.cpp.

◆ Output()

void jlm::util::graph::Graph::Output	(	std::ostream &	out,
		OutputFormat	format,
		size_t	indent
	)		const

Prints the graph to the given ostream, in the specified format. Requires the graph to be finalized first.

Parameters

out	the stream to which output is written
format	the format to output the graph in
indent	the amount of indentation levels the graph should be printed with

Definition at line 1742 of file GraphWriter.cpp.

◆ OutputASCII()

void jlm::util::graph::Graph::OutputASCII	(	std::ostream &	out,
		size_t	indent
	)		const

private

Definition at line 1586 of file GraphWriter.cpp.

◆ OutputDot()

void jlm::util::graph::Graph::OutputDot	(	std::ostream &	out,
		size_t	indent
	)		const

private

Definition at line 1631 of file GraphWriter.cpp.

◆ outputJson()

void jlm::util::graph::Graph::outputJson	(	std::ostream &	out,
		size_t	indent
	)		const

private

Definition at line 1689 of file GraphWriter.cpp.

◆ RemoveProgramObjectMapping()

void jlm::util::graph::Graph::RemoveProgramObjectMapping ( GraphElement & element )

private

Removes the mapping of a program object to a graph element in the graph.

Parameters

element the element that is currently mapped to a program object, whose mapping should be removed.

Definition at line 1556 of file GraphWriter.cpp.

Member Data Documentation

◆ ArgumentNodes_

std::vector<std::unique_ptr<ArgumentNode> > jlm::util::graph::Graph::ArgumentNodes_

private

Definition at line 1073 of file GraphWriter.hpp.

◆ Edges_

std::vector<std::unique_ptr<Edge> > jlm::util::graph::Graph::Edges_

private

Definition at line 1076 of file GraphWriter.hpp.

◆ GraphElement

friend jlm::util::graph::Graph::GraphElement

private

Definition at line 829 of file GraphWriter.hpp.

◆ Nodes_

std::vector<std::unique_ptr<Node> > jlm::util::graph::Graph::Nodes_

private

Definition at line 1070 of file GraphWriter.hpp.

◆ ParentNode_

Node* jlm::util::graph::Graph::ParentNode_

private

Definition at line 1067 of file GraphWriter.hpp.

◆ ProgramObjectMapping_

std::unordered_map<uintptr_t, GraphElement *> jlm::util::graph::Graph::ProgramObjectMapping_

private

Definition at line 1079 of file GraphWriter.hpp.

◆ ResultNodes_

std::vector<std::unique_ptr<ResultNode> > jlm::util::graph::Graph::ResultNodes_

private

Definition at line 1074 of file GraphWriter.hpp.

◆ Writer

friend jlm::util::graph::Graph::Writer

private

Definition at line 828 of file GraphWriter.hpp.

◆ Writer_

Writer& jlm::util::graph::Graph::Writer_

private

Definition at line 1063 of file GraphWriter.hpp.

The documentation for this class was generated from the following files:

jlm/util/GraphWriter.hpp
jlm/util/GraphWriter.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Graph() [1/2]

◆ Graph() [2/2]

◆ ~Graph()

Member Function Documentation

◆ CreateArgumentNode()

◆ CreateDirectedEdge()

◆ CreateEdge()

◆ CreateInOutNode()

◆ CreateNode()

◆ CreateResultNode()

◆ CreateUndirectedEdge()

◆ Finalize()

◆ GetArgumentNode()

◆ GetEdge()

◆ GetEdgeBetween()

◆ GetElementFromProgramObject() [1/2]

◆ GetElementFromProgramObject() [2/2]

◆ GetFromProgramObject()

◆ GetGraph()

◆ GetIdPrefix()

◆ GetNode()

◆ GetResultNode()

◆ GetWriter() [1/2]

◆ GetWriter() [2/2]

◆ IsSubgraph()

◆ MapProgramObjectToElement()

◆ NumArgumentNodes()

◆ NumEdges()

◆ NumNodes()

◆ NumResultNodes()

◆ Output()

◆ OutputASCII()

◆ OutputDot()

◆ outputJson()

◆ RemoveProgramObjectMapping()

Member Data Documentation

◆ ArgumentNodes_

◆ Edges_

◆ GraphElement

◆ Nodes_

◆ ParentNode_

◆ ProgramObjectMapping_

◆ ResultNodes_

◆ Writer

◆ Writer_
