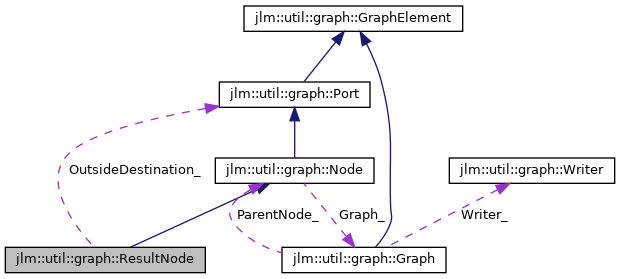

Collaboration diagram for jlm::util::graph::ResultNode:

[legend]

Public Member Functions
	~ResultNode () override=default

const char *	GetIdPrefix () const override

bool	CanBeEdgeTail () const override

void	SetOutsideDestination (const Port &outsideSource)

Public Member Functions inherited from jlm::util::graph::Node
	~Node () override=default

Node &	GetNode () override

Graph &	GetGraph () override

virtual void	SetShape (std::string shape)

void	SetFillColor (std::string color) override

void	OutputDotPortId (std::ostream &out) const override

void	Output (std::ostream &out, OutputFormat format, size_t indent) const

virtual void	OutputSubgraphs (std::ostream &out, OutputFormat format, size_t indent) const

Public Member Functions inherited from jlm::util::graph::Port
	~Port () override=default

virtual bool	CanBeEdgeHead () const

const std::vector< Edge * > &	GetConnections () const

bool	HasOutgoingEdges () const

bool	HasIncomingEdges () const

void	OutputIncomingEdgesASCII (std::ostream &out) const

Public Member Functions inherited from jlm::util::graph::GraphElement
virtual	~GraphElement ()=default

	GraphElement ()

	GraphElement (const GraphElement &other)=delete

	GraphElement (GraphElement &&other)=delete

GraphElement &	operator= (const GraphElement &other)=delete

GraphElement &	operator= (GraphElement &&other)=delete

std::string	GetFullId () const

const Graph &	GetGraph () const

void	SetLabel (std::string label)

void	AppendToLabel (std::string_view text, std::string_view sep="\n")

bool	HasLabel () const

const std::string &	GetLabel () const

std::string_view	GetLabelOr (std::string_view otherwise) const

size_t	GetUniqueIdSuffix () const

template<typename T >
void	SetProgramObject (const T &object)

void	RemoveProgramObject ()

bool	HasProgramObject () const noexcept

uintptr_t	GetProgramObject () const noexcept

void	SetAttribute (const std::string &attribute, std::string value)

void	SetAttributeObject (const std::string &attribute, uintptr_t object)

template<typename T >
void	SetAttributeObject (const std::string &attribute, const T &object)

void	SetAttributeGraphElement (const std::string &attribute, const GraphElement &element)

bool	HasAttribute (const std::string &attribute) const

std::optional< std::string_view >	GetAttributeString (const std::string &attribute) const

std::optional< uintptr_t >	GetAttributeObject (const std::string &attribute) const

const GraphElement *	GetAttributeGraphElement (const std::string &attribute) const

bool	RemoveAttribute (const std::string &attribute)

virtual void	Finalize ()

bool	IsFinalized () const

void	OutputAttributes (std::ostream &out, AttributeOutputFormat format) const

Protected Member Functions
void	OutputASCII (std::ostream &out, size_t indent) const override

Protected Member Functions inherited from jlm::util::graph::Node
	Node (Graph &graph)

virtual void	OutputDot (std::ostream &out, size_t indent) const

Protected Member Functions inherited from jlm::util::graph::Port
	Port ()

Private Member Functions
	ResultNode (Graph &graph)

Private Attributes
friend	Graph

const Port *	OutsideDestination_

Detailed Description

Node representing a port where values leave the graph. All result nodes are rendered in order at the bottom of the graph.

Definition at line 645 of file GraphWriter.hpp.

Constructor & Destructor Documentation

◆ ResultNode()

jlm::util::graph::ResultNode::ResultNode ( Graph & graph )

explicitprivate

Definition at line 953 of file GraphWriter.cpp.

◆ ~ResultNode()

jlm::util::graph::ResultNode::~ResultNode ( )

overridedefault

Member Function Documentation

◆ CanBeEdgeTail()

bool jlm::util::graph::ResultNode::CanBeEdgeTail ( ) const

overridevirtual

Returns: true if a directed edge may have its tail at this port, false otherwise

Reimplemented from jlm::util::graph::Port.

Definition at line 965 of file GraphWriter.cpp.

◆ GetIdPrefix()

const char * jlm::util::graph::ResultNode::GetIdPrefix ( ) const

overridevirtual

Gets a short string that will serve as the base for a unique ID. This base should be a valid C-like identifier.

Returns: a string, such as "node", "i", "o", "graph"

Reimplemented from jlm::util::graph::Node.

Definition at line 959 of file GraphWriter.cpp.

◆ OutputASCII()

void jlm::util::graph::ResultNode::OutputASCII	(	std::ostream &	out,
		size_t	indent
	)		const

overrideprotectedvirtual

Outputs the node in ASCII format to the ostream out, indented by indent levels. In this format, attributes are ignored, and edges are only included implicitly, by listing the origins of all edges pointing into this node.

Reimplemented from jlm::util::graph::Node.

Definition at line 978 of file GraphWriter.cpp.

◆ SetOutsideDestination()

void jlm::util::graph::ResultNode::SetOutsideDestination ( const Port & outsideSource )

Indicate that the result node represents the value of a port in another graph

Parameters

outsideSource the Port in the other graph

Definition at line 971 of file GraphWriter.cpp.

Member Data Documentation

◆ Graph

friend jlm::util::graph::ResultNode::Graph

private

Definition at line 647 of file GraphWriter.hpp.

◆ OutsideDestination_

const Port* jlm::util::graph::ResultNode::OutsideDestination_

private

Definition at line 673 of file GraphWriter.hpp.

The documentation for this class was generated from the following files:

jlm/util/GraphWriter.hpp
jlm/util/GraphWriter.cpp
