#include <GraphWriter.hpp>

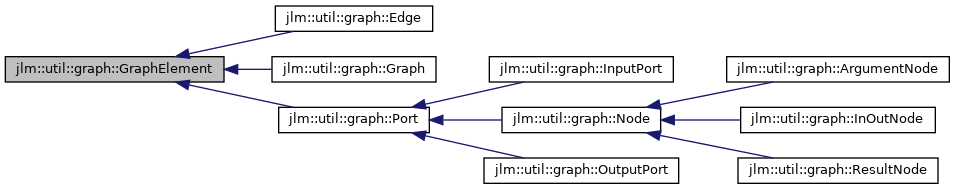

Inheritance diagram for jlm::util::graph::GraphElement:

[legend]

Public Member Functions
virtual	~GraphElement ()=default

	GraphElement ()

	GraphElement (const GraphElement &other)=delete

	GraphElement (GraphElement &&other)=delete

GraphElement &	operator= (const GraphElement &other)=delete

GraphElement &	operator= (GraphElement &&other)=delete

virtual const char *	GetIdPrefix () const =0

void	PrintFullId (std::ostream &out) const

std::string	GetFullId () const

virtual Graph &	GetGraph ()=0

const Graph &	GetGraph () const

void	SetLabel (std::string label)

void	AppendToLabel (std::string_view text, std::string_view sep="\n")

bool	HasLabel () const

const std::string &	GetLabel () const

std::string_view	GetLabelOr (std::string_view otherwise) const

size_t	GetUniqueIdSuffix () const

template<typename T >
void	SetProgramObject (const T &object)

void	RemoveProgramObject ()

bool	HasProgramObject () const noexcept

uintptr_t	GetProgramObject () const noexcept

void	SetAttribute (const std::string &attribute, std::string value)

void	SetAttributeObject (const std::string &attribute, uintptr_t object)

template<typename T >
void	SetAttributeObject (const std::string &attribute, const T &object)

void	SetAttributeGraphElement (const std::string &attribute, const GraphElement &element)

bool	HasAttribute (const std::string &attribute) const

std::optional< std::string_view >	GetAttributeString (const std::string &attribute) const

std::optional< uintptr_t >	GetAttributeObject (const std::string &attribute) const

const GraphElement *	GetAttributeGraphElement (const std::string &attribute) const

bool	RemoveAttribute (const std::string &attribute)

virtual void	Finalize ()

bool	IsFinalized () const

void	OutputAttributes (std::ostream &out, AttributeOutputFormat format) const

void	outputJsonObjectOpening (std::ostream &out, size_t indent, bool &firstField) const

Private Types
using	AttributeValue = std::variant< std::string, const GraphElement *, uintptr_t >

Private Member Functions
void	SetProgramObjectUintptr (uintptr_t object)

void	OutputAttribute (std::ostream &out, const std::string &name, AttributeOutputFormat format) const

Private Attributes
std::string	Label_

std::optional< size_t >	UniqueIdSuffix_

uintptr_t	ProgramObject_

std::unordered_map< std::string, AttributeValue >	AttributeMap_

Detailed Description

Definition at line 41 of file GraphWriter.hpp.

Member Typedef Documentation

◆ AttributeValue

using jlm::util::graph::GraphElement::AttributeValue = std::variant<std::string, const GraphElement *, uintptr_t>

private

Definition at line 287 of file GraphWriter.hpp.

Constructor & Destructor Documentation

◆ ~GraphElement()

virtual jlm::util::graph::GraphElement::~GraphElement ( )

virtualdefault

◆ GraphElement() [1/3]

jlm::util::graph::GraphElement::GraphElement ( )

Constructs a graph element with no label, attributes or associated program object

Definition at line 191 of file GraphWriter.cpp.

◆ GraphElement() [2/3]

jlm::util::graph::GraphElement::GraphElement ( const GraphElement & other )

delete

◆ GraphElement() [3/3]

jlm::util::graph::GraphElement::GraphElement ( GraphElement && other )

delete

Member Function Documentation

◆ AppendToLabel()

void jlm::util::graph::GraphElement::AppendToLabel	(	std::string_view	text,
		std::string_view	sep = `"\n"`
	)

Appends the given text to the element's label. If the current label is non-empty, the separator string sep is inserted between them.

Definition at line 226 of file GraphWriter.cpp.

◆ Finalize()

void jlm::util::graph::GraphElement::Finalize ( )

virtual

Claims a unique id suffix for the element, if it doesn't already have one.

Reimplemented in jlm::util::graph::Graph, and jlm::util::graph::InOutNode.

Definition at line 380 of file GraphWriter.cpp.

◆ GetAttributeGraphElement()

const GraphElement * jlm::util::graph::GraphElement::GetAttributeGraphElement ( const std::string & attribute ) const

Retrieves the value of the given attribute, if it is assigned a graph element. Otherwise, if the attribute is assigned a program object, and there exists a GraphElement representing that program object, that is returned.

Returns: pointer to the GraphElement held in the attribute, or nullptr if it does not exist.

Definition at line 347 of file GraphWriter.cpp.

◆ GetAttributeObject()

std::optional< uintptr_t > jlm::util::graph::GraphElement::GetAttributeObject ( const std::string & attribute ) const

Retrieves the value of the given attribute, if it is assigned a program object. If the attribute does not exist, or is not holding a program object, std::nullopt is returned.

Returns: the object assigned to the attribute, or std::nullopt if it does not exist.

Definition at line 334 of file GraphWriter.cpp.

◆ GetAttributeString()

std::optional< std::string_view > jlm::util::graph::GraphElement::GetAttributeString ( const std::string & attribute ) const

Retrieves the value of the given attribute, if it exists and is assigned a string.

Returns: the attribute's string value, or std::nullopt if it does not exist.

Definition at line 321 of file GraphWriter.cpp.

◆ GetFullId()

std::string jlm::util::graph::GraphElement::GetFullId ( ) const

Gives the final unique ID of the GraphElement, such as "node3". Requires the GraphElement to be finalized.

Returns: the full id of the GraphElement, including unique suffix

See also: PrintFullId

Definition at line 206 of file GraphWriter.cpp.

◆ GetGraph() [1/2]

const Graph & jlm::util::graph::GraphElement::GetGraph ( ) const

Definition at line 214 of file GraphWriter.cpp.

◆ GetGraph() [2/2]

virtual Graph& jlm::util::graph::GraphElement::GetGraph ( )

pure virtual

Gets a reference to the graph this GraphElement belongs to

Implemented in jlm::util::graph::Graph, jlm::util::graph::Edge, jlm::util::graph::Node, and jlm::util::graph::Port.

◆ GetIdPrefix()

virtual const char* jlm::util::graph::GraphElement::GetIdPrefix ( ) const

pure virtual

Gets a short string that will serve as the base for a unique ID. This base should be a valid C-like identifier.

Returns: a string, such as "node", "i", "o", "graph"

Implemented in jlm::util::graph::Graph, jlm::util::graph::Edge, jlm::util::graph::ResultNode, jlm::util::graph::ArgumentNode, jlm::util::graph::OutputPort, jlm::util::graph::InputPort, and jlm::util::graph::Node.

◆ GetLabel()

const std::string & jlm::util::graph::GraphElement::GetLabel ( ) const

Returns: the GraphElement's label

Definition at line 245 of file GraphWriter.cpp.

◆ GetLabelOr()

std::string_view jlm::util::graph::GraphElement::GetLabelOr ( std::string_view otherwise ) const

Returns: the graph element's label, or if it is empty, the string otherwise

Definition at line 251 of file GraphWriter.cpp.

◆ GetProgramObject()

uintptr_t jlm::util::graph::GraphElement::GetProgramObject ( ) const

noexcept

Returns: the program object associated with this graph element.

Definition at line 289 of file GraphWriter.cpp.

◆ GetUniqueIdSuffix()

size_t jlm::util::graph::GraphElement::GetUniqueIdSuffix ( ) const

Returns: the unique suffix assigned to this element when finalized.

See also: IsFinalized() must return true before calling

Definition at line 259 of file GraphWriter.cpp.

◆ HasAttribute()

bool jlm::util::graph::GraphElement::HasAttribute ( const std::string & attribute ) const

Returns: true if an attribute with the given name attribute is defined

Definition at line 315 of file GraphWriter.cpp.

◆ HasLabel()

bool jlm::util::graph::GraphElement::HasLabel ( ) const

Returns: true if this graph element has a non-empty label

Definition at line 239 of file GraphWriter.cpp.

◆ HasProgramObject()

bool jlm::util::graph::GraphElement::HasProgramObject ( ) const

noexcept

Returns: true, if this GraphElement is associated with any program object

Definition at line 283 of file GraphWriter.cpp.

◆ IsFinalized()

bool jlm::util::graph::GraphElement::IsFinalized ( ) const

Returns: true if this GraphElement has been finalized, otherwise false.

Definition at line 390 of file GraphWriter.cpp.

◆ operator=() [1/2]

GraphElement& jlm::util::graph::GraphElement::operator= ( const GraphElement & other )

delete

◆ operator=() [2/2]

GraphElement& jlm::util::graph::GraphElement::operator= ( GraphElement && other )

delete

◆ OutputAttribute()

void jlm::util::graph::GraphElement::OutputAttribute	(	std::ostream &	out,
		const std::string &	name,
		AttributeOutputFormat	format
	)		const

private

Definition at line 432 of file GraphWriter.cpp.

◆ OutputAttributes()

void jlm::util::graph::GraphElement::OutputAttributes	(	std::ostream &	out,
		AttributeOutputFormat	format
	)		const

Prints the attributes of the graph element.

Parameters

out	the stream output is written to.
format	the output format to use.

Definition at line 456 of file GraphWriter.cpp.

◆ outputJsonObjectOpening()

void jlm::util::graph::GraphElement::outputJsonObjectOpening	(	std::ostream &	out,
		size_t	indent,
		bool &	firstField
	)		const

Outputs the id and common fields of the graph element. For example, for a graph element with id node0:

"node0": { "label": "Its Label", "object": "0x7fff5623", "attr": {"key": "value", "key2": "value2"}

The output ends without a comma or newline. Use the resulting firstField boolean when adding additional fields.

Parameters

out	the output stream to write to
indent	the level of indentation for the key
firstField	set to true if the object is still waiting for its first field

Definition at line 533 of file GraphWriter.cpp.

◆ PrintFullId()

void jlm::util::graph::GraphElement::PrintFullId ( std::ostream & out ) const

Prints the final unique ID of the GraphElement, such as "node3". Requires the GraphElement to be finalized.

Parameters

out	the output stream to print to.

Definition at line 199 of file GraphWriter.cpp.

◆ RemoveAttribute()

bool jlm::util::graph::GraphElement::RemoveAttribute ( const std::string & attribute )

Removes the attribute with the given name attribute, if it exists.

Returns: true if the attribute existed, and was removed, false otherwise

Definition at line 374 of file GraphWriter.cpp.

◆ RemoveProgramObject()

void jlm::util::graph::GraphElement::RemoveProgramObject ( )

Removes the association of this GraphElement to any object in the program

Definition at line 277 of file GraphWriter.cpp.

◆ SetAttribute()

void jlm::util::graph::GraphElement::SetAttribute	(	const std::string &	attribute,
		std::string	value
	)

Assigns or overrides a given attribute on the element.

Parameters

attribute	the name of the attribute
value	the attribute value

Definition at line 295 of file GraphWriter.cpp.

◆ SetAttributeGraphElement()

void jlm::util::graph::GraphElement::SetAttributeGraphElement	(	const std::string &	attribute,
		const GraphElement &	element
	)

Assigns or overrides a given attribute on the element with a reference to a graph element. This allows associations between graph elements to be included in the output, across graphs. The element must be a part of the same GraphWriter instance.

Parameters

attribute	the name of the attribute.
element	the graph element whose id should be used as attribute value.

Definition at line 308 of file GraphWriter.cpp.

◆ SetAttributeObject() [1/2]

template<typename T >

void jlm::util::graph::GraphElement::SetAttributeObject	(	const std::string &	attribute,
		const T &	object
	)

inline

Helper for calling SetAttributeObject with a pointer to any type

Definition at line 193 of file GraphWriter.hpp.

◆ SetAttributeObject() [2/2]

void jlm::util::graph::GraphElement::SetAttributeObject	(	const std::string &	attribute,
		uintptr_t	object
	)

Assigns or overrides a given attribute on the element with the address of a program object. If this program object is associated with a GraphElement in the same GraphWriter, the attribute value becomes the id of the other GraphElement, instead of the address.

Parameters

attribute	the name of the attribute.
object	the address of a program object, must be non-null.

Definition at line 301 of file GraphWriter.cpp.

◆ SetLabel()

void jlm::util::graph::GraphElement::SetLabel ( std::string label )

Sets the element's label. A label is text intended to be visible in all renderings of the graph. Use an empty string to signify no label.

Parameters

label the new label string

Definition at line 220 of file GraphWriter.cpp.

◆ SetProgramObject()

template<typename T >

void jlm::util::graph::GraphElement::SetProgramObject ( const T & object )

inline

Graph elements often represent objects from the program. By making this association explicit, GraphElements can be looked up by program object. When using program objects as attributes, the association is used to refer to the unique id of its associated graph element, instead of the object's address. Within a graph, only one graph element can be associated with any given program object.

Template Parameters

T	the type of the program object to associate with

Parameters

object the object to associate this GraphElement with

Definition at line 147 of file GraphWriter.hpp.

◆ SetProgramObjectUintptr()

void jlm::util::graph::GraphElement::SetProgramObjectUintptr ( uintptr_t object )

private

Definition at line 266 of file GraphWriter.cpp.

Member Data Documentation

◆ AttributeMap_

std::unordered_map<std::string, AttributeValue> jlm::util::graph::GraphElement::AttributeMap_

private

Definition at line 305 of file GraphWriter.hpp.

◆ Label_

std::string jlm::util::graph::GraphElement::Label_

private

Definition at line 296 of file GraphWriter.hpp.

◆ ProgramObject_

uintptr_t jlm::util::graph::GraphElement::ProgramObject_

private

Definition at line 302 of file GraphWriter.hpp.

◆ UniqueIdSuffix_

std::optional<size_t> jlm::util::graph::GraphElement::UniqueIdSuffix_

private

Definition at line 299 of file GraphWriter.hpp.

The documentation for this class was generated from the following files:

jlm/util/GraphWriter.hpp
jlm/util/GraphWriter.cpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AttributeValue

Constructor & Destructor Documentation

◆ ~GraphElement()

◆ GraphElement() [1/3]

◆ GraphElement() [2/3]

◆ GraphElement() [3/3]

Member Function Documentation

◆ AppendToLabel()

◆ Finalize()

◆ GetAttributeGraphElement()

◆ GetAttributeObject()

◆ GetAttributeString()

◆ GetFullId()

◆ GetGraph() [1/2]

◆ GetGraph() [2/2]

◆ GetIdPrefix()

◆ GetLabel()

◆ GetLabelOr()

◆ GetProgramObject()

◆ GetUniqueIdSuffix()

◆ HasAttribute()

◆ HasLabel()

◆ HasProgramObject()

◆ IsFinalized()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ OutputAttribute()

◆ OutputAttributes()

◆ outputJsonObjectOpening()

◆ PrintFullId()

◆ RemoveAttribute()

◆ RemoveProgramObject()

◆ SetAttribute()

◆ SetAttributeGraphElement()

◆ SetAttributeObject() [1/2]

◆ SetAttributeObject() [2/2]

◆ SetLabel()

◆ SetProgramObject()

◆ SetProgramObjectUintptr()

Member Data Documentation

◆ AttributeMap_

◆ Label_

◆ ProgramObject_

◆ UniqueIdSuffix_
