#include <hls.hpp>

Inheritance diagram for jlm::hls::ExitResult:

[legend]

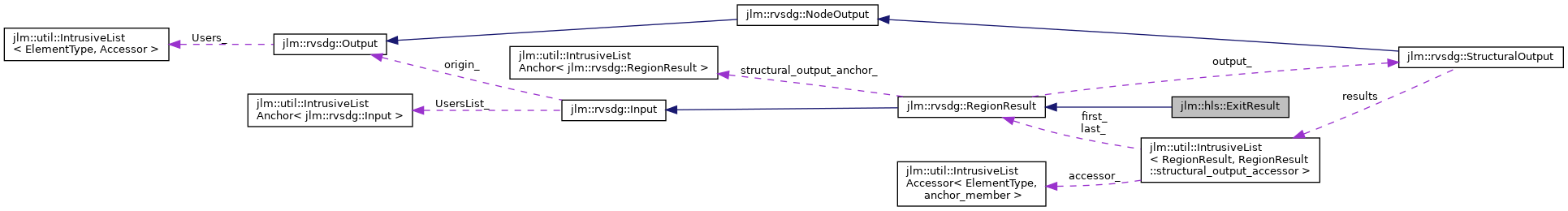

Collaboration diagram for jlm::hls::ExitResult:

[legend]

Public Member Functions
	~ExitResult () noexcept override

ExitResult &	Copy (rvsdg::Output &origin, rvsdg::StructuralOutput *output) const override

Public Member Functions inherited from jlm::rvsdg::RegionResult
	~RegionResult () noexcept override

	RegionResult (rvsdg::Region region, rvsdg::Output origin, StructuralOutput *output, std::shared_ptr< const rvsdg::Type > type)

	RegionResult (const RegionResult &)=delete

	RegionResult (RegionResult &&)=delete

RegionResult &	operator= (const RegionResult &)=delete

RegionResult &	operator= (RegionResult &&)=delete

std::string	debug_string () const override

StructuralOutput *	output () const noexcept

Public Member Functions inherited from jlm::rvsdg::Input
virtual	~Input () noexcept

	Input (const Input &)=delete

	Input (Input &&)=delete

Input &	operator= (const Input &)=delete

Input &	operator= (Input &&)=delete

size_t	index () const noexcept

Output *	origin () const noexcept

void	divert_to (Output *new_origin)

const std::shared_ptr< const rvsdg::Type > &	Type () const noexcept

Region *	region () const noexcept

std::variant< Node , Region >	GetOwner () const noexcept

Static Public Member Functions
static ExitResult &	Create (rvsdg::Output &origin, rvsdg::StructuralOutput &output)

Static Public Member Functions inherited from jlm::rvsdg::RegionResult
static RegionResult &	Create (rvsdg::Region &region, rvsdg::Output &origin, StructuralOutput *output, std::shared_ptr< const rvsdg::Type > type)
	Create region exit result.

Private Member Functions
	ExitResult (rvsdg::Output &origin, rvsdg::StructuralOutput &output)

Private Attributes
friend	LoopNode

Additional Inherited Members
Public Types inherited from jlm::rvsdg::RegionResult
typedef util::IntrusiveListAccessor< RegionResult, &RegionResult::structural_output_anchor_ >	structural_output_accessor

Protected Member Functions inherited from jlm::rvsdg::Input
	Input (Node &owner, Output &origin, std::shared_ptr< const rvsdg::Type > type)

	Input (Region &owner, Output &origin, std::shared_ptr< const rvsdg::Type > type)

Detailed Description

Represents the exit result of the HLS loop.

Definition at line 685 of file hls.hpp.

Constructor & Destructor Documentation

◆ ExitResult()

jlm::hls::ExitResult::ExitResult	(	rvsdg::Output &	origin,
		rvsdg::StructuralOutput &	output
	)

private

Definition at line 121 of file hls.cpp.

◆ ~ExitResult()

jlm::hls::ExitResult::~ExitResult ( )

overridedefaultnoexcept

Member Function Documentation

◆ Copy()

ExitResult & jlm::hls::ExitResult::Copy	(	rvsdg::Output &	origin,
		rvsdg::StructuralOutput *	output
	)		const

overridevirtual

Creates a copy of the result with origin and structural_output output. The result is created with the same type as origin and in the same region as origin.

Parameters

origin	The origin for the result.
output	The structural_output to the result, if any.

Returns: A reference to the copied result.

Reimplemented from jlm::rvsdg::RegionResult.

Definition at line 128 of file hls.cpp.

◆ Create()

static ExitResult & jlm::hls::ExitResult::Create	(	rvsdg::Output &	origin,
		rvsdg::StructuralOutput &	output
	)

inlinestatic

Definition at line 700 of file hls.hpp.

Member Data Documentation

◆ LoopNode

friend jlm::hls::ExitResult::LoopNode

private

Definition at line 687 of file hls.hpp.

The documentation for this class was generated from the following files:

jlm/hls/ir/hls.hpp
jlm/hls/ir/hls.cpp
