jlm::llvm::EscapingLocalFunctionTest Class Reference

RVSDG module with a static function escaping through another function. More...

#include <TestRvsdgs.hpp>

Inheritance diagram for jlm::llvm::EscapingLocalFunctionTest:

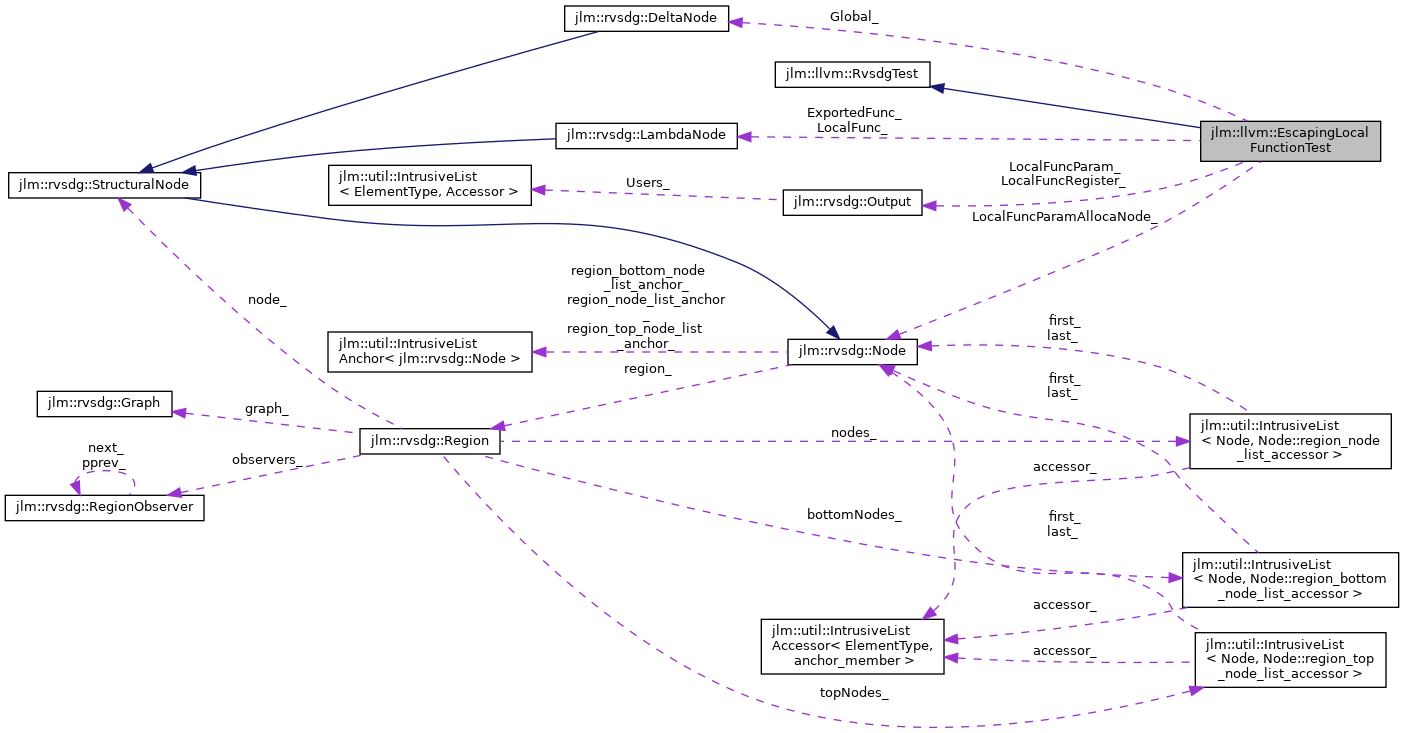

Collaboration diagram for jlm::llvm::EscapingLocalFunctionTest:

Public Member Functions
const jlm::rvsdg::DeltaNode &	GetGlobal () const noexcept
const jlm::rvsdg::LambdaNode &	GetLocalFunction () const noexcept
const jlm::rvsdg::Output &	GetLocalFunctionRegister () const noexcept
const jlm::rvsdg::Output &	GetLocalFunctionParam () const noexcept
const rvsdg::Node &	GetLocalFunctionParamAllocaNode () const noexcept
const jlm::rvsdg::LambdaNode &	GetExportedFunction () const noexcept
Public Member Functions inherited from jlm::llvm::RvsdgTest
virtual	~RvsdgTest ()=default
jlm::llvm::LlvmRvsdgModule &	module ()
const rvsdg::Graph &	graph ()
void	InitializeTest ()

Private Member Functions
std::unique_ptr< jlm::llvm::LlvmRvsdgModule >	SetupRvsdg () override
	Create RVSDG for this test. More...

Private Attributes
jlm::rvsdg::DeltaNode *	Global_ = {}
jlm::rvsdg::LambdaNode *	LocalFunc_ = {}
jlm::rvsdg::Output *	LocalFuncParam_ = {}
jlm::rvsdg::Output *	LocalFuncRegister_ = {}
rvsdg::Node *	LocalFuncParamAllocaNode_ = {}
jlm::rvsdg::LambdaNode *	ExportedFunc_ = {}

Detailed Description

RVSDG module with a static function escaping through another function.

The class sets up an RVSDG module corresponding to the code:

static uint32_t global;

static uint32_t* localFunc(uint32_t* param)
{
  return &global;
}

typedef uint32_t* localFuncSignature(uint32_t*);

localFuncSignature* exportedFunc()
{
  return localFunc;
}

It provides getters for the alloca nodes themselves, and for their outputs.

Definition at line 2274 of file TestRvsdgs.hpp.

Member Function Documentation

GetExportedFunction()

const jlm::rvsdg::LambdaNode& jlm::llvm::EscapingLocalFunctionTest::GetExportedFunction ( ) const

inlinenoexcept

Definition at line 2313 of file TestRvsdgs.hpp.

GetGlobal()

const jlm::rvsdg::DeltaNode& jlm::llvm::EscapingLocalFunctionTest::GetGlobal ( ) const

inlinenoexcept

Definition at line 2278 of file TestRvsdgs.hpp.

GetLocalFunction()

const jlm::rvsdg::LambdaNode& jlm::llvm::EscapingLocalFunctionTest::GetLocalFunction ( ) const

inlinenoexcept

Definition at line 2285 of file TestRvsdgs.hpp.

GetLocalFunctionParam()

const jlm::rvsdg::Output& jlm::llvm::EscapingLocalFunctionTest::GetLocalFunctionParam ( ) const

inlinenoexcept

Definition at line 2299 of file TestRvsdgs.hpp.

GetLocalFunctionParamAllocaNode()

const rvsdg::Node& jlm::llvm::EscapingLocalFunctionTest::GetLocalFunctionParamAllocaNode ( ) const

inlinenoexcept

Definition at line 2306 of file TestRvsdgs.hpp.

GetLocalFunctionRegister()

const jlm::rvsdg::Output& jlm::llvm::EscapingLocalFunctionTest::GetLocalFunctionRegister ( ) const

inlinenoexcept

Definition at line 2292 of file TestRvsdgs.hpp.

SetupRvsdg()

std::unique_ptr< jlm::llvm::LlvmRvsdgModule > jlm::llvm::EscapingLocalFunctionTest::SetupRvsdg ( )

overrideprivatevirtual

Create RVSDG for this test.

Implements jlm::llvm::RvsdgTest.

Definition at line 3729 of file TestRvsdgs.cpp.

Member Data Documentation

ExportedFunc_

jlm::rvsdg::LambdaNode* jlm::llvm::EscapingLocalFunctionTest::ExportedFunc_ = {}

private

Definition at line 2328 of file TestRvsdgs.hpp.

Global_

jlm::rvsdg::DeltaNode* jlm::llvm::EscapingLocalFunctionTest::Global_ = {}

private

Definition at line 2323 of file TestRvsdgs.hpp.

LocalFunc_

jlm::rvsdg::LambdaNode* jlm::llvm::EscapingLocalFunctionTest::LocalFunc_ = {}

private

Definition at line 2324 of file TestRvsdgs.hpp.

LocalFuncParam_

jlm::rvsdg::Output* jlm::llvm::EscapingLocalFunctionTest::LocalFuncParam_ = {}

private

Definition at line 2325 of file TestRvsdgs.hpp.

LocalFuncParamAllocaNode_

rvsdg::Node* jlm::llvm::EscapingLocalFunctionTest::LocalFuncParamAllocaNode_ = {}

private

Definition at line 2327 of file TestRvsdgs.hpp.

LocalFuncRegister_

jlm::rvsdg::Output* jlm::llvm::EscapingLocalFunctionTest::LocalFuncRegister_ = {}

private

Definition at line 2326 of file TestRvsdgs.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/TestRvsdgs.hpp
• jlm/llvm/TestRvsdgs.cpp
