jlm::llvm::IndirectCallTest2 Class Reference

IndirectCallTest2 class. More...

#include <TestRvsdgs.hpp>

Inheritance diagram for jlm::llvm::IndirectCallTest2:

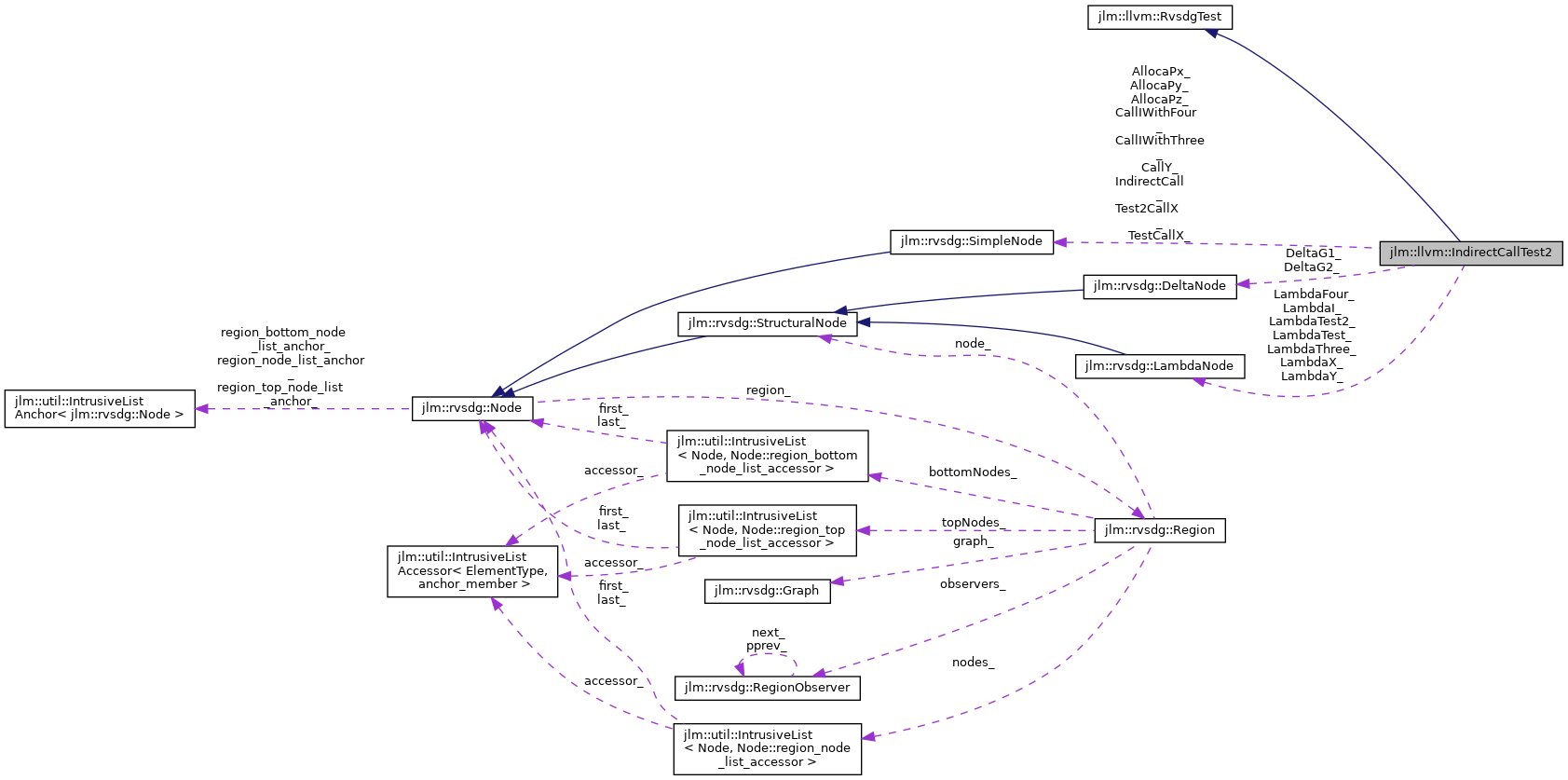

Collaboration diagram for jlm::llvm::IndirectCallTest2:

Public Member Functions
jlm::rvsdg::DeltaNode &	GetDeltaG1 () const noexcept
jlm::rvsdg::DeltaNode &	GetDeltaG2 () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaThree () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaFour () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaI () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaX () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaY () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaTest () const noexcept
jlm::rvsdg::LambdaNode &	GetLambdaTest2 () const noexcept
rvsdg::SimpleNode &	GetIndirectCall () const noexcept
rvsdg::SimpleNode &	GetCallIWithThree () const noexcept
rvsdg::SimpleNode &	GetCallIWithFour () const noexcept
rvsdg::SimpleNode &	GetTestCallX () const noexcept
rvsdg::SimpleNode &	GetTest2CallX () const noexcept
rvsdg::SimpleNode &	GetCallY () const noexcept
jlm::rvsdg::SimpleNode &	GetAllocaPx () const noexcept
jlm::rvsdg::SimpleNode &	GetAllocaPy () const noexcept
jlm::rvsdg::SimpleNode &	GetAllocaPz () const noexcept
Public Member Functions inherited from jlm::llvm::RvsdgTest
virtual	~RvsdgTest ()=default
jlm::llvm::LlvmRvsdgModule &	module ()
const rvsdg::Graph &	graph ()
void	InitializeTest ()

Private Member Functions
std::unique_ptr< jlm::llvm::LlvmRvsdgModule >	SetupRvsdg () override
	Create RVSDG for this test. More...

Private Attributes
jlm::rvsdg::DeltaNode *	DeltaG1_ {}
jlm::rvsdg::DeltaNode *	DeltaG2_ {}
jlm::rvsdg::LambdaNode *	LambdaThree_ {}
jlm::rvsdg::LambdaNode *	LambdaFour_ {}
jlm::rvsdg::LambdaNode *	LambdaI_ {}
jlm::rvsdg::LambdaNode *	LambdaX_ {}
jlm::rvsdg::LambdaNode *	LambdaY_ {}
jlm::rvsdg::LambdaNode *	LambdaTest_ {}
jlm::rvsdg::LambdaNode *	LambdaTest2_ {}
rvsdg::SimpleNode *	IndirectCall_ {}
rvsdg::SimpleNode *	CallIWithThree_ {}
rvsdg::SimpleNode *	CallIWithFour_ {}
rvsdg::SimpleNode *	TestCallX_ {}
rvsdg::SimpleNode *	Test2CallX_ {}
rvsdg::SimpleNode *	CallY_ {}
jlm::rvsdg::SimpleNode *	AllocaPx_ {}
jlm::rvsdg::SimpleNode *	AllocaPy_ {}
jlm::rvsdg::SimpleNode *	AllocaPz_ {}

Detailed Description

IndirectCallTest2 class.

This function sets up an RVSDG representing the following program:

static int32_t g1 = 1;
static int32_t g2 = 2;

static int32_t
three()
{
  return 3;
}

static int32_t
four()
{
  return 4;
}

static int32_t
i(int32_t(*f)())
{
  return f();
}

static int32_t
x(int32_t * p)
{
  *p = 5;
  return i(&three);
}

static int32_t
y(int32_t * p)
{
  *p = 6;
  return i(&four);
}

int32_t
test()
{
  int32_t px;
  int32_t py;
  int32_t sum = x(&px) + y(&py);
  sum += g1 + g2;

  return sum + px + py;
}

int32_t
test2()
{
  int32_t pz;
  return x(&pz);
}

It uses a single memory state to sequentialize the respective memory operations within each function.

Definition at line 686 of file TestRvsdgs.hpp.

Member Function Documentation

GetAllocaPx()

jlm::rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetAllocaPx ( ) const

inlinenoexcept

Definition at line 780 of file TestRvsdgs.hpp.

GetAllocaPy()

jlm::rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetAllocaPy ( ) const

inlinenoexcept

Definition at line 786 of file TestRvsdgs.hpp.

GetAllocaPz()

jlm::rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetAllocaPz ( ) const

inlinenoexcept

Definition at line 792 of file TestRvsdgs.hpp.

GetCallIWithFour()

rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetCallIWithFour ( ) const

inlinenoexcept

Definition at line 756 of file TestRvsdgs.hpp.

GetCallIWithThree()

rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetCallIWithThree ( ) const

inlinenoexcept

Definition at line 750 of file TestRvsdgs.hpp.

GetCallY()

rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetCallY ( ) const

inlinenoexcept

Definition at line 774 of file TestRvsdgs.hpp.

GetDeltaG1()

jlm::rvsdg::DeltaNode& jlm::llvm::IndirectCallTest2::GetDeltaG1 ( ) const

inlinenoexcept

Definition at line 690 of file TestRvsdgs.hpp.

GetDeltaG2()

jlm::rvsdg::DeltaNode& jlm::llvm::IndirectCallTest2::GetDeltaG2 ( ) const

inlinenoexcept

Definition at line 696 of file TestRvsdgs.hpp.

GetIndirectCall()

rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetIndirectCall ( ) const

inlinenoexcept

Definition at line 744 of file TestRvsdgs.hpp.

GetLambdaFour()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaFour ( ) const

inlinenoexcept

Definition at line 708 of file TestRvsdgs.hpp.

GetLambdaI()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaI ( ) const

inlinenoexcept

Definition at line 714 of file TestRvsdgs.hpp.

GetLambdaTest()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaTest ( ) const

inlinenoexcept

Definition at line 732 of file TestRvsdgs.hpp.

GetLambdaTest2()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaTest2 ( ) const

inlinenoexcept

Definition at line 738 of file TestRvsdgs.hpp.

GetLambdaThree()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaThree ( ) const

inlinenoexcept

Definition at line 702 of file TestRvsdgs.hpp.

GetLambdaX()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaX ( ) const

inlinenoexcept

Definition at line 720 of file TestRvsdgs.hpp.

GetLambdaY()

jlm::rvsdg::LambdaNode& jlm::llvm::IndirectCallTest2::GetLambdaY ( ) const

inlinenoexcept

Definition at line 726 of file TestRvsdgs.hpp.

GetTest2CallX()

rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetTest2CallX ( ) const

inlinenoexcept

Definition at line 768 of file TestRvsdgs.hpp.

GetTestCallX()

rvsdg::SimpleNode& jlm::llvm::IndirectCallTest2::GetTestCallX ( ) const

inlinenoexcept

Definition at line 762 of file TestRvsdgs.hpp.

SetupRvsdg()

std::unique_ptr< jlm::llvm::LlvmRvsdgModule > jlm::llvm::IndirectCallTest2::SetupRvsdg ( )

overrideprivatevirtual

Create RVSDG for this test.

Implements jlm::llvm::RvsdgTest.

Definition at line 903 of file TestRvsdgs.cpp.

Member Data Documentation

AllocaPx_

jlm::rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::AllocaPx_ {}

private

Definition at line 819 of file TestRvsdgs.hpp.

AllocaPy_

jlm::rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::AllocaPy_ {}

private

Definition at line 820 of file TestRvsdgs.hpp.

AllocaPz_

jlm::rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::AllocaPz_ {}

private

Definition at line 821 of file TestRvsdgs.hpp.

CallIWithFour_

rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::CallIWithFour_ {}

private

Definition at line 814 of file TestRvsdgs.hpp.

CallIWithThree_

rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::CallIWithThree_ {}

private

Definition at line 813 of file TestRvsdgs.hpp.

CallY_

rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::CallY_ {}

private

Definition at line 817 of file TestRvsdgs.hpp.

DeltaG1_

jlm::rvsdg::DeltaNode* jlm::llvm::IndirectCallTest2::DeltaG1_ {}

private

Definition at line 801 of file TestRvsdgs.hpp.

DeltaG2_

jlm::rvsdg::DeltaNode* jlm::llvm::IndirectCallTest2::DeltaG2_ {}

private

Definition at line 802 of file TestRvsdgs.hpp.

IndirectCall_

rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::IndirectCall_ {}

private

Definition at line 812 of file TestRvsdgs.hpp.

LambdaFour_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaFour_ {}

private

Definition at line 805 of file TestRvsdgs.hpp.

LambdaI_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaI_ {}

private

Definition at line 806 of file TestRvsdgs.hpp.

LambdaTest2_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaTest2_ {}

private

Definition at line 810 of file TestRvsdgs.hpp.

LambdaTest_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaTest_ {}

private

Definition at line 809 of file TestRvsdgs.hpp.

LambdaThree_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaThree_ {}

private

Definition at line 804 of file TestRvsdgs.hpp.

LambdaX_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaX_ {}

private

Definition at line 807 of file TestRvsdgs.hpp.

LambdaY_

jlm::rvsdg::LambdaNode* jlm::llvm::IndirectCallTest2::LambdaY_ {}

private

Definition at line 808 of file TestRvsdgs.hpp.

Test2CallX_

rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::Test2CallX_ {}

private

Definition at line 816 of file TestRvsdgs.hpp.

TestCallX_

rvsdg::SimpleNode* jlm::llvm::IndirectCallTest2::TestCallX_ {}

private

Definition at line 815 of file TestRvsdgs.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/TestRvsdgs.hpp
• jlm/llvm/TestRvsdgs.cpp
