jlm::llvm::LambdaEntryMemoryStateSplitOperation Class Reference

#include <MemoryStateOperations.hpp>

Inheritance diagram for jlm::llvm::LambdaEntryMemoryStateSplitOperation:

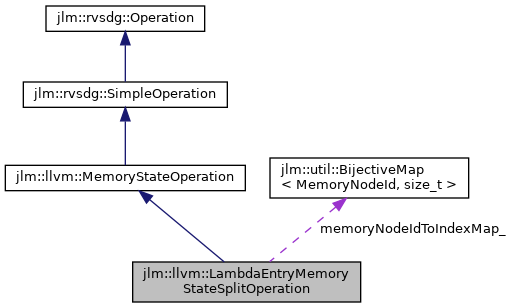

Collaboration diagram for jlm::llvm::LambdaEntryMemoryStateSplitOperation:

Public Member Functions
	~LambdaEntryMemoryStateSplitOperation () noexcept override
	LambdaEntryMemoryStateSplitOperation (const std::vector< MemoryNodeId > &memoryNodeIds)
bool	operator== (const Operation &other) const noexcept override
std::string	debug_string () const override
std::unique_ptr< Operation >	copy () const override
std::vector< MemoryNodeId >	getMemoryNodeIds () const noexcept
Public Member Functions inherited from jlm::rvsdg::SimpleOperation
	~SimpleOperation () noexcept override
	SimpleOperation (std::vector< std::shared_ptr< const jlm::rvsdg::Type >> operands, std::vector< std::shared_ptr< const jlm::rvsdg::Type >> results)
size_t	narguments () const noexcept
const std::shared_ptr< const rvsdg::Type > &	argument (size_t index) const noexcept
size_t	nresults () const noexcept
const std::shared_ptr< const rvsdg::Type > &	result (size_t index) const noexcept
Public Member Functions inherited from jlm::rvsdg::Operation
virtual	~Operation () noexcept
virtual bool	operator== (const Operation &other) const noexcept=0
bool	operator!= (const Operation &other) const noexcept

Static Public Member Functions
static rvsdg::Output *	tryMapMemoryNodeIdToOutput (const rvsdg::SimpleNode &node, MemoryNodeId memoryNodeId)
static MemoryNodeId	mapOutputToMemoryNodeId (const rvsdg::Output &output)
static std::optional< std::vector< rvsdg::Output * > >	NormalizeCallEntryMemoryStateMerge (const LambdaEntryMemoryStateSplitOperation &lambdaEntrySplitOperation, const std::vector< rvsdg::Output * > &operands)
static rvsdg::SimpleNode &	CreateNode (rvsdg::Output &operand, std::vector< MemoryNodeId > memoryNodeIds)

Private Attributes
util::BijectiveMap< MemoryNodeId, size_t >	memoryNodeIdToIndexMap_ {}

Additional Inherited Members
Protected Member Functions inherited from jlm::llvm::MemoryStateOperation
	MemoryStateOperation (size_t numOperands, size_t numResults)

Detailed Description

A lambda entry memory state split operation takes a single input state and splits it into multiple output states. In contrast to the MemoryStateSplitOperation, this operation is allowed to have zero output states. The operation's input is required to be connected to the memory state argument of a lambda.

The operation has no equivalent LLVM instruction.

See also

LambdaExitMemoryStateMergeOperation

Definition at line 288 of file MemoryStateOperations.hpp.

Constructor & Destructor Documentation

~LambdaEntryMemoryStateSplitOperation()

jlm::llvm::LambdaEntryMemoryStateSplitOperation::~LambdaEntryMemoryStateSplitOperation ( )

overridedefaultnoexcept

LambdaEntryMemoryStateSplitOperation()

jlm::llvm::LambdaEntryMemoryStateSplitOperation::LambdaEntryMemoryStateSplitOperation ( const std::vector< MemoryNodeId > &  memoryNodeIds )

explicit

Definition at line 309 of file MemoryStateOperations.cpp.

Member Function Documentation

copy()

std::unique_ptr< rvsdg::Operation > jlm::llvm::LambdaEntryMemoryStateSplitOperation::copy ( ) const

overridevirtual

Implements jlm::rvsdg::Operation.

Definition at line 337 of file MemoryStateOperations.cpp.

CreateNode()

static rvsdg::SimpleNode& jlm::llvm::LambdaEntryMemoryStateSplitOperation::CreateNode ( rvsdg::Output &  operand, std::vector< MemoryNodeId >  memoryNodeIds  )

inlinestatic

Definition at line 361 of file MemoryStateOperations.hpp.

debug_string()

std::string jlm::llvm::LambdaEntryMemoryStateSplitOperation::debug_string ( ) const

overridevirtual

Implements jlm::rvsdg::Operation.

Definition at line 331 of file MemoryStateOperations.cpp.

getMemoryNodeIds()

std::vector<MemoryNodeId> jlm::llvm::LambdaEntryMemoryStateSplitOperation::getMemoryNodeIds ( ) const

inlinenoexcept

Returns

The MemoryNodeId for each of the operation's results.

Definition at line 308 of file MemoryStateOperations.hpp.

mapOutputToMemoryNodeId()

MemoryNodeId jlm::llvm::LambdaEntryMemoryStateSplitOperation::mapOutputToMemoryNodeId ( const rvsdg::Output &  output )

static

Maps the output a LambdaEntryMemoryStateSplitOperation node to the respective MemoryNodeId.

Parameters

output

A output of LambdaEntryMemoryStateSplitOperation node.

Returns

The MemoryNodeId.

Precondition

The output is assumed to belong to a LambdaEntryMemoryStateSplitOperation node.

Definition at line 364 of file MemoryStateOperations.cpp.

NormalizeCallEntryMemoryStateMerge()

std::optional< std::vector< rvsdg::Output * > > jlm::llvm::LambdaEntryMemoryStateSplitOperation::NormalizeCallEntryMemoryStateMerge ( const LambdaEntryMemoryStateSplitOperation &  lambdaEntrySplitOperation, const std::vector< rvsdg::Output * > &  operands  )

static

Perform the following transformation:

oN = CallEntryMemoryStateMergeOperation o0 ... oK oX ... oZ = LambdaEntryMemoryStateSplitOperation oN ... = AnyOp oX ... oZ => ... = AnyOp o0 ... oK

This transformation can occur after function inlining, i.e., a CallOperation has been replaced with the body of its respective rvsdg::LambdaNode.

Definition at line 374 of file MemoryStateOperations.cpp.

operator==()

bool jlm::llvm::LambdaEntryMemoryStateSplitOperation::operator== ( const Operation &  other ) const

overridenoexcept

Definition at line 323 of file MemoryStateOperations.cpp.

tryMapMemoryNodeIdToOutput()

rvsdg::Output * jlm::llvm::LambdaEntryMemoryStateSplitOperation::tryMapMemoryNodeIdToOutput ( const rvsdg::SimpleNode &  node, MemoryNodeId  memoryNodeId  )

static

Maps a memory node identifier to the respective output of a LambdaEntryMemoryStateSplitOperation node.

Parameters

node	A LambdaEntryMemoryStateSplitOperation node.
memoryNodeId	A memory node identifier.

Returns

The respective output if the memory node identifier maps to one, otherwise nullptr.

Definition at line 343 of file MemoryStateOperations.cpp.

Member Data Documentation

memoryNodeIdToIndexMap_

util::BijectiveMap<MemoryNodeId, size_t> jlm::llvm::LambdaEntryMemoryStateSplitOperation::memoryNodeIdToIndexMap_ {}

private

Definition at line 369 of file MemoryStateOperations.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/ir/operators/MemoryStateOperations.hpp
• jlm/llvm/ir/operators/MemoryStateOperations.cpp
