jlm::llvm::aa::AgnosticModRefSummary Class Reference

Mod/Ref summary of agnostic mod/ref summarizer. More...

Inheritance diagram for jlm::llvm::aa::AgnosticModRefSummary:

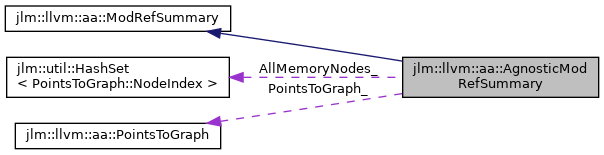

Collaboration diagram for jlm::llvm::aa::AgnosticModRefSummary:

Public Member Functions
	~AgnosticModRefSummary () noexcept override=default
	AgnosticModRefSummary (const AgnosticModRefSummary &)=delete
	AgnosticModRefSummary (AgnosticModRefSummary &&)=delete
AgnosticModRefSummary &	operator= (const AgnosticModRefSummary &)=delete
AgnosticModRefSummary &	operator= (AgnosticModRefSummary &&)=delete
const PointsToGraph &	GetPointsToGraph () const noexcept override
void	SetSimpleNodeModRef (const rvsdg::SimpleNode &node, AgnosticModRefSet modRefSet)
const ModRefSet &	GetSimpleNodeModRef (const rvsdg::SimpleNode &node) const override
const ModRefSet &	GetGammaEntryModRef (const rvsdg::GammaNode &gamma) const override
const ModRefSet &	GetGammaExitModRef (const rvsdg::GammaNode &gamma) const override
const ModRefSet &	GetThetaModRef (const rvsdg::ThetaNode &theta) const override
const ModRefSet &	GetLambdaEntryModRef (const rvsdg::LambdaNode &lambda) const override
const ModRefSet &	GetLambdaExitModRef (const rvsdg::LambdaNode &lambda) const override
Public Member Functions inherited from jlm::llvm::aa::ModRefSummary
virtual	~ModRefSummary () noexcept=default

Static Public Member Functions
static std::unique_ptr< AgnosticModRefSummary >	Create (const PointsToGraph &pointsToGraph, AgnosticModRefSet allMemoryNodes)

Private Member Functions
	AgnosticModRefSummary (const PointsToGraph &pointsToGraph, AgnosticModRefSet allMemoryNodes)

Private Attributes
const PointsToGraph &	PointsToGraph_
std::unordered_map< const rvsdg::SimpleNode *, AgnosticModRefSet >	SimpleNodeModRefs_
AgnosticModRefSet	AllMemoryNodes_

Detailed Description

Mod/Ref summary of agnostic mod/ref summarizer.

Definition at line 42 of file AgnosticModRefSummarizer.cpp.

Constructor & Destructor Documentation

~AgnosticModRefSummary()

jlm::llvm::aa::AgnosticModRefSummary::~AgnosticModRefSummary ( )

overridedefaultnoexcept

AgnosticModRefSummary() [1/3]

jlm::llvm::aa::AgnosticModRefSummary::AgnosticModRefSummary ( const PointsToGraph &  pointsToGraph, AgnosticModRefSet  allMemoryNodes  )

inlineprivate

Definition at line 48 of file AgnosticModRefSummarizer.cpp.

AgnosticModRefSummary() [2/3]

jlm::llvm::aa::AgnosticModRefSummary::AgnosticModRefSummary ( const AgnosticModRefSummary &  )

delete

AgnosticModRefSummary() [3/3]

jlm::llvm::aa::AgnosticModRefSummary::AgnosticModRefSummary ( AgnosticModRefSummary &&  )

delete

Member Function Documentation

Create()

static std::unique_ptr< AgnosticModRefSummary > jlm::llvm::aa::AgnosticModRefSummary::Create ( const PointsToGraph &  pointsToGraph, AgnosticModRefSet  allMemoryNodes  )

inlinestatic

Definition at line 122 of file AgnosticModRefSummarizer.cpp.

GetGammaEntryModRef()

const ModRefSet & jlm::llvm::aa::AgnosticModRefSummary::GetGammaEntryModRef ( const rvsdg::GammaNode &  gamma ) const

inlineoverridevirtual

Provides the set of memory nodes that should be routed into a given gamma node

Parameters

gamma

the gamma node

Returns

the entry Mod/Ref set for the gamma

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 92 of file AgnosticModRefSummarizer.cpp.

GetGammaExitModRef()

const ModRefSet & jlm::llvm::aa::AgnosticModRefSummary::GetGammaExitModRef ( const rvsdg::GammaNode &  gamma ) const

inlineoverridevirtual

Provides the set of memory nodes that should be routed out of a given gamma node

Parameters

gamma

the gamma node

Returns

the exit Mod/Ref set for the gamma

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 98 of file AgnosticModRefSummarizer.cpp.

GetLambdaEntryModRef()

const ModRefSet & jlm::llvm::aa::AgnosticModRefSummary::GetLambdaEntryModRef ( const rvsdg::LambdaNode &  lambda ) const

inlineoverridevirtual

Provides the set of memory nodes that are routed in to the given lambda's subregion

Parameters

lambda

the lambda node

Returns

the entry Mod/Ref set for the lambda

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 110 of file AgnosticModRefSummarizer.cpp.

GetLambdaExitModRef()

const ModRefSet & jlm::llvm::aa::AgnosticModRefSummary::GetLambdaExitModRef ( const rvsdg::LambdaNode &  lambda ) const

inlineoverridevirtual

Provides the set of memory nodes that are routed out of the given lambda's subregion

Parameters

lambda

the lambda node

Returns

the exit Mod/Ref set for the lambda

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 116 of file AgnosticModRefSummarizer.cpp.

GetPointsToGraph()

const PointsToGraph & jlm::llvm::aa::AgnosticModRefSummary::GetPointsToGraph ( ) const

inlineoverridevirtualnoexcept

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 65 of file AgnosticModRefSummarizer.cpp.

GetSimpleNodeModRef()

const ModRefSet & jlm::llvm::aa::AgnosticModRefSummary::GetSimpleNodeModRef ( const rvsdg::SimpleNode &  node ) const

inlineoverridevirtual

Provides the ModRefSet containing memory nodes that may be modified or referenced by the given simple node.

The simple node can be any operation that reads from memory, or produces value of memory, e.g.:

• LoadOperation and StoreOperation nodes
• MemCpyOperation nodes
• FreeOperation nodes
• CallOperation nodes, i.e., function calls
• AllocaOperation and MallocOperation nodes, which produce memory states

Parameters

node	the node operating on memory

Returns

the Mod/Ref set of the node.

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 78 of file AgnosticModRefSummarizer.cpp.

GetThetaModRef()

const ModRefSet & jlm::llvm::aa::AgnosticModRefSummary::GetThetaModRef ( const rvsdg::ThetaNode &  theta ) const

inlineoverridevirtual

Provides the set of memory nodes that should be routed in and out of a theta node

Parameters

theta

the theta node

Returns

the Mod/Ref set for the theta

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 104 of file AgnosticModRefSummarizer.cpp.

operator=() [1/2]

AgnosticModRefSummary & jlm::llvm::aa::AgnosticModRefSummary::operator= ( AgnosticModRefSummary &&  )

delete

operator=() [2/2]

AgnosticModRefSummary & jlm::llvm::aa::AgnosticModRefSummary::operator= ( const AgnosticModRefSummary &  )

delete

SetSimpleNodeModRef()

void jlm::llvm::aa::AgnosticModRefSummary::SetSimpleNodeModRef ( const rvsdg::SimpleNode &  node, AgnosticModRefSet  modRefSet  )

inline

Definition at line 71 of file AgnosticModRefSummarizer.cpp.

Member Data Documentation

AllMemoryNodes_

AgnosticModRefSet jlm::llvm::aa::AgnosticModRefSummary::AllMemoryNodes_

private

Definition at line 131 of file AgnosticModRefSummarizer.cpp.

PointsToGraph_

const PointsToGraph& jlm::llvm::aa::AgnosticModRefSummary::PointsToGraph_

private

Definition at line 129 of file AgnosticModRefSummarizer.cpp.

SimpleNodeModRefs_

std::unordered_map<const rvsdg::SimpleNode *, AgnosticModRefSet> jlm::llvm::aa::AgnosticModRefSummary::SimpleNodeModRefs_

private

Definition at line 130 of file AgnosticModRefSummarizer.cpp.

---

The documentation for this class was generated from the following file:

• jlm/llvm/opt/alias-analyses/AgnosticModRefSummarizer.cpp
