jlm::llvm::aa::AliasAnalysisPrecisionEvaluator Class Reference

#include <AliasAnalysisPrecisionEvaluator.hpp>

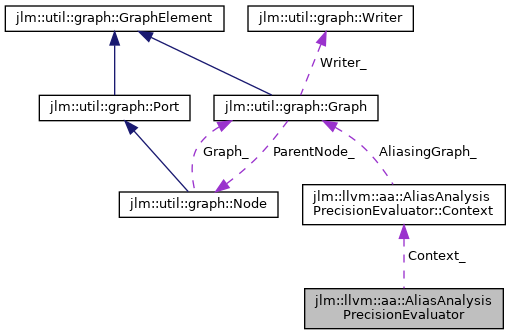

Collaboration diagram for jlm::llvm::aa::AliasAnalysisPrecisionEvaluator:

Classes
struct	AggregatedClobberInfos
struct	Context
struct	PrecisionInfo
class	PrecisionStatistics

Public Member Functions
	AliasAnalysisPrecisionEvaluator ()
	~AliasAnalysisPrecisionEvaluator () noexcept
void	SetLoadsConsideredClobbers (bool loadsConsideredClobbers) noexcept
bool	AreLoadsConsideredClobbers () const noexcept
void	SetDeduplicatePointers (bool deduplicatePointers) noexcept
bool	IsDeduplicatingPointers () const noexcept
void	SetAliasingGraphEnabled (bool aliasingGraphEnabled) noexcept
bool	IsAliasingGraphEnabled () const noexcept
void	SetPerFunctionOutputEnabled (bool perFunctionOutputEnabled) noexcept
bool	IsPerFunctionOutputEnabled () const noexcept
void	EvaluateAliasAnalysisClient (const rvsdg::RvsdgModule &rvsdgModule, AliasAnalysis &aliasAnalysis, util::StatisticsCollector &statisticsCollector)

Private Member Functions
void	EvaluateAllFunctions (const rvsdg::Region &region, AliasAnalysis &aliasAnalysis)
void	EvaluateFunction (const rvsdg::LambdaNode &function, AliasAnalysis &aliasAnalysis)
void	CollectPointersFromRegion (const rvsdg::Region &region)
void	CollectPointersFromSimpleNode (const rvsdg::SimpleNode &node)
void	CollectPointersFromStructuralNode (const rvsdg::StructuralNode &node)
void	CollectPointer (const rvsdg::Output *value, size_t size, bool isClobber)
void	NormalizePointerValues ()
void	AggregateDuplicates ()
void	CalculateResults (std::optional< util::FilePath > perFunctionOutput, PrecisionStatistics &statistics) const
void	AddToAliasingGraph (const rvsdg::Output &p1, size_t s1, const rvsdg::Output &p2, size_t s2, AliasAnalysis::AliasQueryResponse response)

Static Private Member Functions
static AggregatedClobberInfos	AggregateClobberInfos (const std::vector< PrecisionInfo::ClobberInfo > &clobberInfos)
static void	PrintAggregatedClobberInfos (const AggregatedClobberInfos &clobberInfos, std::ostream &out)

Private Attributes
bool	LoadsConsideredClobbers_ = false
bool	DeduplicatePointers_ = false
bool	AliasingGraphEnabled_ = false
bool	PerFunctionOutputEnabled_ = false
Context	Context_

Detailed Description

Class for evaluating the precision of a PointsToGraph on an RVSDG module. Uses a pairwise alias analysis to ask MayAlias queries on relevant pairs of pointers. Only considers load and store operations, and not function calls.

Definition at line 30 of file AliasAnalysisPrecisionEvaluator.hpp.

Constructor & Destructor Documentation

AliasAnalysisPrecisionEvaluator()

jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::AliasAnalysisPrecisionEvaluator ( )

default

~AliasAnalysisPrecisionEvaluator()

jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::~AliasAnalysisPrecisionEvaluator ( )

defaultnoexcept

Member Function Documentation

AddToAliasingGraph()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::AddToAliasingGraph ( const rvsdg::Output &  p1, size_t  s1, const rvsdg::Output &  p2, size_t  s2, AliasAnalysis::AliasQueryResponse  response  )

private

Creates nodes corresponding to operations on p1 and p2 in the aliasing graph, and adds an edge between them based on the alias response.

Parameters

p1	the first pointer
s1	the size of the operation at the first pointer
p2	the second pointer
s2	the size of the operation at the second pointer
response	the result of performing an alias query on the operation pair

Definition at line 359 of file AliasAnalysisPrecisionEvaluator.cpp.

AggregateClobberInfos()

AliasAnalysisPrecisionEvaluator::AggregatedClobberInfos jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::AggregateClobberInfos ( const std::vector< PrecisionInfo::ClobberInfo > &  clobberInfos )

staticprivate

Adds up a list of ClobberInfo structs, where each element represents N clobber operations Returns results for the average clobber, as well as total alias query response counts

Definition at line 402 of file AliasAnalysisPrecisionEvaluator.cpp.

AggregateDuplicates()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::AggregateDuplicates ( )

private

Removes repeated instances of the same (pointer, size) pair in the current context. If IsDeduplicatingPointers() is true, duplicate instances are discarded. Otherwise, the duplicated instances are added up and given a multiplier.

Definition at line 327 of file AliasAnalysisPrecisionEvaluator.cpp.

AreLoadsConsideredClobbers()

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::AreLoadsConsideredClobbers ( ) const

inlinenoexcept

Definition at line 54 of file AliasAnalysisPrecisionEvaluator.hpp.

CalculateResults()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::CalculateResults ( std::optional< util::FilePath >  perFunctionOutput, PrecisionStatistics &  statistics  ) const

private

Called once all functions have been evaluated, to calculate and print averages. Adds up both the total number of responses, and calculates average response rates per clobber.

Parameters

perFunctionOutput	if given, statistics about each function are written to the file
statistics	the statistics instance where the final module-level statistics are written

Definition at line 463 of file AliasAnalysisPrecisionEvaluator.cpp.

CollectPointer()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::CollectPointer ( const rvsdg::Output *  value, size_t  size, bool  isClobber  )

private

Adds the given pointer + size to the list of operations in the function being evaluated

Definition at line 307 of file AliasAnalysisPrecisionEvaluator.cpp.

CollectPointersFromRegion()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::CollectPointersFromRegion ( const rvsdg::Region &  region )

private

Definition at line 256 of file AliasAnalysisPrecisionEvaluator.cpp.

CollectPointersFromSimpleNode()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::CollectPointersFromSimpleNode ( const rvsdg::SimpleNode &  node )

private

Definition at line 276 of file AliasAnalysisPrecisionEvaluator.cpp.

CollectPointersFromStructuralNode()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::CollectPointersFromStructuralNode ( const rvsdg::StructuralNode &  node )

private

Definition at line 297 of file AliasAnalysisPrecisionEvaluator.cpp.

EvaluateAliasAnalysisClient()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::EvaluateAliasAnalysisClient	(	const rvsdg::RvsdgModule &	rvsdgModule,
		AliasAnalysis &	aliasAnalysis,
		util::StatisticsCollector &	statisticsCollector
	)

Performs alias analysis precision evaluation on the given rvsdgModule, using the given aliasAnalysis instance. If the given statisticsCollector does not demand Statistics::Id::AliasAnalysisPrecisionEvaluation, evaluation is skipped.

Definition at line 109 of file AliasAnalysisPrecisionEvaluator.cpp.

EvaluateAllFunctions()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::EvaluateAllFunctions ( const rvsdg::Region &  region, AliasAnalysis &  aliasAnalysis  )

private

Definition at line 163 of file AliasAnalysisPrecisionEvaluator.cpp.

EvaluateFunction()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::EvaluateFunction ( const rvsdg::LambdaNode &  function, AliasAnalysis &  aliasAnalysis  )

private

Definition at line 181 of file AliasAnalysisPrecisionEvaluator.cpp.

IsAliasingGraphEnabled()

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::IsAliasingGraphEnabled ( ) const

inlinenoexcept

Definition at line 94 of file AliasAnalysisPrecisionEvaluator.hpp.

IsDeduplicatingPointers()

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::IsDeduplicatingPointers ( ) const

inlinenoexcept

Definition at line 73 of file AliasAnalysisPrecisionEvaluator.hpp.

IsPerFunctionOutputEnabled()

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::IsPerFunctionOutputEnabled ( ) const

inlinenoexcept

Definition at line 112 of file AliasAnalysisPrecisionEvaluator.hpp.

NormalizePointerValues()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::NormalizePointerValues ( )

private

Updates the pointers collected in the current context by tracing their origin. This is only done for pointers that are trivially passed directly through nodes or into regions.

Definition at line 317 of file AliasAnalysisPrecisionEvaluator.cpp.

PrintAggregatedClobberInfos()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::PrintAggregatedClobberInfos ( const AggregatedClobberInfos &  clobberInfos, std::ostream &  out  )

staticprivate

Outputs the aggregated clobber infos to the given output stream

Parameters

clobberInfos	the result of aggregating a set of clobbering operations
out	the stream to write the results to

Definition at line 441 of file AliasAnalysisPrecisionEvaluator.cpp.

SetAliasingGraphEnabled()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::SetAliasingGraphEnabled ( bool  aliasingGraphEnabled )

inlinenoexcept

Enables or disables the creation of an aliasing graph. When enabled, the pass produces a GraphWriter output of the module, with an additional graph containing pointer values, and edges connecting pairs of pointers where the alias analysis responded MayAlias and MustAlias. The graph is written to an output file in the statistics directory.

Parameters

aliasingGraphEnabled

if true, evaluation will produce an aliasing graph.

Definition at line 88 of file AliasAnalysisPrecisionEvaluator.hpp.

SetDeduplicatePointers()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::SetDeduplicatePointers ( bool  deduplicatePointers )

inlinenoexcept

Enables or disables the deduplication of pointers during precision evaluation. Deduplication removes duplicate instances of (pointer, size) operations in each function. If any of the (pointer, size) operations is a clobber, the deduplicated operation is a clobber.

Parameters

deduplicatePointers

if true, pointers will be deduplicated.

Definition at line 67 of file AliasAnalysisPrecisionEvaluator.hpp.

SetLoadsConsideredClobbers()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::SetLoadsConsideredClobbers ( bool  loadsConsideredClobbers )

inlinenoexcept

Makes loads count as clobbering operations. Alias queries are only made between pairs operations if at least one of them is a clobber. If alias queries between pairs of loads are desired, set this to true.

Default: false

Parameters

loadsConsideredClobbers

if true, loads will be clobbers.

Definition at line 48 of file AliasAnalysisPrecisionEvaluator.hpp.

SetPerFunctionOutputEnabled()

void jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::SetPerFunctionOutputEnabled ( bool  perFunctionOutputEnabled )

inlinenoexcept

Enables or disables the creation of a file containing precision statistics per function. When enabled, the file is created in the statistics output directory.

Parameters

perFunctionOutputEnabled

if true, evaluation will print output per function to a file.

Definition at line 106 of file AliasAnalysisPrecisionEvaluator.hpp.

Member Data Documentation

AliasingGraphEnabled_

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::AliasingGraphEnabled_ = false

private

Definition at line 285 of file AliasAnalysisPrecisionEvaluator.hpp.

Context_

Context jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::Context_

private

Definition at line 291 of file AliasAnalysisPrecisionEvaluator.hpp.

DeduplicatePointers_

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::DeduplicatePointers_ = false

private

Definition at line 282 of file AliasAnalysisPrecisionEvaluator.hpp.

LoadsConsideredClobbers_

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::LoadsConsideredClobbers_ = false

private

Definition at line 279 of file AliasAnalysisPrecisionEvaluator.hpp.

PerFunctionOutputEnabled_

bool jlm::llvm::aa::AliasAnalysisPrecisionEvaluator::PerFunctionOutputEnabled_ = false

private

Definition at line 288 of file AliasAnalysisPrecisionEvaluator.hpp.

---

The documentation for this class was generated from the following files:

• jlm/llvm/opt/alias-analyses/AliasAnalysisPrecisionEvaluator.hpp
• jlm/llvm/opt/alias-analyses/AliasAnalysisPrecisionEvaluator.cpp
