Mod/Ref summary of region-aware mod/ref summarizer. More...

Inheritance diagram for jlm::llvm::aa::RegionAwareModRefSummary:

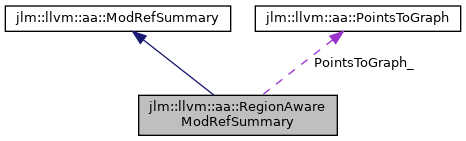

Collaboration diagram for jlm::llvm::aa::RegionAwareModRefSummary:

[legend]

Public Member Functions
	RegionAwareModRefSummary (const PointsToGraph &pointsToGraph)

	RegionAwareModRefSummary (const RegionAwareModRefSummary &)=delete

RegionAwareModRefSummary &	operator= (const RegionAwareModRefSummary &)=delete

const PointsToGraph &	GetPointsToGraph () const noexcept override

size_t	NumModRefSets () const noexcept

RegionAwareModRefSet &	getModRefSet (ModRefSetIndex index)

const RegionAwareModRefSet &	getModRefSet (ModRefSetIndex index) const

bool	markSetAsReferencingExternal (ModRefSetIndex index, size_t minSize)

bool	markSetAsModifyingExternal (ModRefSetIndex index, size_t minSize)

bool	markSetAsCallingExternalFunction (ModRefSetIndex index)

bool	addMemoryNodeToSet (ModRefSetIndex index, PointsToGraph::NodeIndex ptgNode, ModRefEffect modRefEffect)

bool	addExplicitMemoryNodeToSet (ModRefSetIndex index, PointsToGraph::NodeIndex ptgNode, ModRefEffect modRefEffect)

ModRefSetIndex	getExternModRefSet () const noexcept

bool	hasSetForNode (const rvsdg::Node &node) const

ModRefSetIndex	getSetForNode (const rvsdg::Node &node) const

ModRefSetIndex	getOrCreateSetForNode (const rvsdg::Node &node, const rvsdg::LambdaNode &lambdaNode)

const std::vector< ModRefSetIndex > &	getAllSetsInFunction (const rvsdg::LambdaNode &lambdaNode)

std::string	getModRefSetDebugString (ModRefSetIndex index) const

const ModRefSet &	GetSimpleNodeModRef (const rvsdg::SimpleNode &node) const override

const ModRefSet &	GetGammaEntryModRef (const rvsdg::GammaNode &gamma) const override

const ModRefSet &	GetGammaExitModRef (const rvsdg::GammaNode &gamma) const override

const ModRefSet &	GetThetaModRef (const rvsdg::ThetaNode &theta) const override

const ModRefSet &	GetLambdaEntryModRef (const rvsdg::LambdaNode &lambda) const override

const ModRefSet &	GetLambdaExitModRef (const rvsdg::LambdaNode &lambda) const override

Public Member Functions inherited from jlm::llvm::aa::ModRefSummary
virtual	~ModRefSummary () noexcept=default

Static Public Member Functions
static std::unique_ptr< RegionAwareModRefSummary >	Create (const PointsToGraph &pointsToGraph)

Private Member Functions
ModRefSetIndex	createModRefSet ()

Private Attributes
const PointsToGraph &	pointsToGraph_

std::vector< RegionAwareModRefSet >	modRefSets_

ModRefSetIndex	externModRefSet_

std::unordered_map< const rvsdg::LambdaNode *, std::vector< ModRefSetIndex > >	modRefSetsInFunction_

std::unordered_map< const rvsdg::Node *, ModRefSetIndex >	nodeMap_

Detailed Description

Mod/Ref summary of region-aware mod/ref summarizer.

Definition at line 484 of file RegionAwareModRefSummarizer.cpp.

Constructor & Destructor Documentation

◆ RegionAwareModRefSummary() [1/2]

jlm::llvm::aa::RegionAwareModRefSummary::RegionAwareModRefSummary ( const PointsToGraph & pointsToGraph )

inlineexplicit

Definition at line 487 of file RegionAwareModRefSummarizer.cpp.

◆ RegionAwareModRefSummary() [2/2]

jlm::llvm::aa::RegionAwareModRefSummary::RegionAwareModRefSummary ( const RegionAwareModRefSummary & )

delete

Member Function Documentation

◆ addExplicitMemoryNodeToSet()

bool jlm::llvm::aa::RegionAwareModRefSummary::addExplicitMemoryNodeToSet	(	ModRefSetIndex	index,
		PointsToGraph::NodeIndex	ptgNode,
		ModRefEffect	modRefEffect
	)

inline

Adds the given memory node to a ModRefSet with the given effect. Does not perform any checks against doubled-up memory nodes.

Parameters

index	the index of the ModRefSet being added to
ptgNode	the index of the memory node in the points-to graph
modRefEffect	the effect the ModRefSet has on the memory node

See also: addMemoryNodeToSet

Definition at line 576 of file RegionAwareModRefSummarizer.cpp.

◆ addMemoryNodeToSet()

bool jlm::llvm::aa::RegionAwareModRefSummary::addMemoryNodeToSet	(	ModRefSetIndex	index,
		PointsToGraph::NodeIndex	ptgNode,
		ModRefEffect	modRefEffect
	)

inline

Adds the given ptgNode the ModRefSet with the given index. Performs checks to avoid adding doubled-up memory nodes.

Parameters

index	the index of the ModRefSet being added to
ptgNode	the index of the memory node in the points-to graph
modRefEffect	the effect the ModRefSet has on the memory node

Returns: true if the ModRefSet grew, false otherwise.

Definition at line 555 of file RegionAwareModRefSummarizer.cpp.

◆ Create()

static std::unique_ptr< RegionAwareModRefSummary > jlm::llvm::aa::RegionAwareModRefSummary::Create ( const PointsToGraph & pointsToGraph )

inlinestatic

Definition at line 722 of file RegionAwareModRefSummarizer.cpp.

◆ createModRefSet()

ModRefSetIndex jlm::llvm::aa::RegionAwareModRefSummary::createModRefSet ( )

inlineprivate

Definition at line 729 of file RegionAwareModRefSummarizer.cpp.

◆ getAllSetsInFunction()

const std::vector< ModRefSetIndex > & jlm::llvm::aa::RegionAwareModRefSummary::getAllSetsInFunction ( const rvsdg::LambdaNode & lambdaNode )

inline

Definition at line 637 of file RegionAwareModRefSummarizer.cpp.

◆ getExternModRefSet()

ModRefSetIndex jlm::llvm::aa::RegionAwareModRefSummary::getExternModRefSet ( ) const

inlinenoexcept

The ModRefSummary has one set representing external functions, containing all memory nodes that can be referenced or modified by external functions. This set also includes memory operations performed in functions that can be called from external functions, so will in practice contain most memory operations in the module. The exceptions are allocas that are provably not involved in recursion, since any such alloca that is affected by a call to an external function will be dead by the time the call returns.

Returns: the index of the ModRefSet representing external functions

Definition at line 596 of file RegionAwareModRefSummarizer.cpp.

◆ GetGammaEntryModRef()

const ModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::GetGammaEntryModRef ( const rvsdg::GammaNode & gamma ) const

inlineoverridevirtual

Provides the set of memory nodes that should be routed into a given gamma node

Parameters

gamma the gamma node

Returns: the entry Mod/Ref set for the gamma

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 692 of file RegionAwareModRefSummarizer.cpp.

◆ GetGammaExitModRef()

const ModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::GetGammaExitModRef ( const rvsdg::GammaNode & gamma ) const

inlineoverridevirtual

Provides the set of memory nodes that should be routed out of a given gamma node

Parameters

gamma the gamma node

Returns: the exit Mod/Ref set for the gamma

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 698 of file RegionAwareModRefSummarizer.cpp.

◆ GetLambdaEntryModRef()

const ModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::GetLambdaEntryModRef ( const rvsdg::LambdaNode & lambda ) const

inlineoverridevirtual

Provides the set of memory nodes that are routed in to the given lambda's subregion

Parameters

lambda the lambda node

Returns: the entry Mod/Ref set for the lambda

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 710 of file RegionAwareModRefSummarizer.cpp.

◆ GetLambdaExitModRef()

const ModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::GetLambdaExitModRef ( const rvsdg::LambdaNode & lambda ) const

inlineoverridevirtual

Provides the set of memory nodes that are routed out of the given lambda's subregion

Parameters

lambda the lambda node

Returns: the exit Mod/Ref set for the lambda

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 716 of file RegionAwareModRefSummarizer.cpp.

◆ getModRefSet() [1/2]

RegionAwareModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::getModRefSet ( ModRefSetIndex index )

inline

Definition at line 514 of file RegionAwareModRefSummarizer.cpp.

◆ getModRefSet() [2/2]

const RegionAwareModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::getModRefSet ( ModRefSetIndex index ) const

inline

Definition at line 521 of file RegionAwareModRefSummarizer.cpp.

◆ getModRefSetDebugString()

std::string jlm::llvm::aa::RegionAwareModRefSummary::getModRefSetDebugString ( ModRefSetIndex index ) const

inline

Definition at line 643 of file RegionAwareModRefSummarizer.cpp.

◆ getOrCreateSetForNode()

ModRefSetIndex jlm::llvm::aa::RegionAwareModRefSummary::getOrCreateSetForNode	(	const rvsdg::Node &	node,
		const rvsdg::LambdaNode &	lambdaNode
	)

inline

Get the ModRefSet associated with the given node, or creates one if none exists.

Parameters

node	the RVSDG node to be represented by a ModRefSet
lambdaNode	the function the RVSDG node belongs to.

Returns: the index of the exisiting or created ModRefSet representing the node

Definition at line 622 of file RegionAwareModRefSummarizer.cpp.

◆ GetPointsToGraph()

const PointsToGraph & jlm::llvm::aa::RegionAwareModRefSummary::GetPointsToGraph ( ) const

inlineoverridevirtualnoexcept

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 502 of file RegionAwareModRefSummarizer.cpp.

◆ getSetForNode()

ModRefSetIndex jlm::llvm::aa::RegionAwareModRefSummary::getSetForNode ( const rvsdg::Node & node ) const

inline

Definition at line 608 of file RegionAwareModRefSummarizer.cpp.

◆ GetSimpleNodeModRef()

const ModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::GetSimpleNodeModRef ( const rvsdg::SimpleNode & node ) const

inlineoverridevirtual

Provides the ModRefSet containing memory nodes that may be modified or referenced by the given simple node.

The simple node can be any operation that reads from memory, or produces value of memory, e.g.:

LoadOperation and StoreOperation nodes
MemCpyOperation nodes
FreeOperation nodes
CallOperation nodes, i.e., function calls
AllocaOperation and MallocOperation nodes, which produce memory states

Parameters

node	the node operating on memory

Returns: the Mod/Ref set of the node.

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 686 of file RegionAwareModRefSummarizer.cpp.

◆ GetThetaModRef()

const ModRefSet & jlm::llvm::aa::RegionAwareModRefSummary::GetThetaModRef ( const rvsdg::ThetaNode & theta ) const

inlineoverridevirtual

Provides the set of memory nodes that should be routed in and out of a theta node

Parameters

theta the theta node

Returns: the Mod/Ref set for the theta

Implements jlm::llvm::aa::ModRefSummary.

Definition at line 704 of file RegionAwareModRefSummarizer.cpp.

◆ hasSetForNode()

bool jlm::llvm::aa::RegionAwareModRefSummary::hasSetForNode ( const rvsdg::Node & node ) const

inline

Definition at line 602 of file RegionAwareModRefSummarizer.cpp.

◆ markSetAsCallingExternalFunction()

bool jlm::llvm::aa::RegionAwareModRefSummary::markSetAsCallingExternalFunction ( ModRefSetIndex index )

inline

Definition at line 540 of file RegionAwareModRefSummarizer.cpp.

◆ markSetAsModifyingExternal()

bool jlm::llvm::aa::RegionAwareModRefSummary::markSetAsModifyingExternal	(	ModRefSetIndex	index,
		size_t	minSize
	)

inline

Definition at line 534 of file RegionAwareModRefSummarizer.cpp.

◆ markSetAsReferencingExternal()

bool jlm::llvm::aa::RegionAwareModRefSummary::markSetAsReferencingExternal	(	ModRefSetIndex	index,
		size_t	minSize
	)

inline

Definition at line 528 of file RegionAwareModRefSummarizer.cpp.

◆ NumModRefSets()

size_t jlm::llvm::aa::RegionAwareModRefSummary::NumModRefSets ( ) const

inlinenoexcept

Definition at line 508 of file RegionAwareModRefSummarizer.cpp.

◆ operator=()

RegionAwareModRefSummary & jlm::llvm::aa::RegionAwareModRefSummary::operator= ( const RegionAwareModRefSummary & )

delete

Member Data Documentation

◆ externModRefSet_

ModRefSetIndex jlm::llvm::aa::RegionAwareModRefSummary::externModRefSet_

private

The ModRefSet representing every effect external function calls may have on memory nodes. These effects include the possibility of external functions calling into local functions.

See also: getExternModRefSet()

Definition at line 747 of file RegionAwareModRefSummarizer.cpp.

◆ modRefSets_

std::vector<RegionAwareModRefSet> jlm::llvm::aa::RegionAwareModRefSummary::modRefSets_

private

All sets of ModRef information in the summary

Definition at line 740 of file RegionAwareModRefSummarizer.cpp.

◆ modRefSetsInFunction_

std::unordered_map<const rvsdg::LambdaNode *, std::vector<ModRefSetIndex> > jlm::llvm::aa::RegionAwareModRefSummary::modRefSetsInFunction_

private

Lists ModRefSets grouped by the function of node they belong to.

Definition at line 752 of file RegionAwareModRefSummarizer.cpp.

◆ nodeMap_

std::unordered_map<const rvsdg::Node *, ModRefSetIndex> jlm::llvm::aa::RegionAwareModRefSummary::nodeMap_

private

Map from nodes that have memory side effects, to their ModRefSet. Includes nodes like loads, stores, memcpy, free and calls. Also includes structural nodes like gamma, theta and lambda.

Definition at line 759 of file RegionAwareModRefSummarizer.cpp.

◆ pointsToGraph_

const PointsToGraph& jlm::llvm::aa::RegionAwareModRefSummary::pointsToGraph_

private

Definition at line 735 of file RegionAwareModRefSummarizer.cpp.

The documentation for this class was generated from the following file:

jlm/llvm/opt/alias-analyses/RegionAwareModRefSummarizer.cpp

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ RegionAwareModRefSummary() [1/2]

◆ RegionAwareModRefSummary() [2/2]

Member Function Documentation

◆ addExplicitMemoryNodeToSet()

◆ addMemoryNodeToSet()

◆ Create()

◆ createModRefSet()

◆ getAllSetsInFunction()

◆ getExternModRefSet()

◆ GetGammaEntryModRef()

◆ GetGammaExitModRef()

◆ GetLambdaEntryModRef()

◆ GetLambdaExitModRef()

◆ getModRefSet() [1/2]

◆ getModRefSet() [2/2]

◆ getModRefSetDebugString()

◆ getOrCreateSetForNode()

◆ GetPointsToGraph()

◆ getSetForNode()

◆ GetSimpleNodeModRef()

◆ GetThetaModRef()

◆ hasSetForNode()

◆ markSetAsCallingExternalFunction()

◆ markSetAsModifyingExternal()

◆ markSetAsReferencingExternal()

◆ NumModRefSets()

◆ operator=()

Member Data Documentation

◆ externModRefSet_

◆ modRefSets_

◆ modRefSetsInFunction_

◆ nodeMap_

◆ pointsToGraph_
